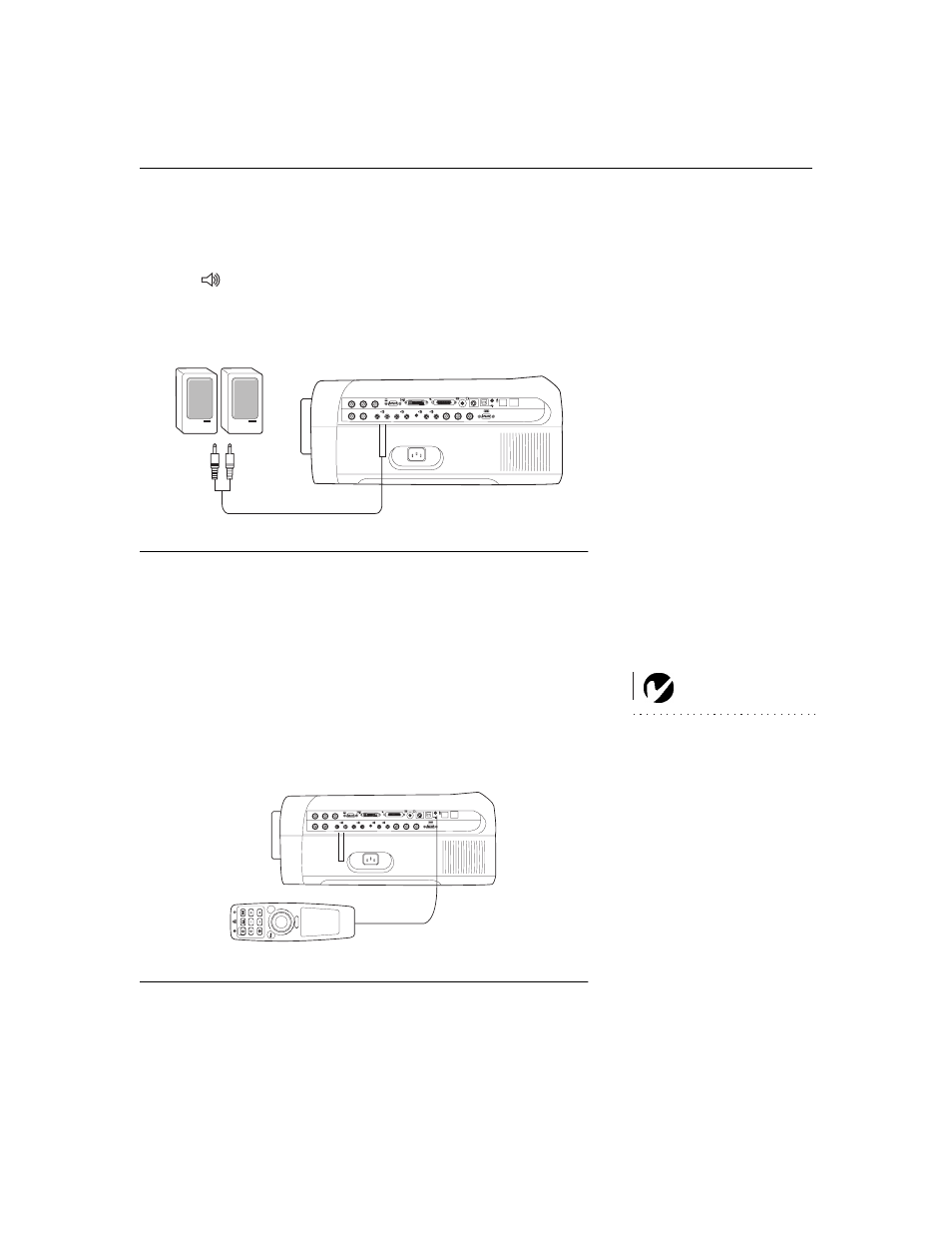

Connecting External Speakers
To connect one or two external speakers, plug the speaker cable
into the
out (audio out) connectors on the projector. The
external speaker’s volume is controlled by the projector; see “Vol-
ume + or -” on page 26.
F
IGURE
13
Connecting external speakers
Connecting the Remote Control Cable
If the projector cannot receive the remote’s signal, as may be the
case if you’re using rear projection, connect the remote directly to
the projector with the optional remote cable. See “Optional
Accessories” on page 50.
NOTE: For more information on
using the remote, see page 22.
1
Plug the remote cable into the wired remote connector on the
projector.
2
Plug the other end into the connector on the remote.
F
IGURE
14
Connecting the remote control cable
