Appendix A
ECG Interface
Optional ECG Interface Adapter
The optional ECG Interface Adapter (Fluke Biomedical Part Number
2780512), shown in Figure A-1, is provided to aid in testing NIBP monitors
that use ECG signals to assist in the detection of the pressure pulses. The ECG
attachment is labeled with the five leads, RA, RL, LA, LL, and V, and is
attached to the ECG Interface Port.
RA
LA
LL
RL
V
fas21.eps

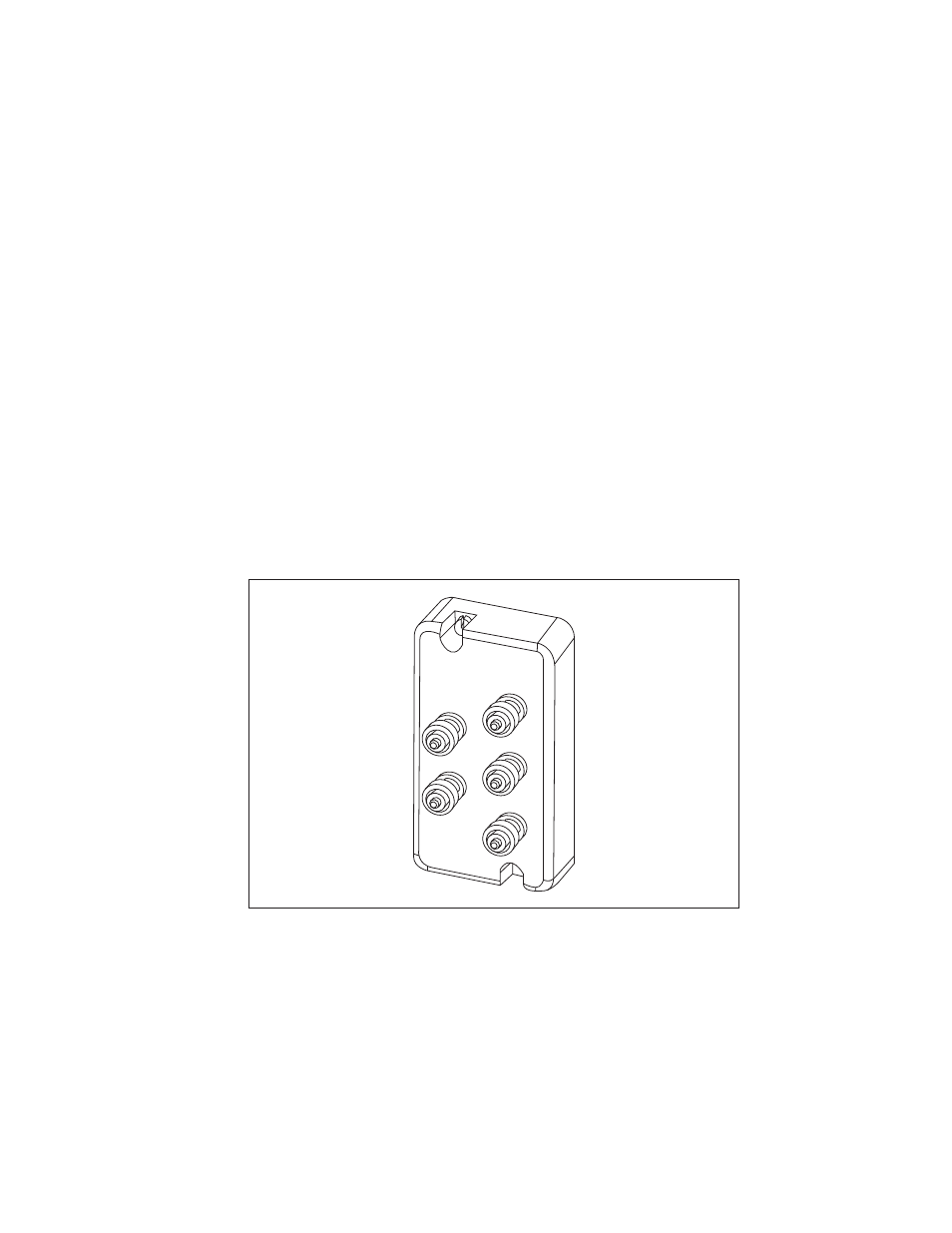

Figure A-1. Optional ECG Interface Adapter
Using the optional ECG Interface Adapter (Part Number 2780512), the
operator can observe simulated ECG signals that are in synchronization with
