Fluke Biomedical BP Pump 2 - Manual (Page 42)

BP Pump 2
Operators Manual
3-6
BP Pump 2
NON-INVASIVE BLOOD PRESSURE MONITOR ANALYZER
PRESSURE LEAK
1
PRESSURE RELIEF
TESTS AND SIMULATIONS
2
STATIC PRESSURE
3
STANDARD BP
NEONATE WRIST
PRESSURE PORT
USER DEFINED
ARRHYTHMIAS
4
PATIENT
CONDITIONS
5 6
9 8
RESPIRITORY ARTIFACT
7
0
ENT
120
93
8 0
8 0
N IBP Monitor
W rap C u ff
aro u nd Mandrel
Do ub le Hose: External C u ff
C u ff
fas19.eps

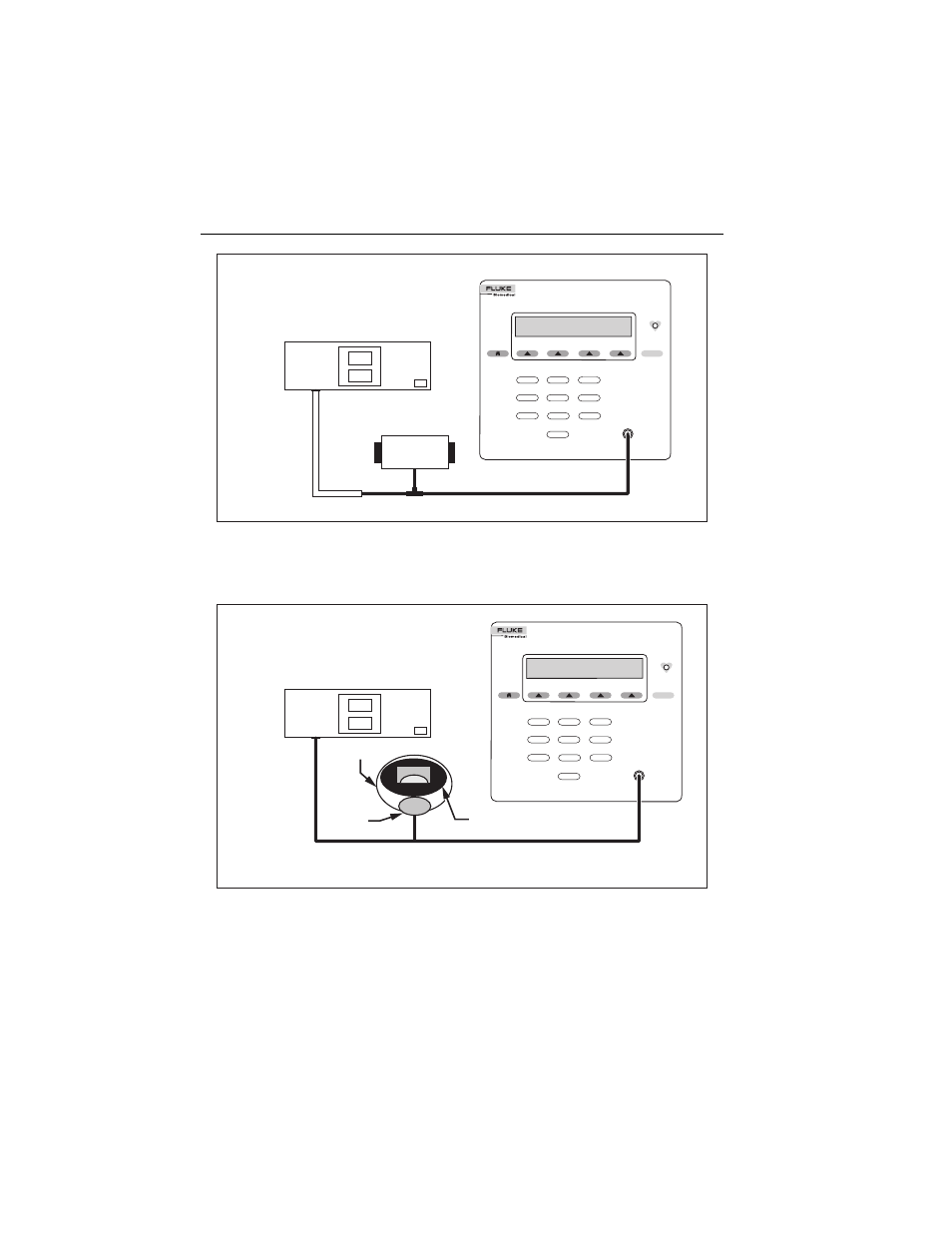

Figure 3-5. Connecting Tester to Double-hose NIBP Monitor
(Ext Cuff)
BP Pump 2
NON-INVASIVE BLOOD PRESSURE MONITOR ANALYZER
PRESSURE LEAK
1
PRESSURE RELIEF
TESTS AND SIMULATIONS
2
STATIC PRESSURE
3
STANDARD BP
NEONATE WRIST
PRESSURE PORT USER DEFINED
ARRHYTHMIAS
4
PATIENT CONDITIONS
5 6
9 8
RESPIRITORY ARTIFACT
7
0
ENT 120
93
8 0
8 0
N IBP Monitor
W rist C u ff
Bladder W rist Mandrel
Be s u re to attach the c u ff so that the b ladder is centered o v er the notch in the
mandrel insert.
Single Hose: External W rist C u ff
fas20.eps
Figure 3-6. Connecting Tester to Single-hose NIBP Wrist Monitor
(Ext Cuff)
