Nuclear Associates CLEAR-Pb Transparent
Operators Manual
2-2
Gonad Shield
Adult, Model 57-408: 6 ½" long x 1” wide x 1/16" thick. Has a shamrock-shaped, 0.030" thick lead shield
made up of three overlapping circles, each ½" diameter; weighs ½ oz.
Gonad Shield
Pediatric, Model 57-444: 6 ½" long x 1" wide x 1/16" thick. Has shamrock-shaped, 0.030" thick lead shield
made of three overlapping circles, each ¼' diameter; weighs ¼ oz. Also for imaging sacroiliac region of
adult female.
Filter AP/PA
(72” FFD)
AP/PA
(40” FFD)
Lateral
Thoracic
Lateral
Cervical
Model
No.
57-405 57-415 57-407 57-406
Applications
Full spine,
AP or PA
AP or oblique
esophagram
Lateral chest
Full spine,
AP or PA
Lat. full spine
Oblique or AP
esophagram
(obese patients)
Angiography of
neck, lower head
(may need 2
filters)
Lat. cerv. spine
Lat. full spine
(with 57-407 Filter)
Lateral aortic arch

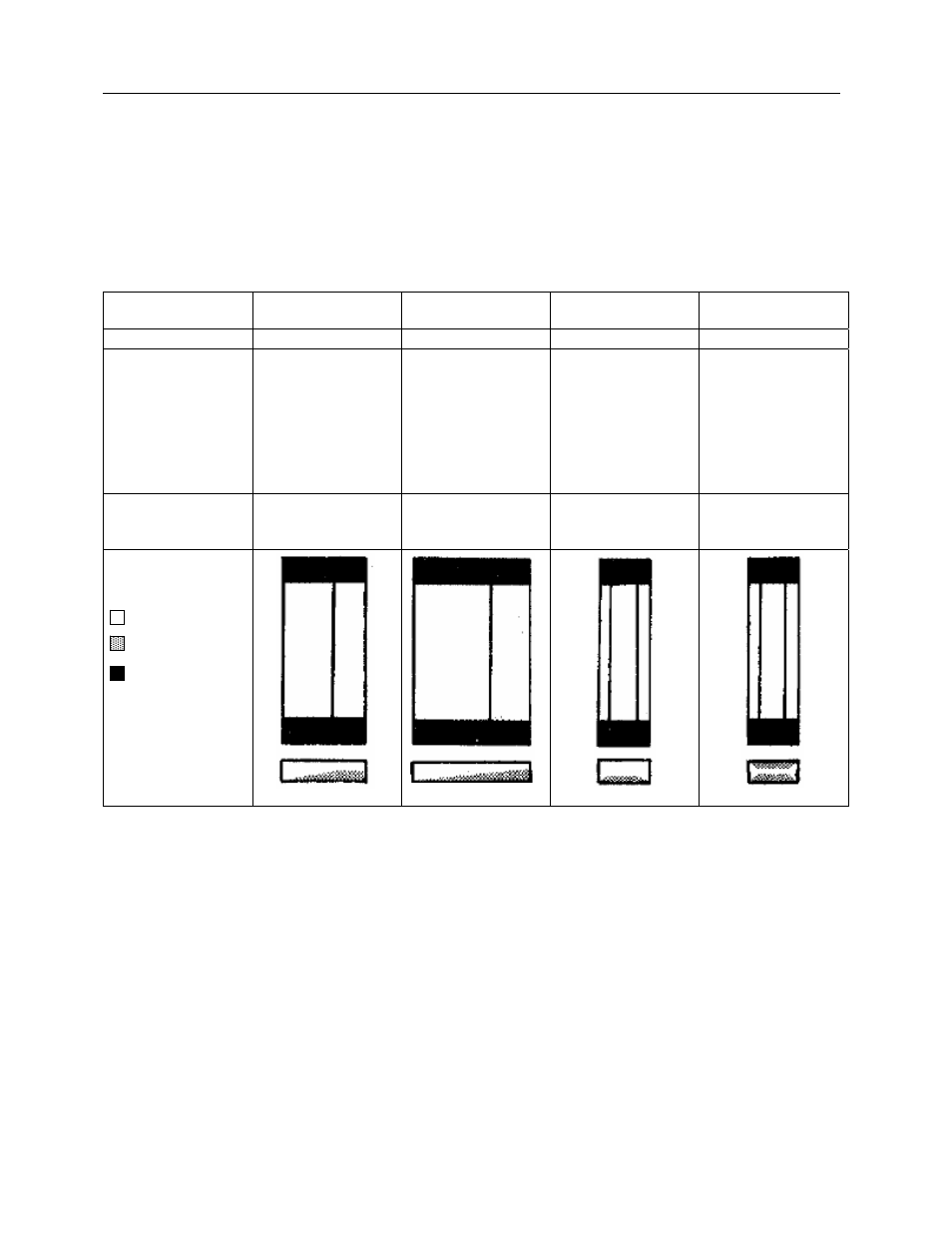

Length x Width
Max. Thickness
Trough Width
6.5” L x 2.25” W
0.1”
˙
6.5” L x 4.125” W
0.1”
˙
6.5” L x 1.25” W
0.15”
˙
6.5” L x 1.25” W
0.3”
˙
Configuration
Filter Materials
Plastic
Lead-Plastic
Magnetic Tape
