ELECTRICAL CHARACTERISTICS CURVES

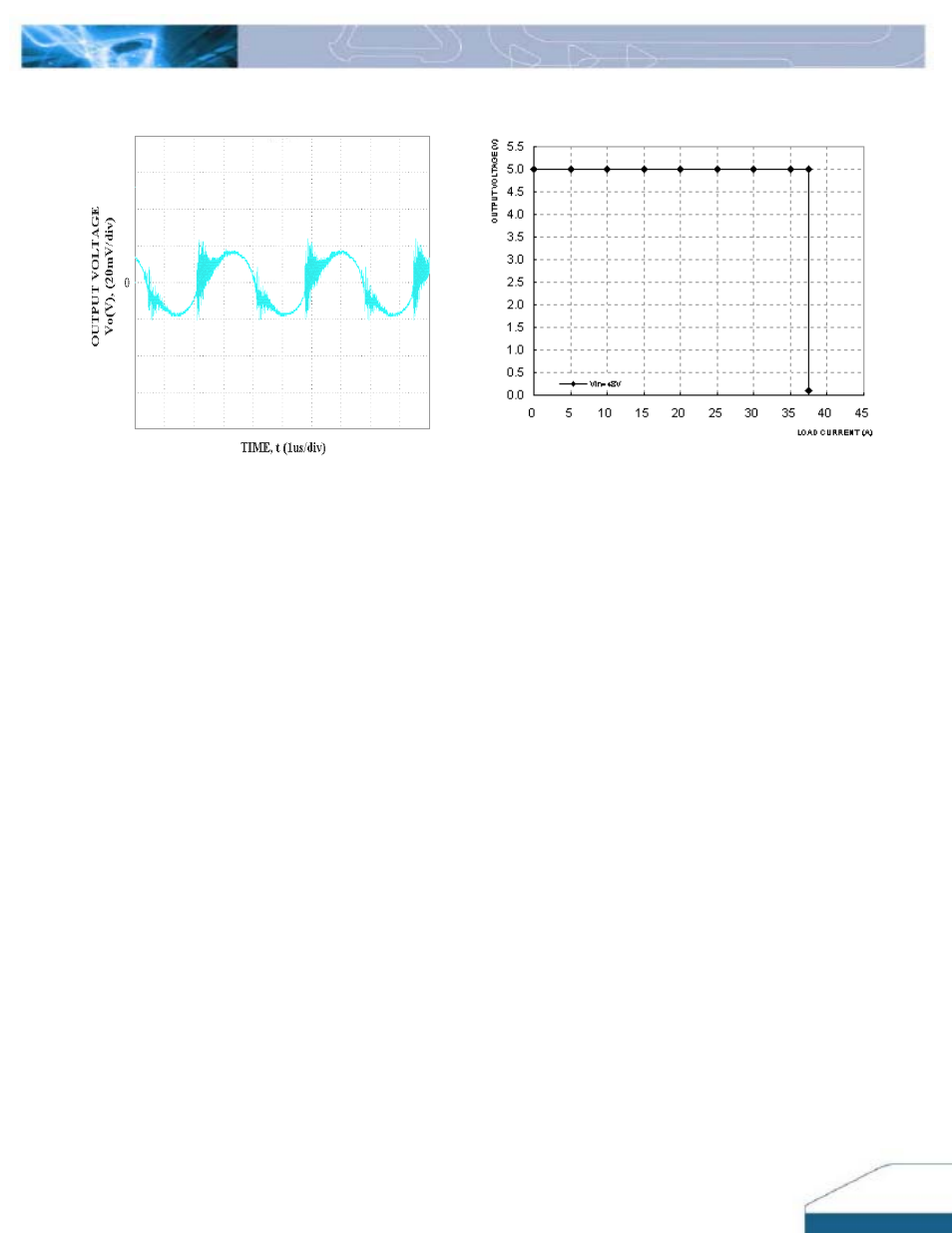

Figure 14: Output voltage ripple at nominal input voltage
(Vin=48V) and rated load current (Io=30A) (20 mV/div). Load
capacitance: 1µF ceramic capacitor and 10µF tantalum
capacitor. Bandwidth: 20 MHz. Scope measurement should be
made using a BNC
cable (length shorter than 20 inches).
Position the load between 51 mm and 76 mm (2 inches and 3
inches) from the module.
Figure
15:
Output voltage vs. load current showing typical
current limit curves and converter shutdown points.
DS_H48SV05030_08102007
7
