Thermal considerations, Thermal curves, Thermal testing setup – Delta Electronics H48SV User Manual

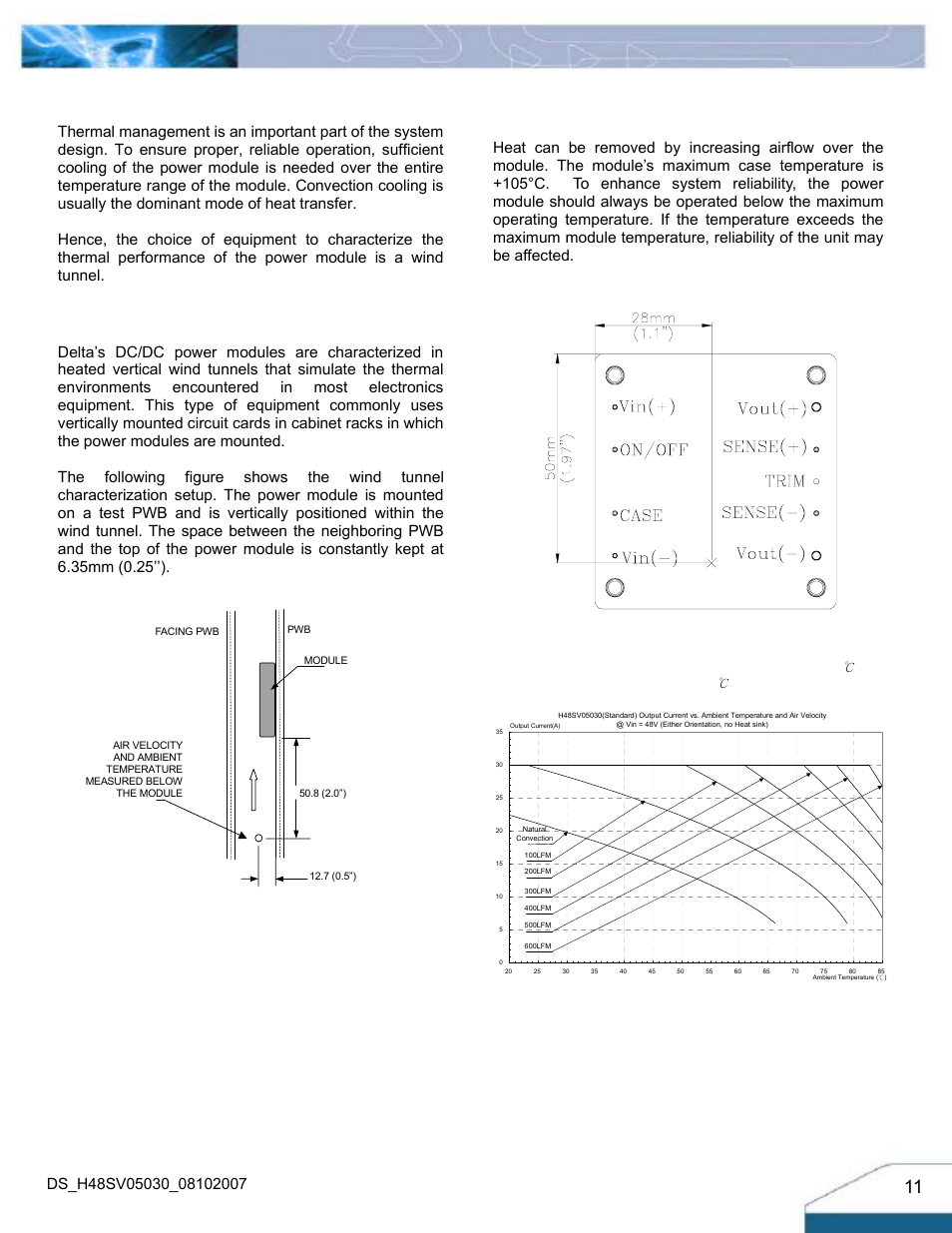

Page 11: Figure 20: wind tunnel test setup, Figure 21: hot spot temperature measured point, 48v, transverse orientation, no heat sink)
