ESPAÑOL

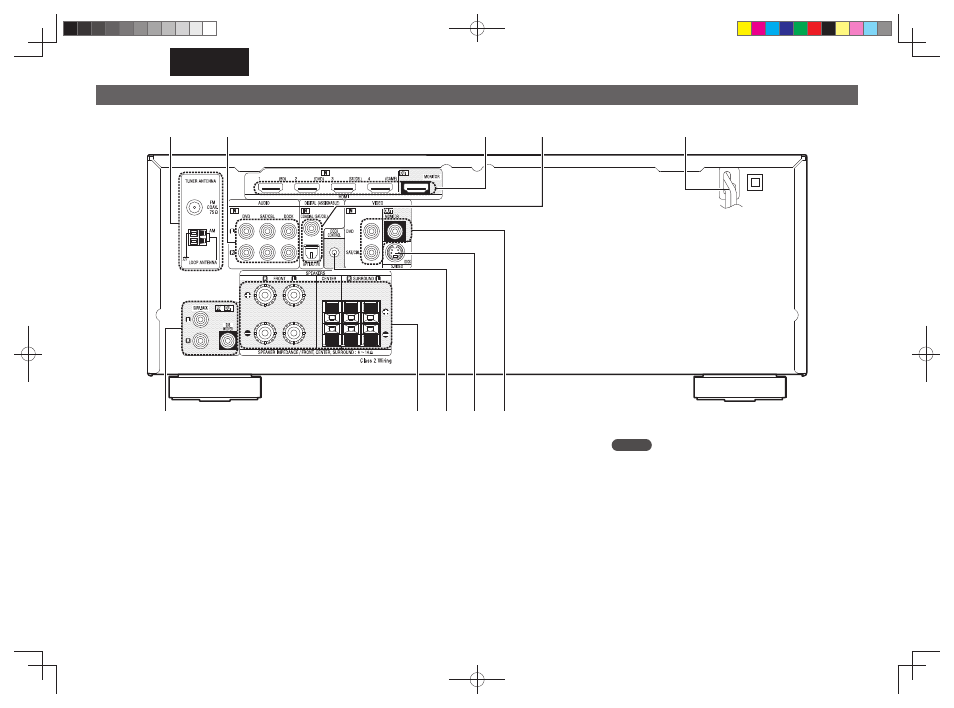

Panel trasero
Consulte la página que se indica entre paréntesis ( ).
q
w
e
t
r
y
i
u
o
Q0
q
Conectores PRE OUT ·························································· (5, 26)
w
Terminales de altavoces ····················································· (5, 26)
e
Conector DOCK CONTROL ····················································· (16)
r
Conector S-VIDEO ··································································· (16)
t
Conectores VIDEO ····························································· (13, 14)
y
Cable de alimentación ······························································ (5)
u
Conectores de audio digital ············································· (13, 14)
i
Conectores HDMI ···································································· (12)
o
Conectores de audio analógico ········································ (14, 16)
Q0
Terminales de antena FM/AM ··············································· (16)
NOTA
No toque los pines internos de los conectores en el panel trasero.
La descarga electrostática puede ocasionar daños permanentes a la
unidad.
