2.0 INSTALLATION
Mount the SMS-22 in a location where there is easy access to the analyzer and sensors. Install the
system in an area where vibrations, electromagnetic and radio frequency interference are minimized or
absent.
Do not mount in direct sunlight or areas of extreme heat. The SMS-22 is suitable for outdoor use if
mounted with a protective cover or sunshield.
Provide access to drain or atmospheric sample return. Sample Conditioning Cell overflow and spent
sample must drain to atmospheric pressure, no back pressure.
Reagents should be stored below the SMS – 22 or within 3 feet (1 meter) to either side.

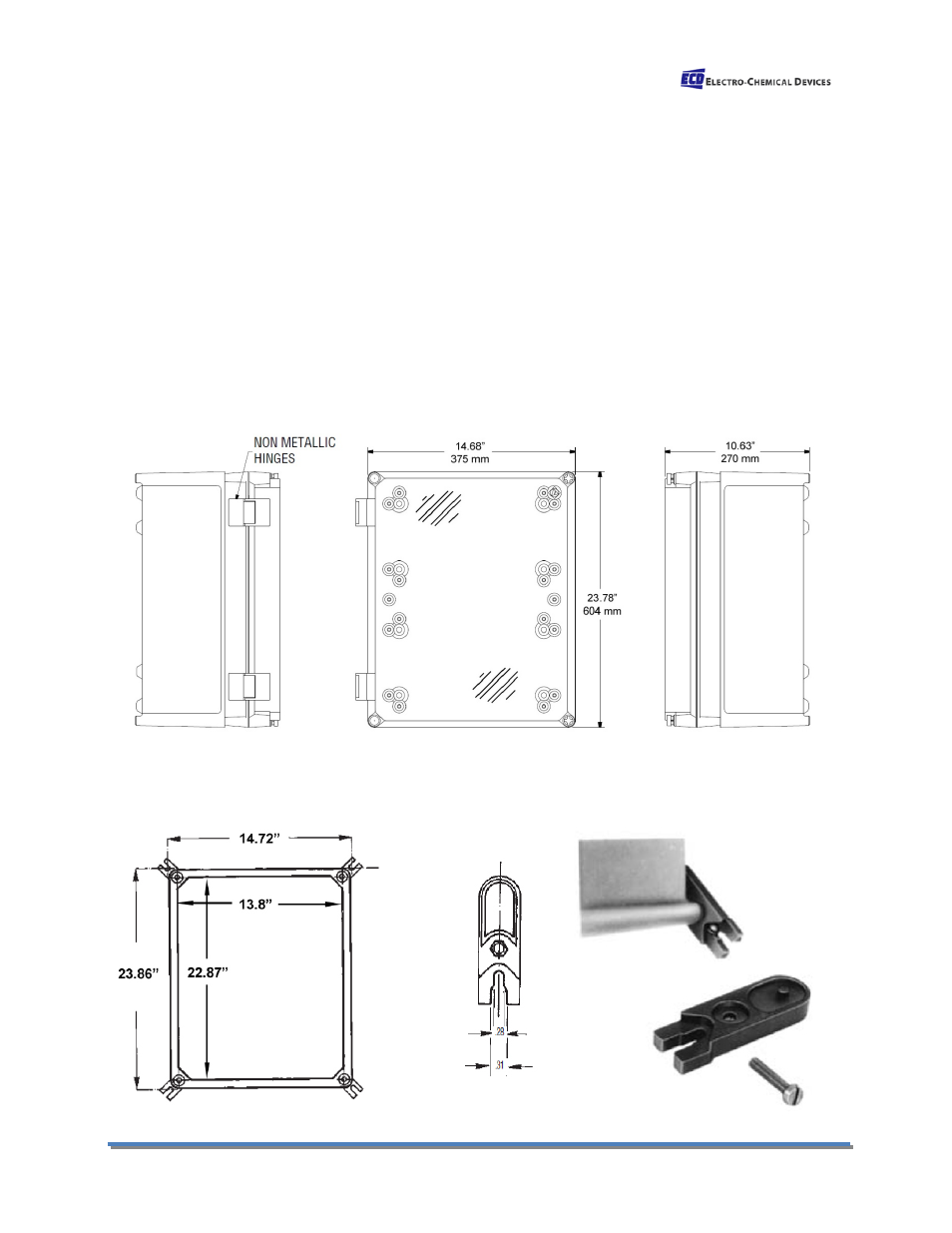

2.1 MOUNTING
The SMS-22 can be direct mounted through the four corner holes of the enclosure or by using the four
fiber glass reinforced polyamide brackets which are mounted directly to the rear of the box.
SMS-22 Page 4
