Electrical characteristics curves – Delta Electronics Series DNM04 User Manual
Page 6
DS_DNM04SIP10_07162008D
6

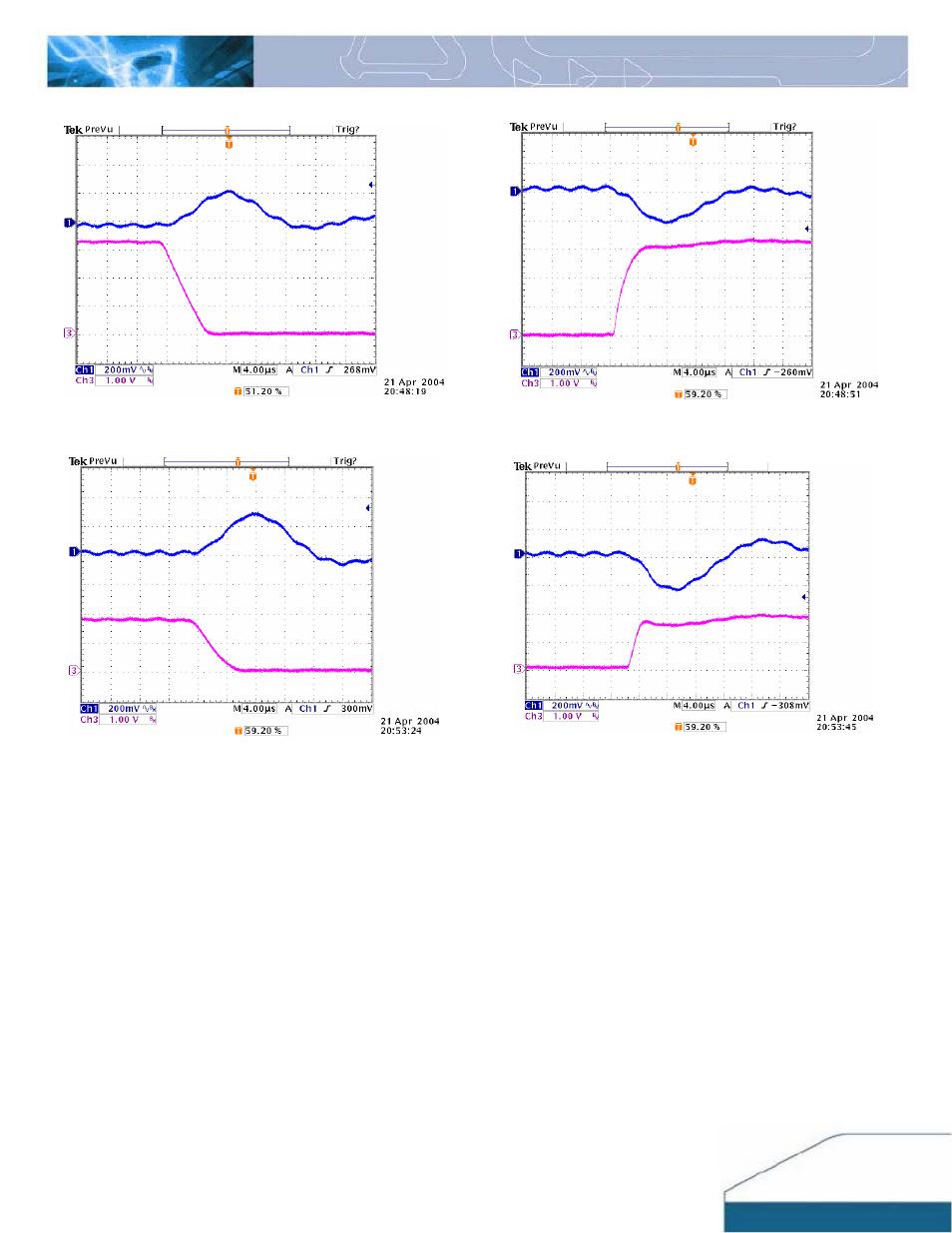

ELECTRICAL CHARACTERISTICS CURVES
Figure 19:
Typical transient response to step load change at
2.5A/μS from 100% to 50% of Io, max at 5Vin, 3.3Vout
(Cout = 1uF ceramic, 10μF tantalum)
Figure 20:
Typical transient response to step load change at
2.5A/μS from 50% to 100% of Io, max at 5Vin, 3.3Vout
(Cout =1uF ceramic, 10μF tantalum)
Figure 21:
Typical transient response to step load change at
2.5A/μS from 100% to 50% of Io, max at 5Vin, 1.8Vout
(Cout =1uF ceramic, 10μF tantalum)
Figure 22:
Typical transient response to step load change at
2.5A/μS from 50% to 100% of Io, max at 5Vin, 1.8Vout
(Cout = 1uF ceramic, 10μF tantalum)
