www.dfi .com
21
Chapter 2 Hardware Installation
Chapter 2

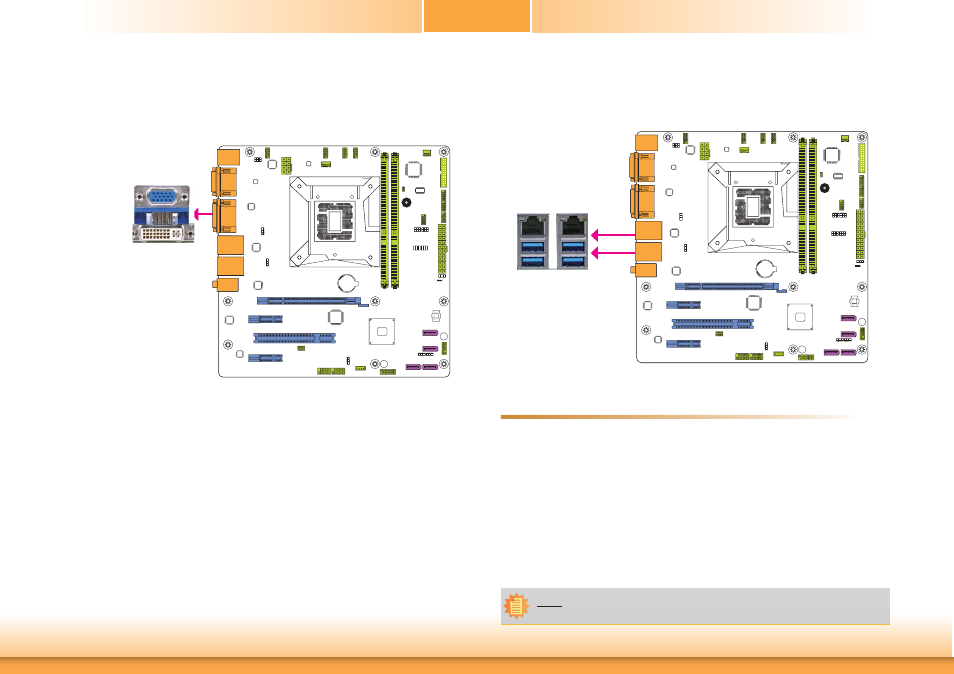

Graphics Interfaces
The display ports consist of the following:
• 2 VGA ports; or 1 VGA and 1 DVI-I ports
VGA Port
The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable
connector to the VGA port. After you plug the monitor’s cable connector into the VGA port,
gently tighten the cable screws to hold the connector in place.
DVI-I Port (DVI-D Signal)
The DVI-I port is used to connect an LCD monitor.
Connect the display device’s cable connector to the DVI-I port. After plugging the cable con-
nector into the port, gently tighten the cable screws to hold the connector in place.
BIOS Setting
Configure the display devices in the Chipset menu (“System Agent Configuration” submenu) of
the BIOS. Refer to the chapter 3 for more information.
COM2 COM1
VGA 1
RJ45 LAN Ports
Features
• 2 Intel ® 82574L Gigabit Ethernet Controllers; or
2 Intel ® I210 PCI Express Gigabit Ethernet controllers (optional)
The LAN ports allow the system board to connect to a local area network by means of a net-
work hub.
BIOS Setting
Configure the onboard LAN ports in the Chipset menu (“PCH-IO Configuration” submenu) of
the BIOS. Refer to the chapter 3 for more information.
Driver Installation
Install the LAN drivers. Refer to the chapter 4 for more information.
LAN 2
LAN 1
Note:
HD332-H81B supports 1 Intel ® 82574L Gigabit Ethernet controller (LAN 1) only.
COM2 COM1
LAN 2 LAN 1
VGA 2 or
DVI-I (DVI-D Signal)
