D-Link DFE-550TX Adapter
11
steps:
Adapter Function Test
1. Insert the DFE-550TX Software CD-ROM in an available
drive (here shown as CD-ROM drive ). At the DOS prompt
(here shown as >), key in:
DIAG.EXE

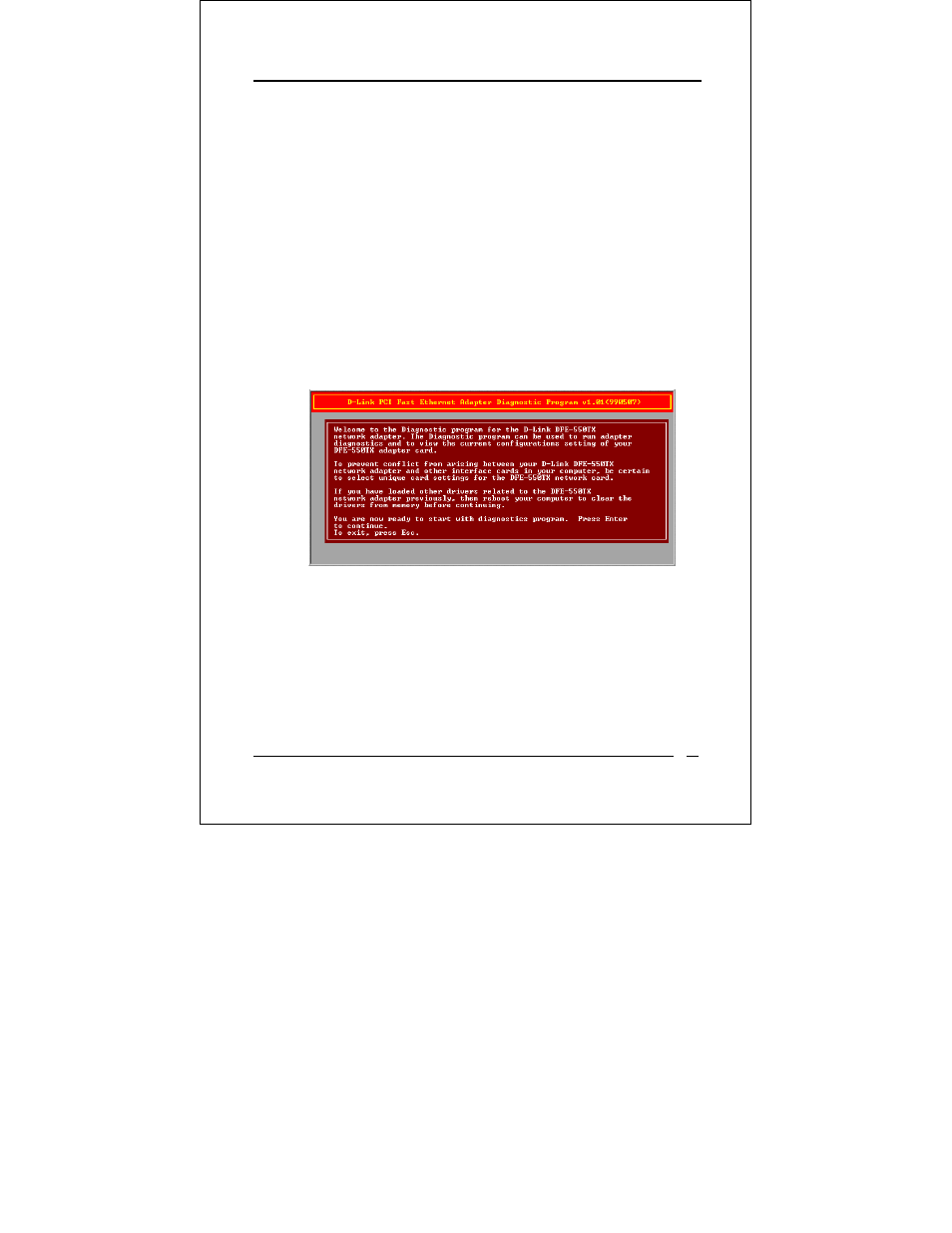

and . The opening screen of the Verification/
Diagnostic program will appear.
NOTE: Read the README.TXT , on the CD-ROM, to
choose the appropriate diagnostic program for
your operating system.
2. Review the reported configuration data before proceeding to
Step 3.
3. The Configuration Data screen also features a Diagnostic
Menu. Follow the cues at the foot of the screen to select
and run the Adapter Basic Diagnostic program. The
adapter function test results will appear onscreen. In the
Loopback test, test signals are intercepted and reflected at
the MAC level without reaching the network cable. If the
results are normal, then go ahead to the Network Operation
test, starting with Step 4.
