FEATURES

Š

High efficiency: 88%@ ±12.1V/2.7A

Š

Size: 57.9mm x 36.8mm x 9.7mm

(2.28”Ч1.45”Ч0.38”)

Š

Industry standard pin out

Š

Fixed

frequency

operation

Š

Input UVLO, Output OCP, OVP, OTP

Š

2250V

isolation

Š

No minimum load required

Š

Adjustable output voltage

Š

ISO 9001, TL 9000, ISO 14001, QS9000,

OHSAS18001 certified manufacturing

facility

Š

UL/cUL 60950-1 (US & Canada), and TUV

(EN60950-1) - pending

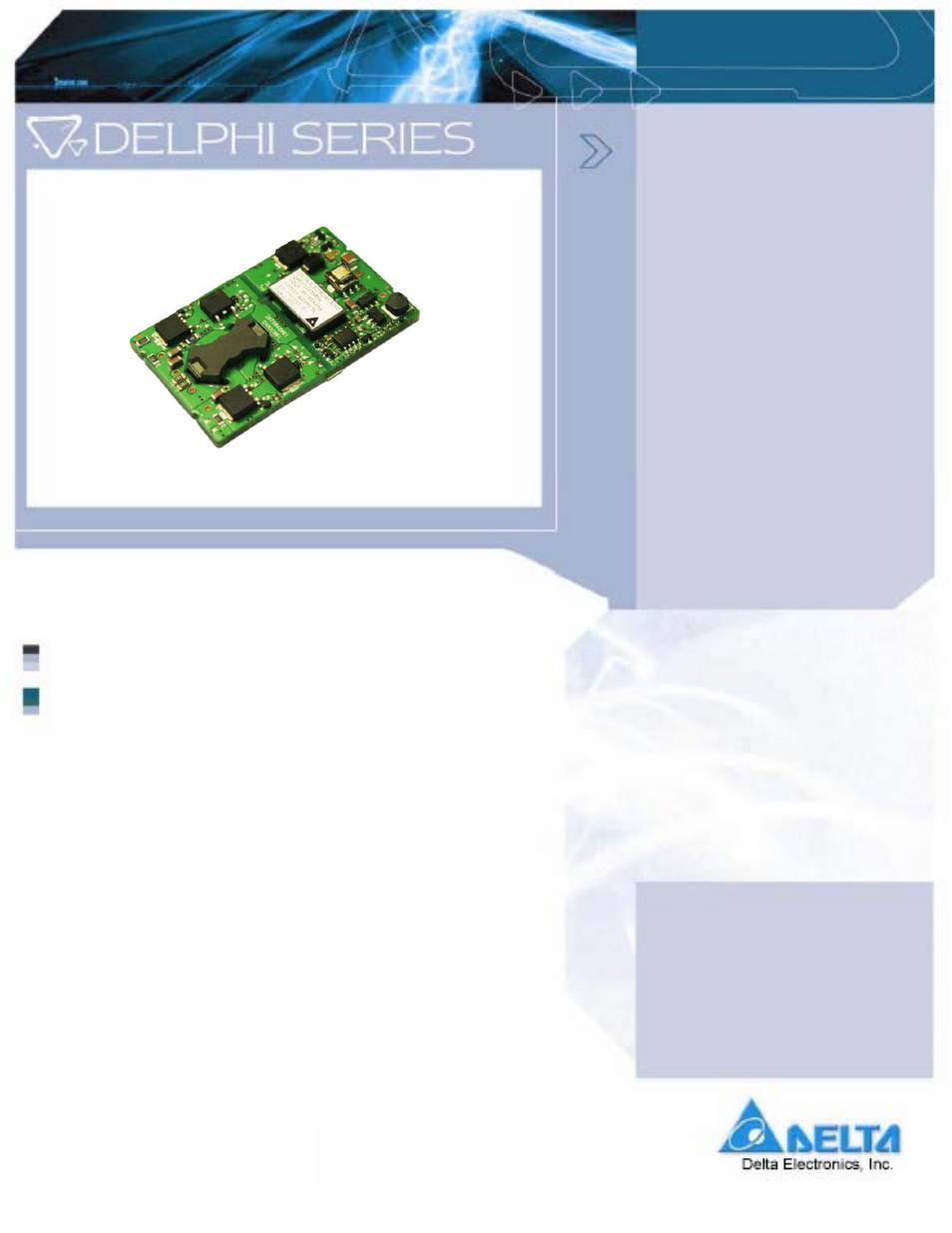

Delphi Series Q48DC, 65W Quarter Brick Dual Output

DC/DC Power Modules: 48V in,

±12.1V, 2.7A Output

The Delphi Series Q48DC second generation Quarter Brick, 48V
input, positive and negative bipolar dual output, and isolated DC/DC
converters are the latest offering from a world leader in power system
and technology and manufacturing ― Delta Electronics, Inc. The
Q48DC product family is the second generation in the bipolar dual
output series and it provides even more cost effective solution of
positive and negative bipolar output (output voltage is 12.1V) and up
to 65 watts of power in an industry standard quarter brick package
size. Both output channels can be used independently. With creative
design technology and optimization of component placement, these
converters possess outstanding electrical and thermal performance,
as well as extremely high reliability under highly stressful operating
conditions.

All models are fully protected from abnormal input/output

voltage, current, and temperature conditions. The Delphi Series
converters meet all safety requirements with basic insulation.

PRELIMINARY DATASHEET

DS_ Q48DC12003_03112008

OPTIONS

Š

Positive On/Off logic

Š

Output OVP hiccup available

APPLICATIONS

Š

Telecom / DataCom

Š

Wireless

Networks

Š

Optical

Network

Equipment

Š

Server and Data Storage

Š

Industrial / Test Equipment
