www.desatech.com 113101-01A 29
3. The thermostat sensing bulb may be located to
the lower right front side of fireplace. Determine
location of sensing bulb, but do not mount sens-
ing bulb until step 4. If you have a masonry fire-
place, see Figure 37 for location. If you have a
factory-built metal fireplace, see Figure 38 for
location. If your fireplace has glass doors, posi-
tion sensing bulb directly behind door gap on
right bottom side (see Figure 39).
4. The mounting clip must be a minimum of 3"
from bottom of fireplace to prevent crimping
of capillary. Once you have decided on a lo-
cation, clean the area thoroughly. Remove the
paper backing from the adhesive on back of
mounting clip. Press the clip into the new lo-
cation so that the thermostat sensing bulb will
be positioned vertically with the capillary at
the bottom (see Figure 40). Slide the thermo-
stat sensing bulb into the clip.
IMPORTANT:
Do not crimp capillary.
OPTIONAL POSITIONING
OF THERMOSTAT
SENSING BULB
Continued

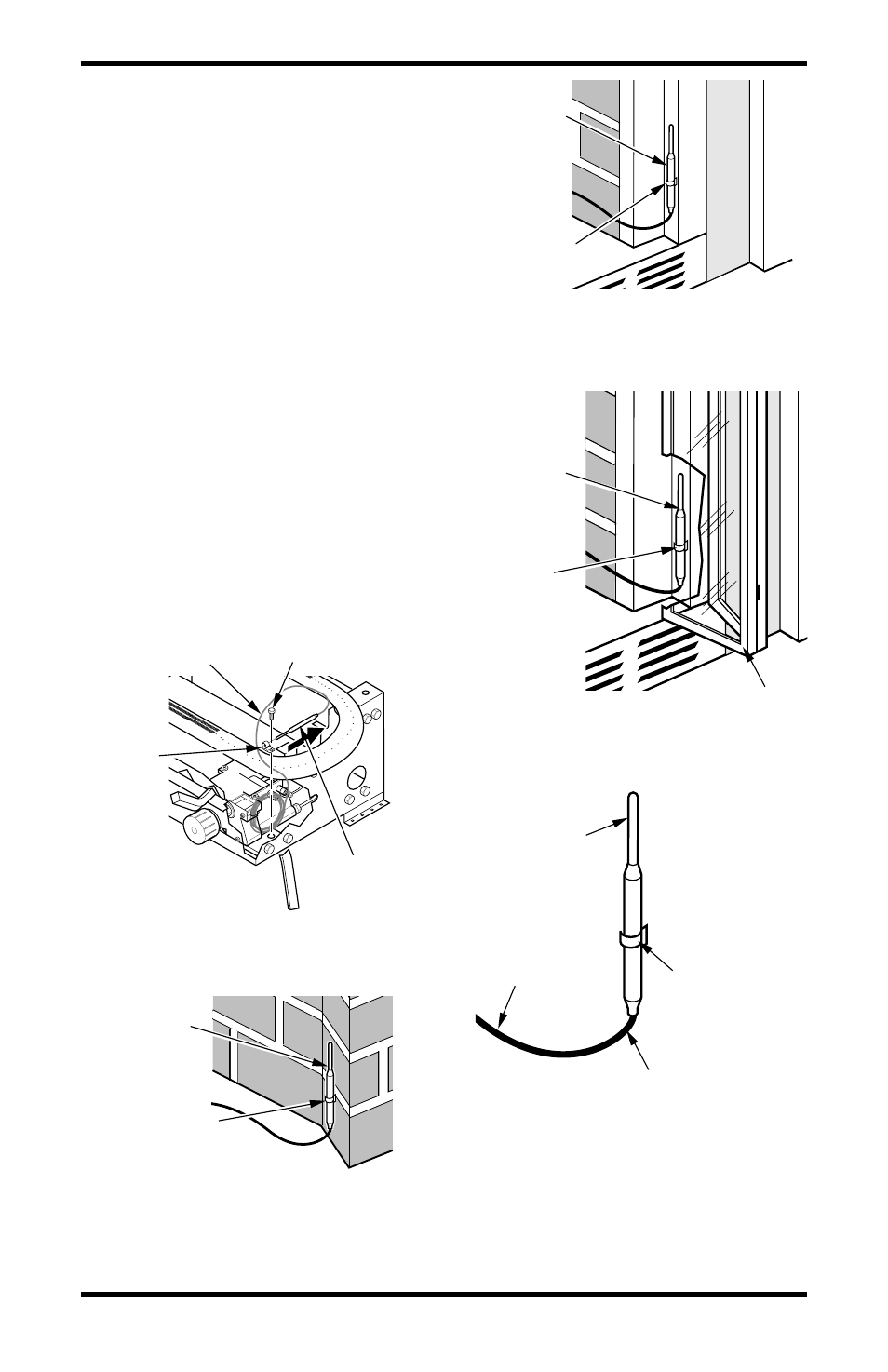

Figure 36 - Removing Thermostat
Sensing Bulb
Thermostat Screw
Thermostat
Sensing Bulb
Capillary
Retaining
Clamp
Adhesive-backed
Mounting Clip
Figure 37 - Locating Thermostat Sensing
Bulb on Masonry Fireplace
Thermostat
Sensing Bulb
;
;
;
;
Q
Q
Q
Q
Thermostat
Sensing Bulb
Figure 38 - Locating Thermostat Sensing
Bulb on Factory-built Metal Fireplace
Adhesive-backed
Mounting Clip
;
;
;
;
Q
Q
Q
Q
; Q ;
;
;
;
Q
Q
Q
Q
Glass Doors
Figure 39 - Installing Thermostat
Sensing Bulb behind Glass Doors
Thermostat
Sensing Bulb
Capillary
Thermostat
Sensing Bulb
Do Not Crimp
Capillary
Adhesive-
backed
Mounting Clip
Figure 40 - Positioning the Thermostat
Sensing Bulb in the Vertical Position
with the Capillary at the Bottom
Adhesive-
backed
Mounting Clip
