INSTALLATION
Mounting
The EIDX is designed for mounting in an industrial enclosure or wiring closet
using either set of the provided mounting hardware listed below:
TS-35 DIN Rail Mounting Panel Mounting
DIN rail clip Panel mounting bracket
M3x5 screws, flat-head (4) M3x5 screws, flat-head (4)
For quick snap-mounting to 35 mm DIN rail, a reinforced DIN rail clip is pre-
attached to the back of the EIDX enclosure with four M3x5 flat-head screws. If
the clip is removed, the EIDX can be panel-mounted by extending the top and
bottom brackets which are shipped in retracted position. The extended brackets
can then anchor the EIDX to a wall or other flat vertical surface with two #8

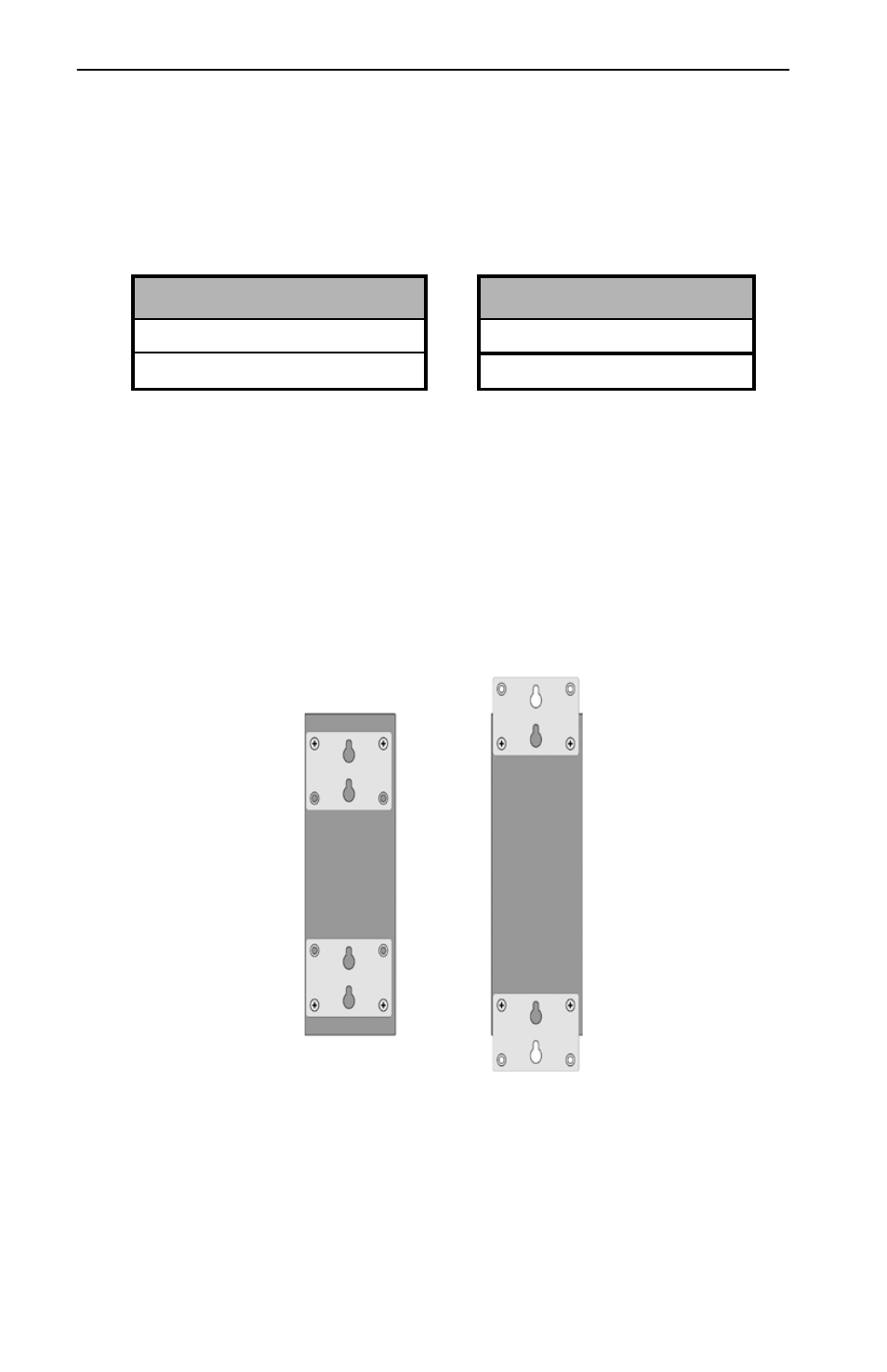

pan-head screws (not provided). The left illustration of Figure 3 shows a rear
view of the EIDX with brackets in retracted position. The right illustration of
Figure 3 shows the brackets extended and secured to the EIDX enclosure with
the same screws used in retracted position.
Figure 3 — Using the Panel-Mounting Brackets
