Page 57
57

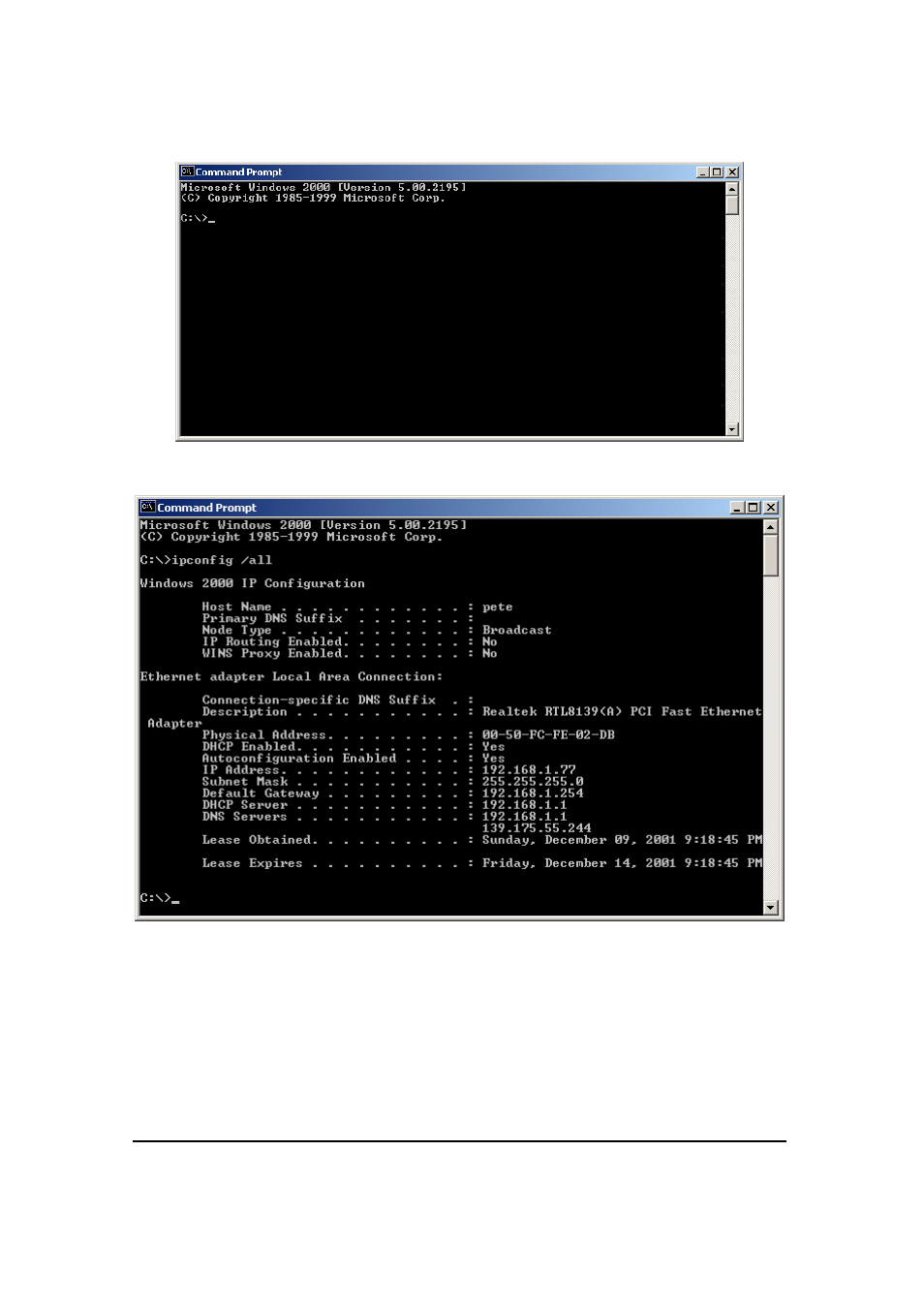

2) Type Ipconfig /all and
•
Your PC’s IP address is the one entitled IP address (192.168.1.77)
•
The router’s IP address is the one entitled Default Gateway (192.168.1.254)
•
Your PC’s MAC Address is the one entitled Physical Address (00-50-FC-FE-02-DB)
Glossary
Bridge: A bridge is an intelligent, internetworking device that forwards or filters packets between
different networks based on data link layer (MAC) address information.
Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP
address. When the device sends out an IP packet, if the destination is not on the same network,
