ConnectGear GR-104 - Manual (Page 38)

38

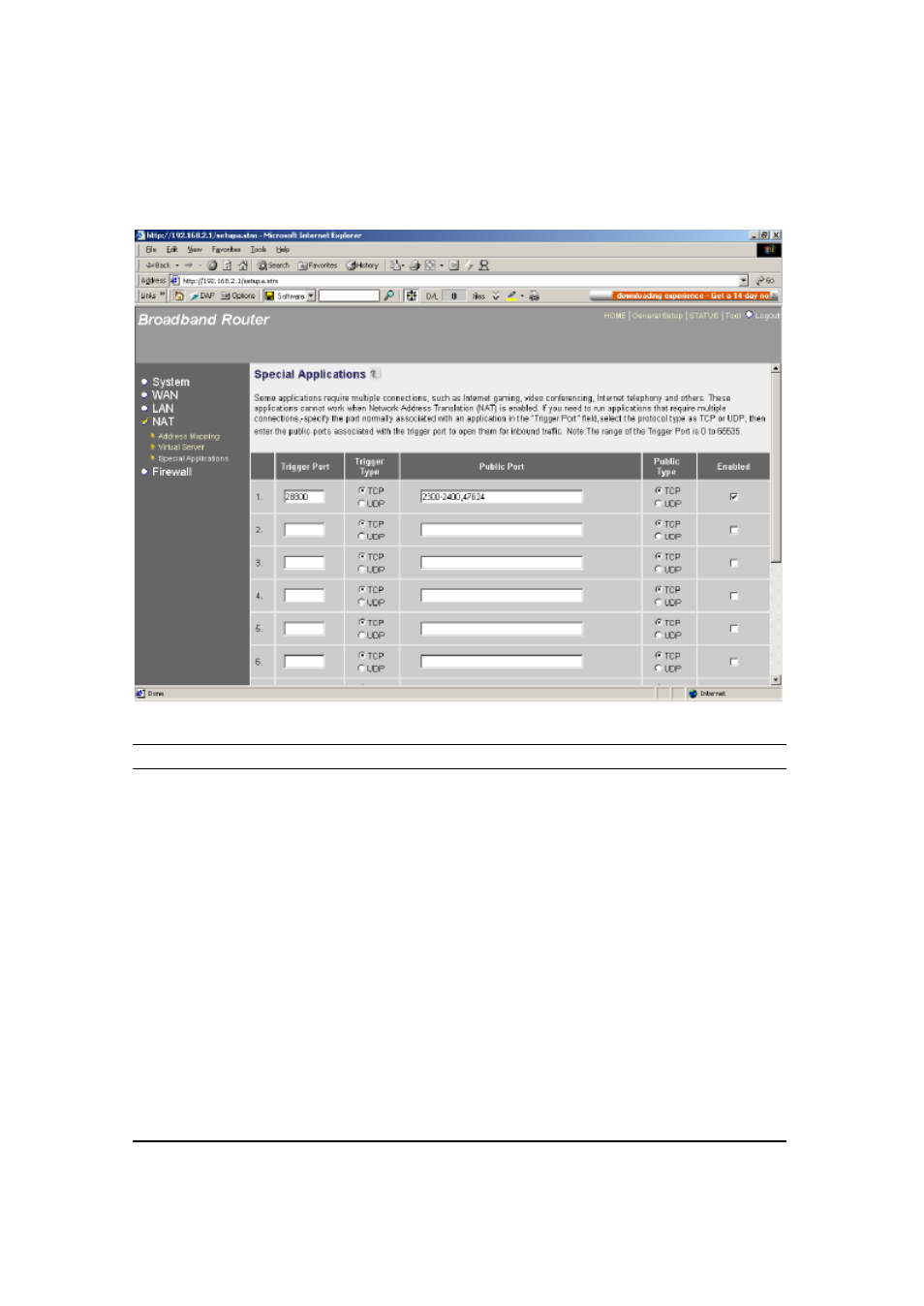

Some applications require multiple connections, such as Int ernet games, video conferencing,
Internet telephony and others. In this section you can configure the router to support multiple
connections for these types of applications.
Parameters
Description
Trigger Port
This is the out going (Outbound) port number for this particular
application
Note: The range of the Trigger Port is only from 0 to 65535.
Trigger Type
Select whether the outbound port protocol is TCP or UDP
Public Port
Enter the In-coming (Inbound) port or port range for this type of
application (e.g. 2300-2400, 47624)
Note: Individual port numbers are separated by a comma
(e.g. 47624, 5775, 6541 etc.). To input a port range use a “dash”
to separate the two port number range (e.g. 2300-2400)
Public Type
Select the Inbound port protocol type: TCP or UDP
