5 FX Series Quick Start Guide
Section: FX Series Installation Pattern (WCCP)
1.7 FX Series Installation Pattern (WCCP)
1.7.1 Cable the Appliance
Connect the eth2 (LAN) port to a switch or a router.
1.7.2 Configure the Appliance
Login to the appliance through the browser interface at:
http://{IP_address_of_the_appliance}:10000
6. Enter the default user name “comtech” and the
default password “comtech”.
a. Click Login.

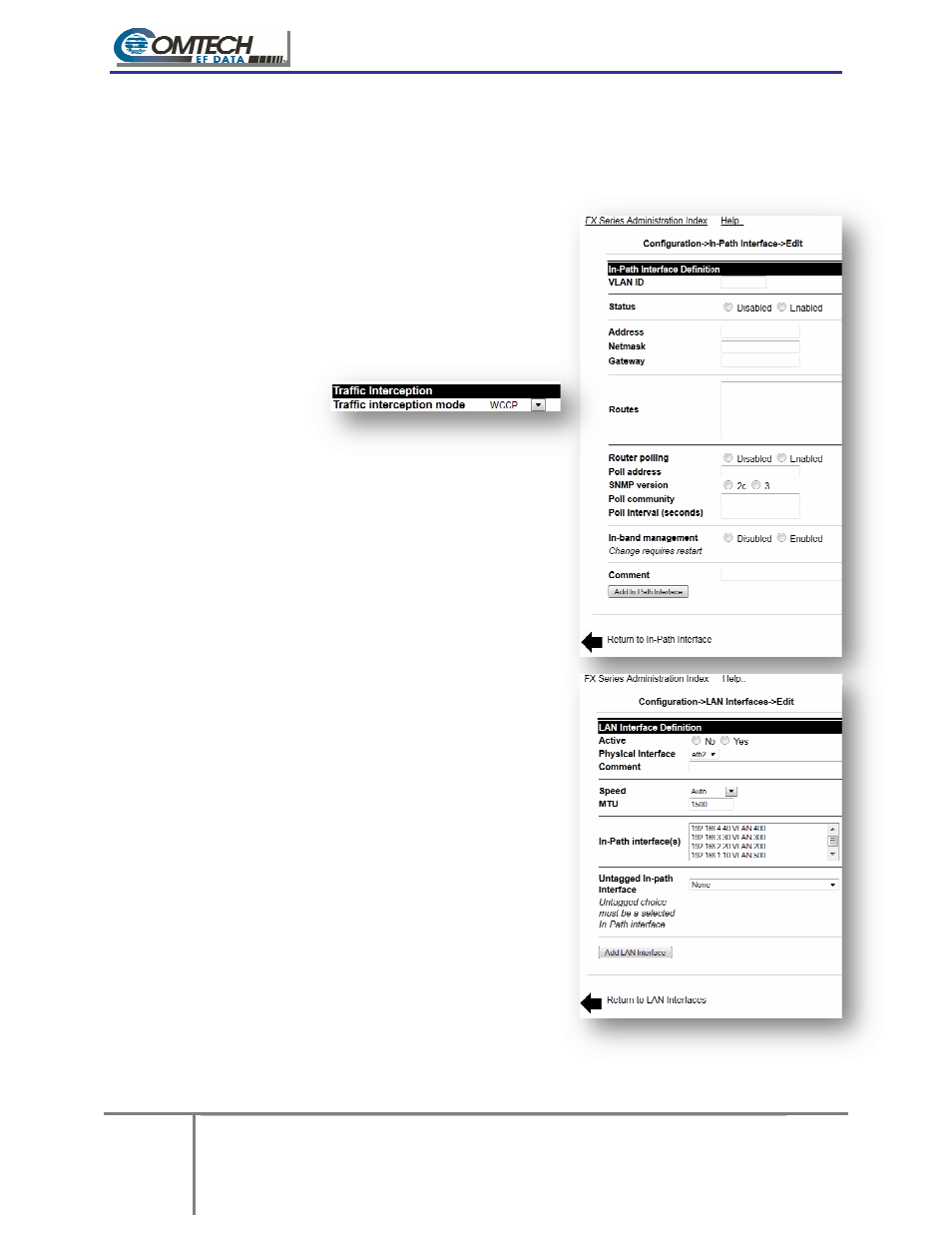

7. Click Configuration -> General Settings
c. Change “Traffic interception mode” to
“WCCP”
d. Click Save
8. Click In-Path Interfaces
a. Click the Add button to add a new in
interface.
• Enter the VLAN ID of 0.
• Enter the IP Address.
• Enter the Netmask
• Enter the Gateway
• Enter any static routes needed in the
“Routes” field.
b. Click “Add In-Path Interface”
c. Click the “Return to Configuration”
9. Click on LAN Interfaces.
a. Click on the “Add” button to add a new LAN
interface.
• Select “eth3” in the “Physical interface”
selection box.
• In the “In-Path Interface(s)” selection
box, click the IP address of the in
interface *see above*.
• In the “Untagged in
selection box, select the IP address of the
in-path interface *see above*.
b. Click “Add LAN Interface”.
c. Click the “FX Series Administration Index” link
at the top of the page.
d. Review and complete the configuration for
WCCP as shown on the next page.
NOTE: More information is available
of the FX Series Administration Guide v6.0.1
FX Series Quick Start Guide – Installation Patterns
Guide - Version 6.0 Rev 1
FX Series Installation Pattern (WCCP)
MN
For More information
[email protected]
http://www.comtechefdata.com/stampedeDocs.asp
FX Series Installation Pattern (WCCP)
) port to a switch or a router.
Login to the appliance through the browser interface at:
http://{IP_address_of_the_appliance}:10000
Enter the default user name “comtech” and the
default password “comtech”.
> General Settings
Change “Traffic interception mode” to
Click the Add button to add a new in-path
Enter the VLAN ID of 0.
Enter the IP Address.
Enter the Netmask
Enter the Gateway
Enter any static routes needed in the
“Routes” field.
Path Interface”
Click the “Return to Configuration” link
Click on the “Add” button to add a new LAN
Select “eth3” in the “Physical interface”
selection box.
Path Interface(s)” selection
box, click the IP address of the in-path
interface *see above*.
“Untagged in-path interface”
selection box, select the IP address of the
path interface *see above*.
Click “Add LAN Interface”.
Click the “FX Series Administration Index” link
at the top of the page.
Review and complete the configuration for
wn on the next page.
More information is available in the WCCP Section
of the FX Series Administration Guide v6.0.1 Section 5.3.
