CB 5 Series
Administrator Guide

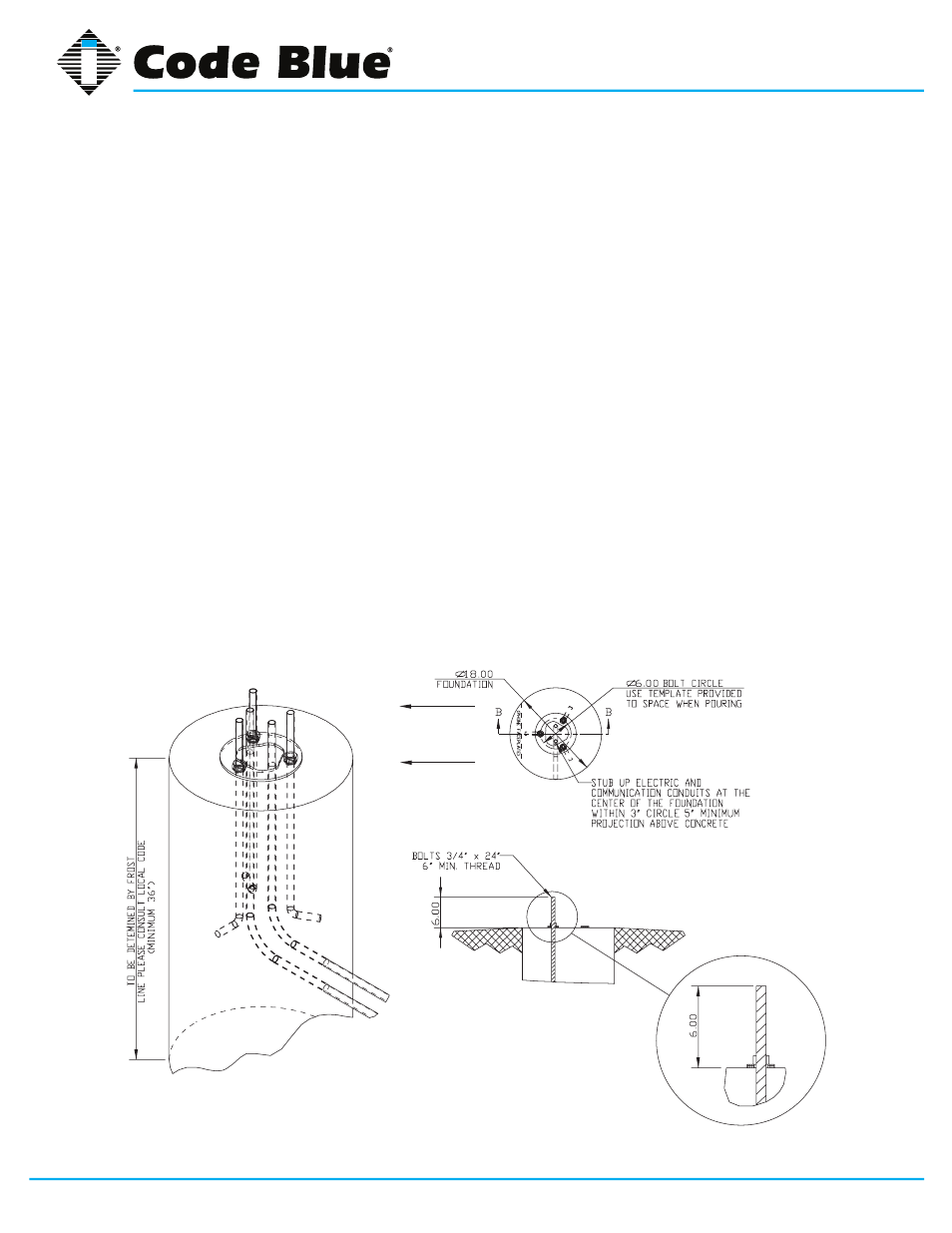

17 CB 5 Series Anchor Bolt Installation Instructions
1.0 FOUNDATION
1.1 Conduit – Electrical and telephone line conduit, with a maximum combined diameter of three
inches, should be run up through the center of the foundation hole. A minimum of four inches
and a maximum of six inches of conduit above the finished grade level is required. To ensure
proper grounding, a ½-inch x 8-foot copper rod should be inserted in the center of the founda-
tion and tied to the steel bollard. ( NOTE: Follow all national and local codes governing this
installation.)
1.2 Pour the Foundation – The foundation should be at least 18 inches in diameter and to the
correct depth for the frost line in your area, with a minimum depth of at least three feet. (Follow
your local building codes for foundations.)
1.3 Set the Anchor Bolts in the Wet Foundation – Three 24-inch L-shaped anchor bolts and an
aligning template are supplied for anchoring the Code Blue unit. The bolts should be set into
the foundation so that six inches are left showing above the finished grade level. The anchor
bolts should be aligned, using the supplied template, so the phone faceplate on the unit will
face in the desired direction.
2.0 WIRING
2.1 Pull power and phone line up through the conduits – A minimum of two feet of wire must
be available from the conduit for electrical and communications wiring.
PHONE
FACEPLATE
DIRECTION
All wiring must be installed and connected by experienced and certified personnel to meet
local and national electrical codes, and will include a service disconnect.
