10 - English

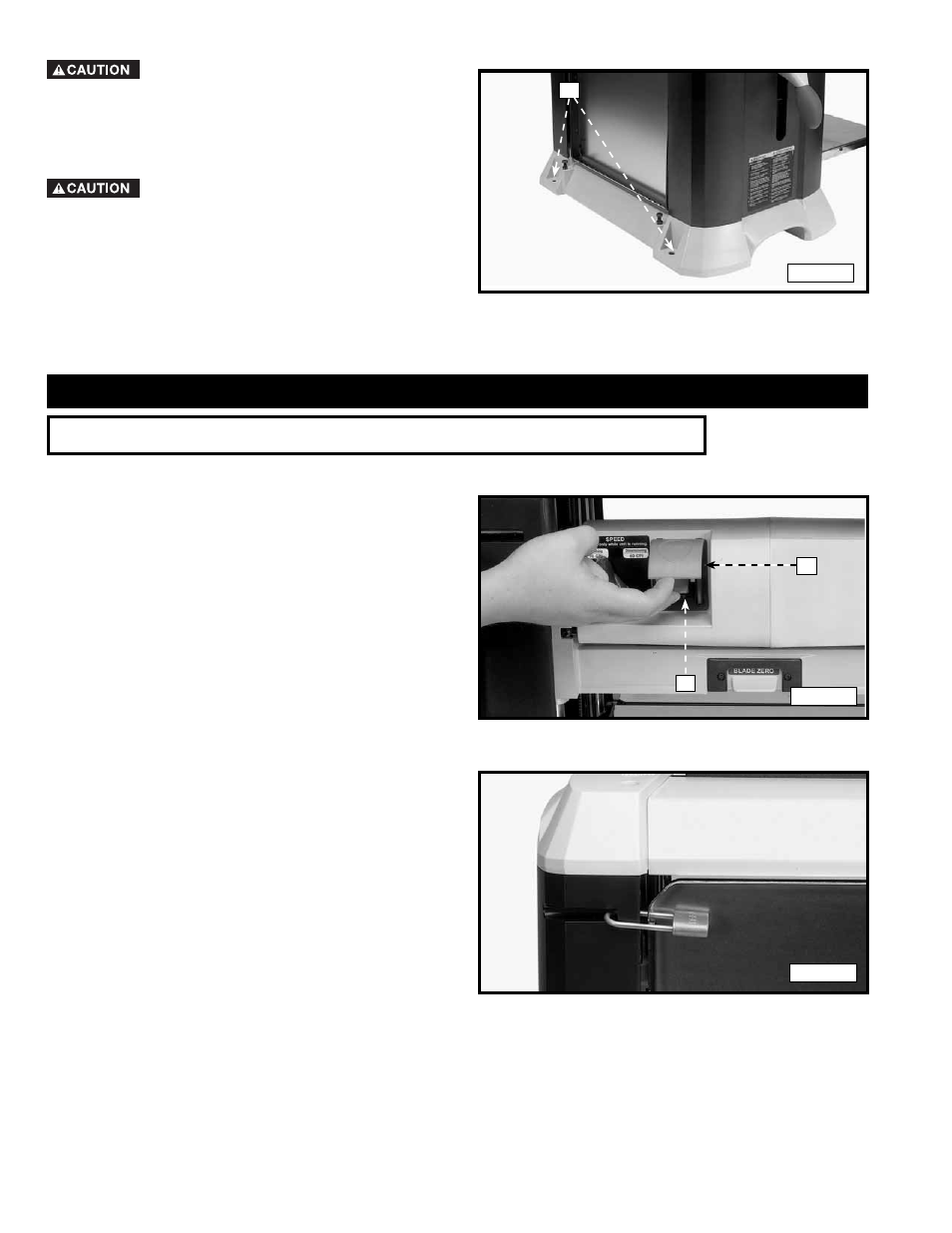

FASTENING PLANER TO SUPPORTING SURFACE
During operation, if there is any tendency
A
Fig. 9
for the planer to tip over, slide or “walk” across the
supporting surface, the planer must be secured to the
supporting surface. Four holes (two of which are at (A)
Fig. 9) are provided for this purpose.
Operate the planer on a flat, level surface.
If you attach the planer to one of the accessory stands
(models 50-326 or 50-322), align the four holes in the
base of the machine, two of which are shown at (A) Fig.
9, with the four holes in the top of the stand. Place the
carriage head flange bolt through the holes in the planer
and the stand. Thread the flange nut on the carriage head
flange bolt. Tighten it securely.
OPERATION
OPERATIONAL CONTROLS AND ADJUSTMENTS
STARTING AND STOPPING THE PLANER
The on/off switch Fig. 10 is located on the front of the
Fig. 10
A
B
planer motor. To turn the machine “ON”, move the
switch (A) up to the "ON" position. To turn the machine
“OFF”, push down on the switch shield (B) Fig. 10.
LOCKING THE SWITCH IN THE “OFF” POSITION
IMPORTANT: When the machine is not in use, the
Fig. 11
switch should be locked in the “OFF” position to prevent
unauthorized use. Raise the infeed table to the upright
position. Place a padlock with a 3/16" (4.7 mm) diameter
shackle through the hole in the left side of the planer
and through the infeed table (Fig. 11). Lock the padlock.
