4 GAS COOKING HOB
This appliance is Class 3
COOKING POINTS
1. Rapid burner (R) - 3,00 kW
2. Left semirapid burner (SR) - 1,75 kW
3. Right semirapid burner (SR) - 1,75 kW
4. Auxiliary burner (A) - 1,00 kW
CONTROL PANEL
5. Rapid burner control knob (1)
6. Left medium-speed burner control knob (2)
7. Right medium-speed burner control knob (3)
8. Auxiliary burner control knob (4)
9. Electric gas-lighting device. If the device is not installed, the appliance may be
provided with:
< a gas-lighter incorporated into the knobs (
$
symbol beside flame
max.heat/max. gas flow);
< no gas-lighter.
Important note:
If the appliance has a safety valve system fitted (beside every burner there is the
“T” probe as in Fig. 14 - not to confuse with the “S” electrode of the electric ignition)
the flow of the gas will be stopped if and when the flame should accidentally go out.
"
4

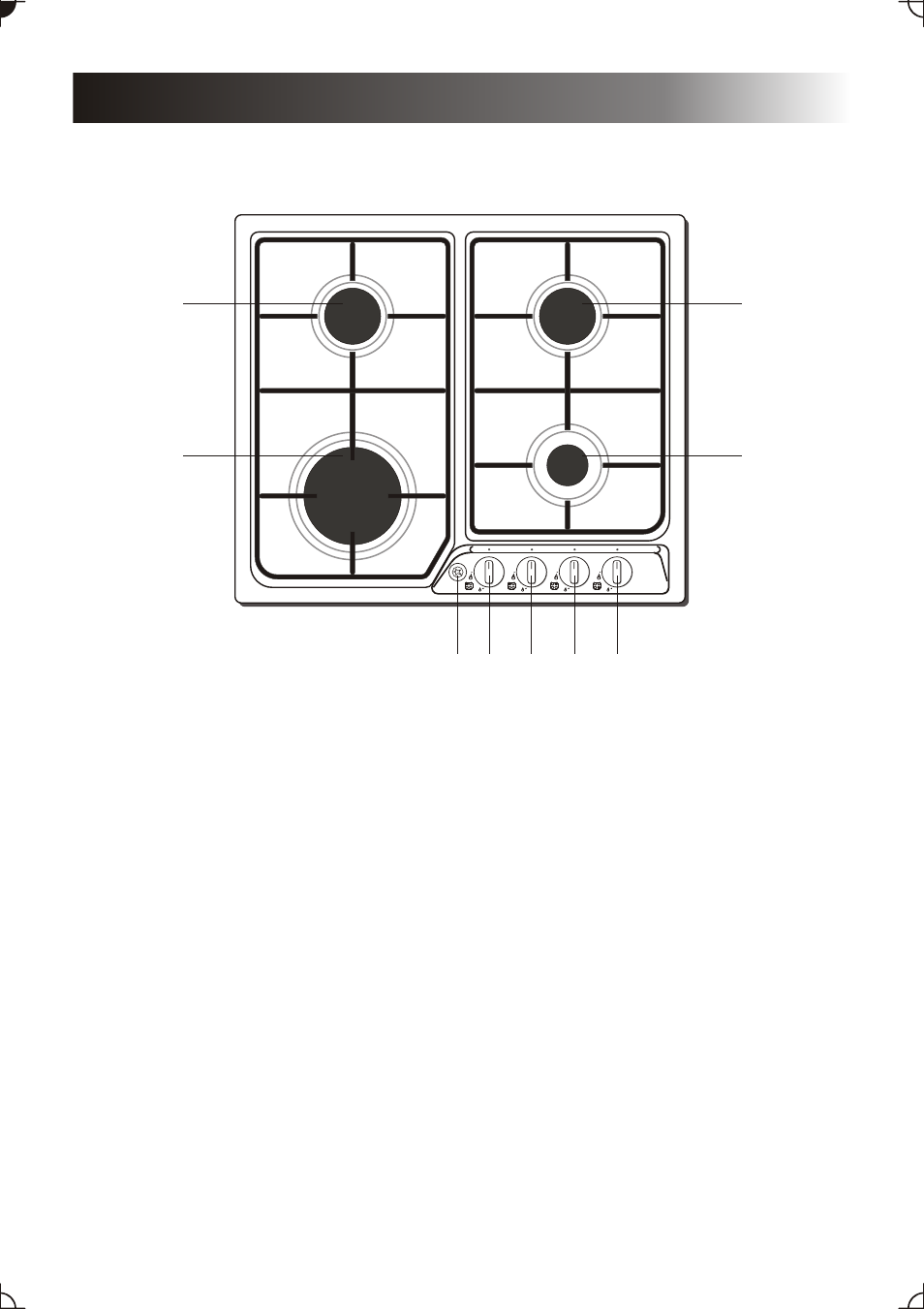

1. CHARACTERISTICS
1
2 3
4
9 5 6 7 8
Figure 1
