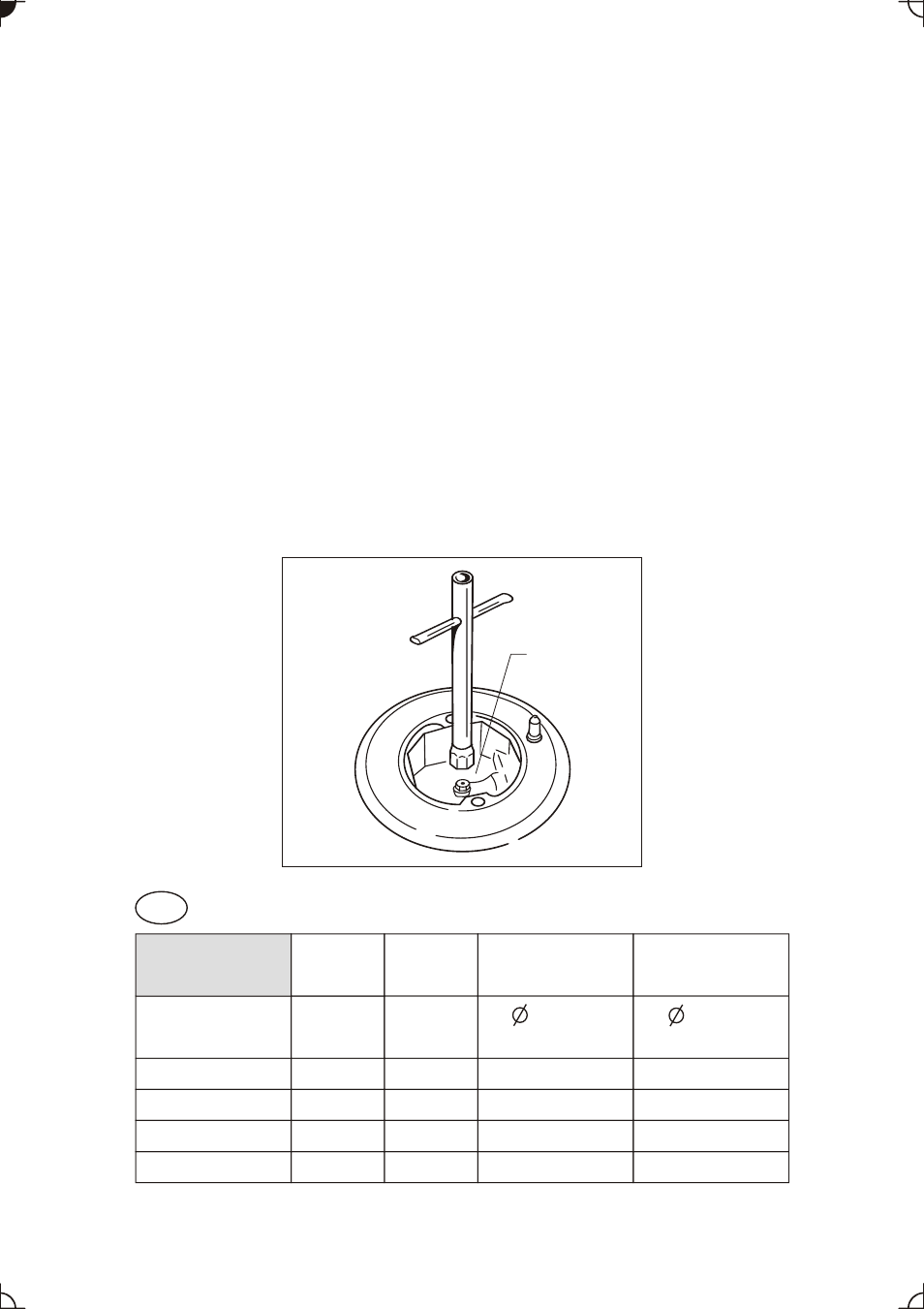

REPLACING THE BURNER INJECTORS
Every cooking hob is provided with a set of injectors for the various types of gas.
If the injectors are not supplied with the appliance they can be obtained from the
After-Sales Service.
Select the injectors to be replaced according to the table below.
The nozzle diameters, expressed in hundredths of a millimetre, are marked on the
body of each injector.
OPERATION TO BE PERFORMED WHEN SUBSTITUTING THE
INJECTORS
< Remove the gratings, the burner covers and the knobs.
< Using a wrench substitute the nozzle injectors “J” (figure 26) with those
most suitable for the kind of gas for which it is to be used.
The burners are conceived in such a way so as not to require the regulation
of the primary air.
J
Figure 26
G20
20 mbar
injector
[1/100 mm]
124
115
97
72
[Hs - kW]
0,30
0,45
0,75
1,50
Reduced
Power
1,00
1,75
3,00
3,30
Nominal
Power
[Hs - kW]
Triple-ring (TR)
Rapid (R)
Semirapid (SR)
Auxiliary (AUX)
BURNERS
Cat.:
II
2H3+
50
65
85
91
G30/G31
28-30/37 mbar
injector
[1/100 mm]
TABLE FOR THE CHOISE OF THE INJECTORS GB
