16
3 and 4 GAS COOKING HOBS
WITH TRIPLE RING BURNER
In order to install the cooker top into the
kitchen fixture, a hole with the
dimensions shown in figure 17 has to
be made, bearing in mind the following:
< within the fixture, between the
bottom side of the cooker top and
the upper surface of any other
appliance or internal shelf there
must be a clearance of at least 30
mm;
< the cooker top must be kept no less
than 100 mm away from any side
wall;
< the hob must be installed at least
35 mm from the wall;
< there must be a distance of at least
650 mm between the hob and any
wall cupboard or extractor hood
positioned immediately above;
< it is absolutely essential that you
place a separator
between the base
of the hob and the
drawer unit.
4 GAS COOKING HOBS
&
3 GAS COOKING HOBS
WITH 1 ELECTIC HOTPLATE
In order to install the cooker top into the
kitchen fixture, a hole with the
dimensions shown in figure 17 has to
be made, bearing in mind the following:
< within the fixture, between the
bottom side of the cooker top and
the upper surface of any other
appliance or internal shelf there
must be a clearance of at least 30
mm;
< the cooker top must be kept no less
than 100 mm away from any side
wall;
< the hob must be installed at least
35 mm from the wall;
< there must be a distance of at least
650 mm between the hob and any
wall cupboard or extractor hood
positioned immediately above;
< if the hob is not installed over a
built-in oven it is essential to
install a heat baffle between
the bottom of the hob and
the underlying unit;
< if the hob is installed over a
built-in oven, there must be
a distance of at least 30 mm
b e t w e e n t h e t w o
a p p l i a n c e s . T h e t w o
a p p l i a n c e s s h o u l d b e
connected to the gas
s u p p l y / e l e c t r i c p o w e r
supply with independent
connections, in compliance
with the current laws in
force.

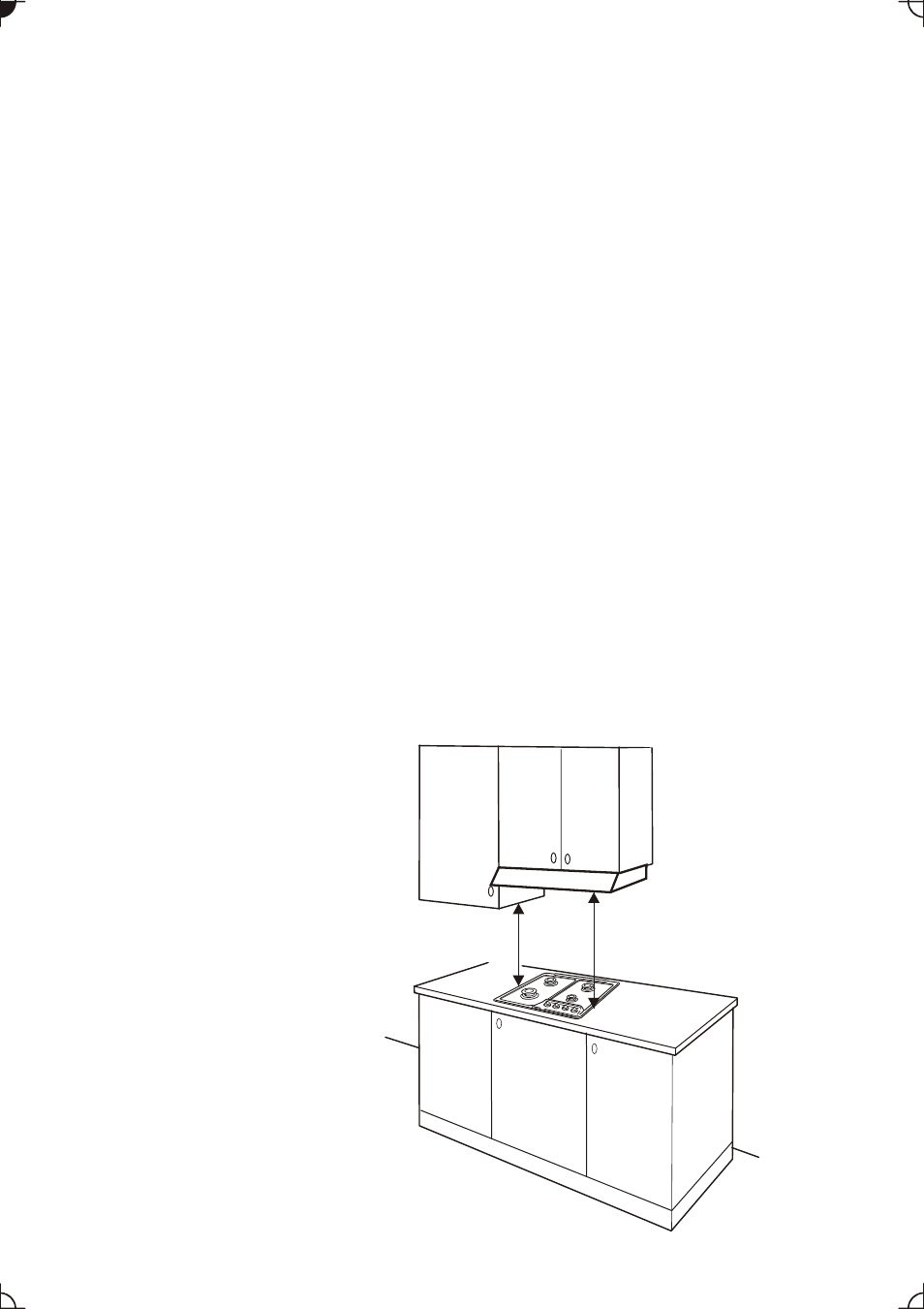

Figure 18
6
5
0
m
m
6
5
0
m
m
4
5
0
m
m
4
5
0
m
m
