44

D-Link DI-724GU User Manual

Section 3 - Configuration

Advanced

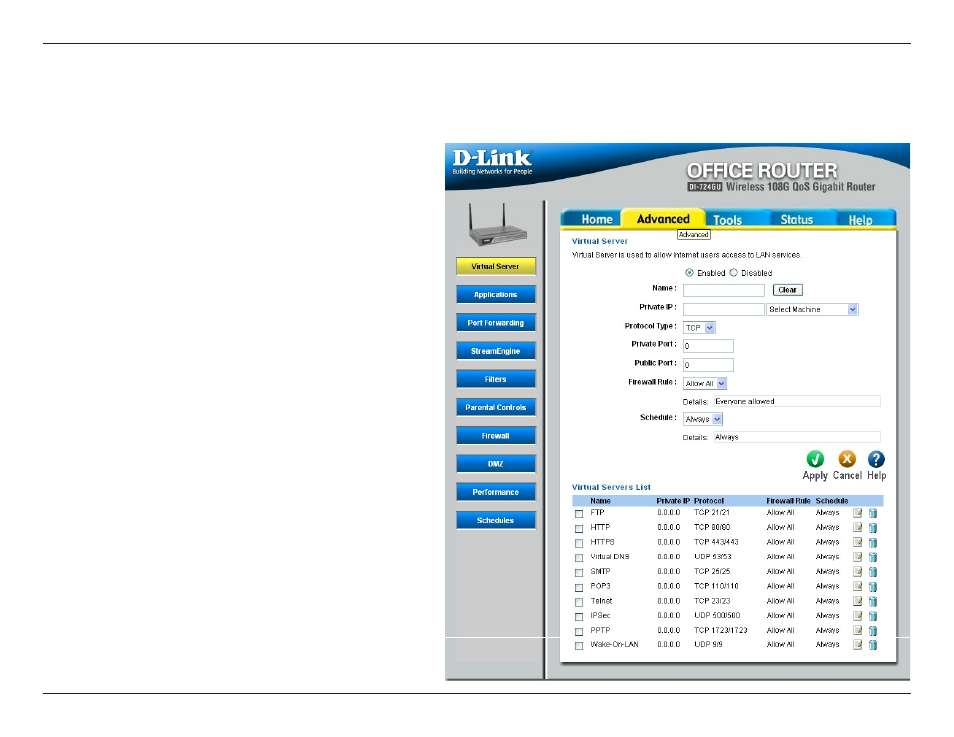

Virtual Server

Each list entry can be active or inactive,
according to this selection.

Assign a meaningful name to the virtual
server, for example Web Server.

Clicking this button erases edits you have
made to all items in the add/edit area of the
screen.

The IP address of the system on your internal
network that will provide the virtual service,
for example 192.168.0.50.

Select the protocol used by the service.

The port that will be used on your internal
network.

The port that will be accessed from the
Internet.

Select a firewall rule that controls access as
needed for this virtual server. If you do not
see the firewall rule you need in the list of
firewall rules, go to the Advanced -> Firewall
page and create a new firewall rule.

Select a schedule for when the service will
be enabled. If you do not see the schedule
you need in the list of schedules, go to the
Advanced -> Schedules screen and create
a new schedule.

Enabled/

Disabled:

Name:

Clear:

Private IP:

Protocol Type:

Protocol Port:

Public Port:

Firewall:

Schedule:
