M16 Microphone Amplifier
3
The M16 Microphone Amplifier
3.1
M16 Front panel
1. Channel Number
2. Signal Overload Indicator
3. Signal Present Indicator
4. PFL Switch
5. Mute Switch
6. Headphone Socket
7. Headphone Level Control
8. PFL Level Meter
9. Channel Gain
10.Gain Increment Switch
11.Gain Decrement Switch
12.Polarity Reverse
13.Pad Switch
14.Phantom Power Switch
15.High Pass Filter Switch
16.Remote Indicator
17.USB Indicator
18.USB port

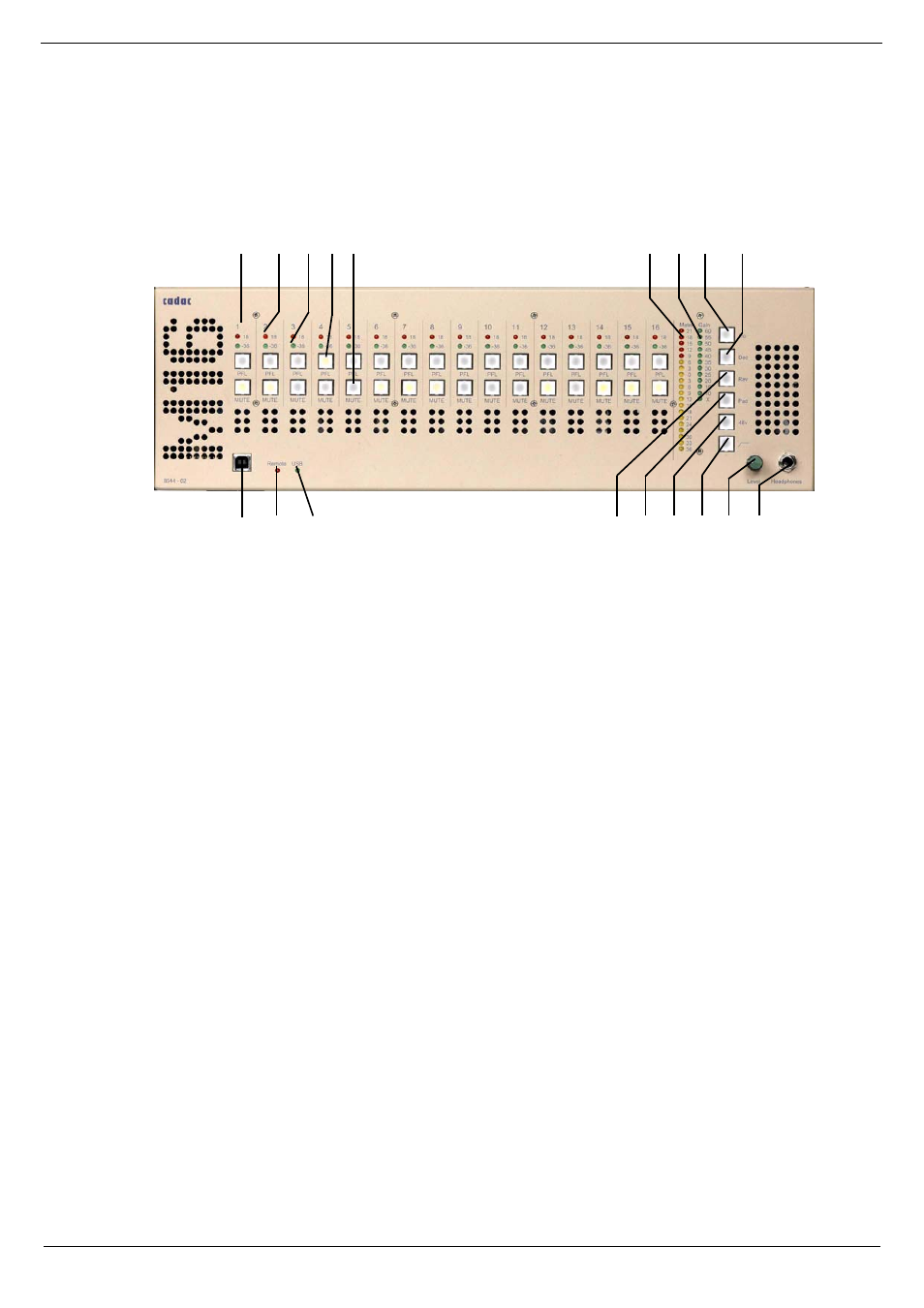

FIG 3-1. M16 front panel layout
1 2 3 4 5 8 9 10 11
16 17 12 13 14 15 7 6
18
