BRONKHORST HIGH-TECH B.V.
4.2 Application with none BHT Readout and Control unit
4.2.1 Recommended graphical diagram heater system

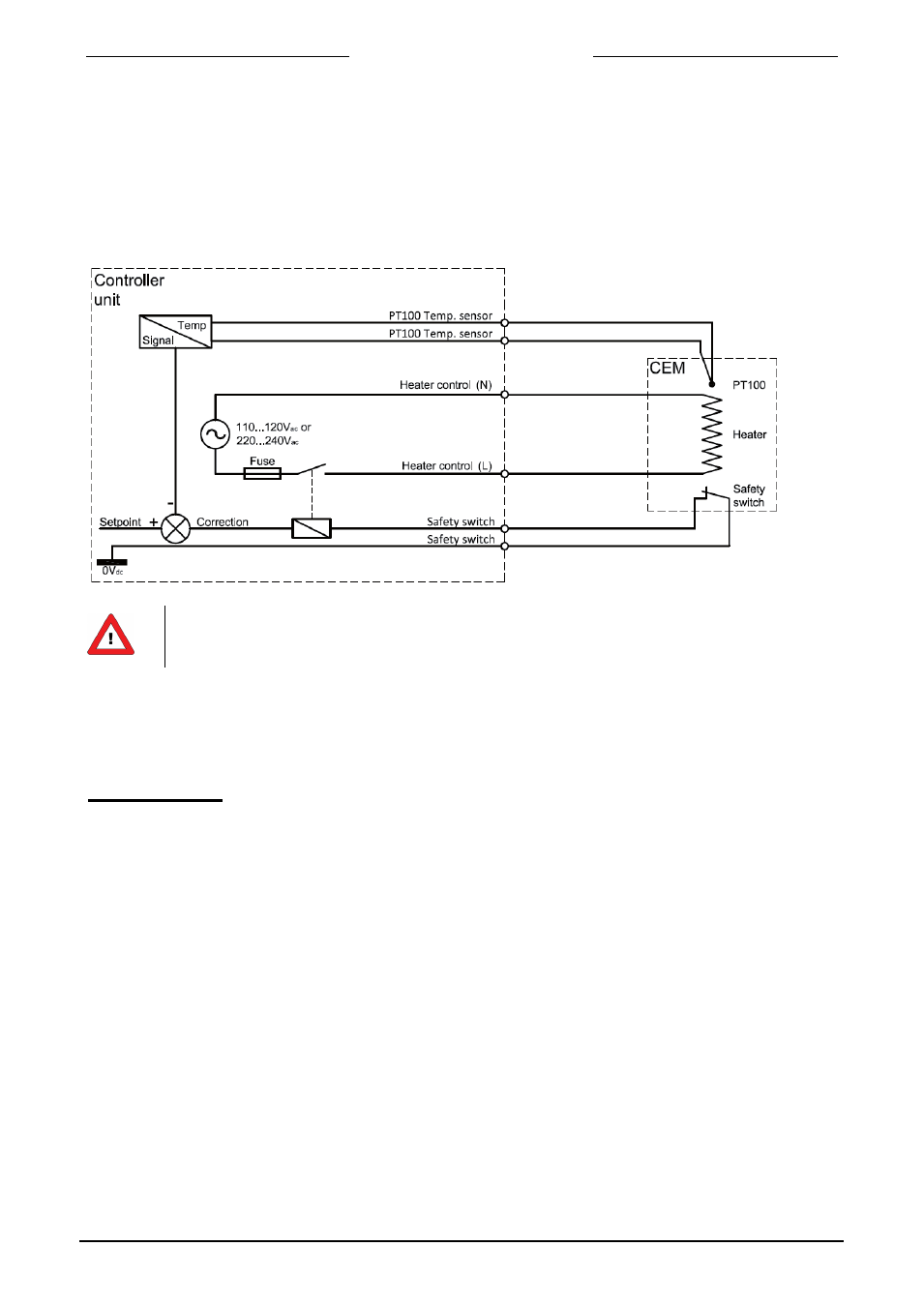

In the drawing below the recommended electrical diagram of a heater controlled system is shown.
For proper connection, please consult the appropriate hook-up diagrams.
CAUTION !!
When using the CEM system without the BHT Readout and Control unit the following guidelines should be
followed:
•
The heat exchanger does not contain a fuse. This should be connected externally.
•
The heat exchanger is not suitable for constant ac power supply.
•
The heat exchanger should be part of a temperature-controlled loop.
•
The safety switch inside the heat exchanger is not part of the ac power supply circuit.
