3-10

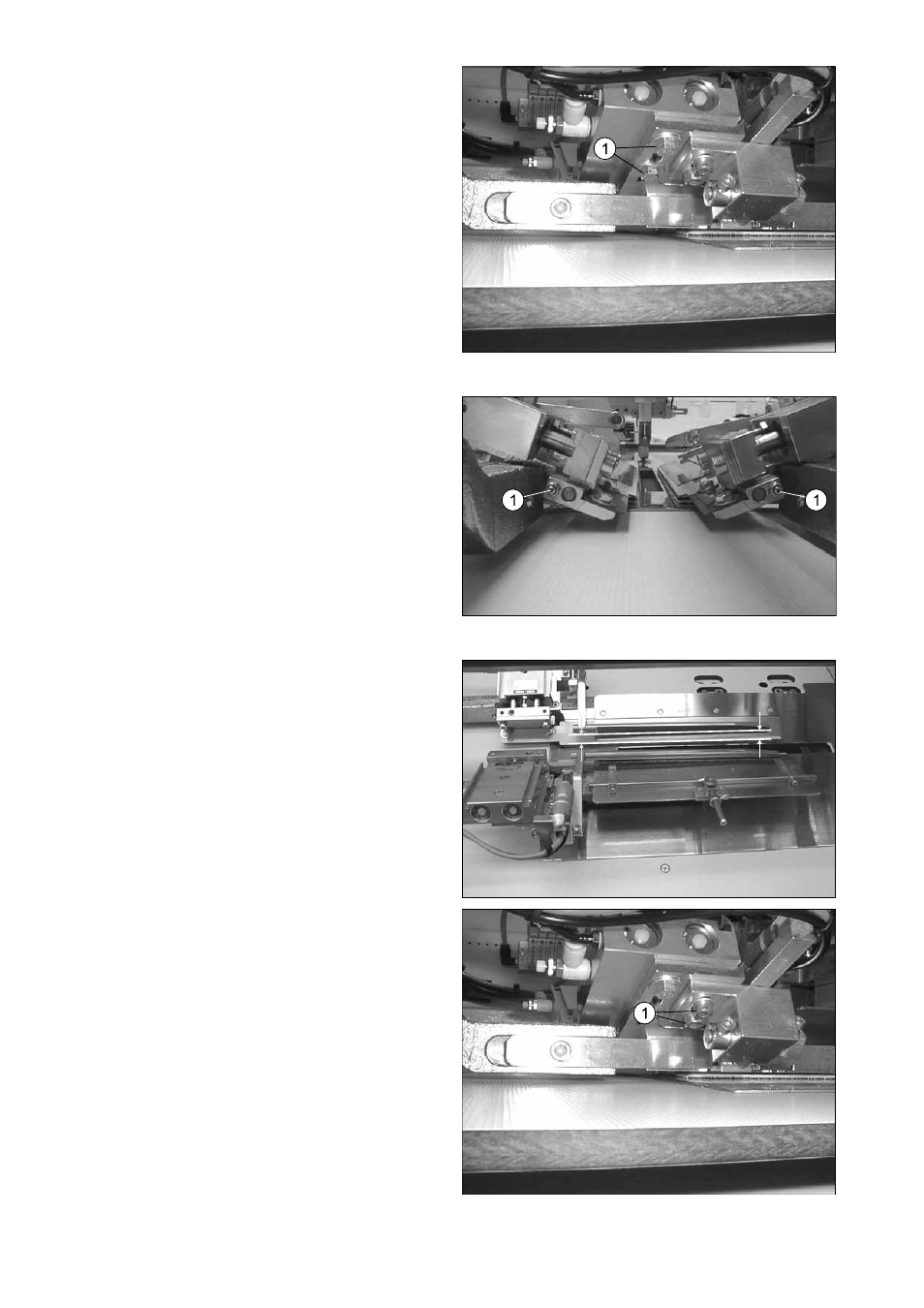

1.16 Flap clamp position
The flap clamps must stand in a distance of 5 mm paral-
lel to the inner side of the main clamp.
To adjust the flap clamp, loosen the fixing screws (1) of
the flap clamp beam. Adjust the flap clamp correctly and
tighten the fixing screws (1) again.
1.15 Adjust folding slide
A turn movement of the folding slide must be assured
which allows him to adjust to the strength of the sewing
material.
Adjust the screws (1) to adjust the folding slide with no
free play axially.
1.14 Adjust parallelity of folding slide
In driven in state, the folding slide must be parallel to
and 0.5 mm away from the edge of the main clamp.
This can be adjusted with the fixing screws of the fol-
ding slide cylinder (1).
