9

ASSEMBLY

3

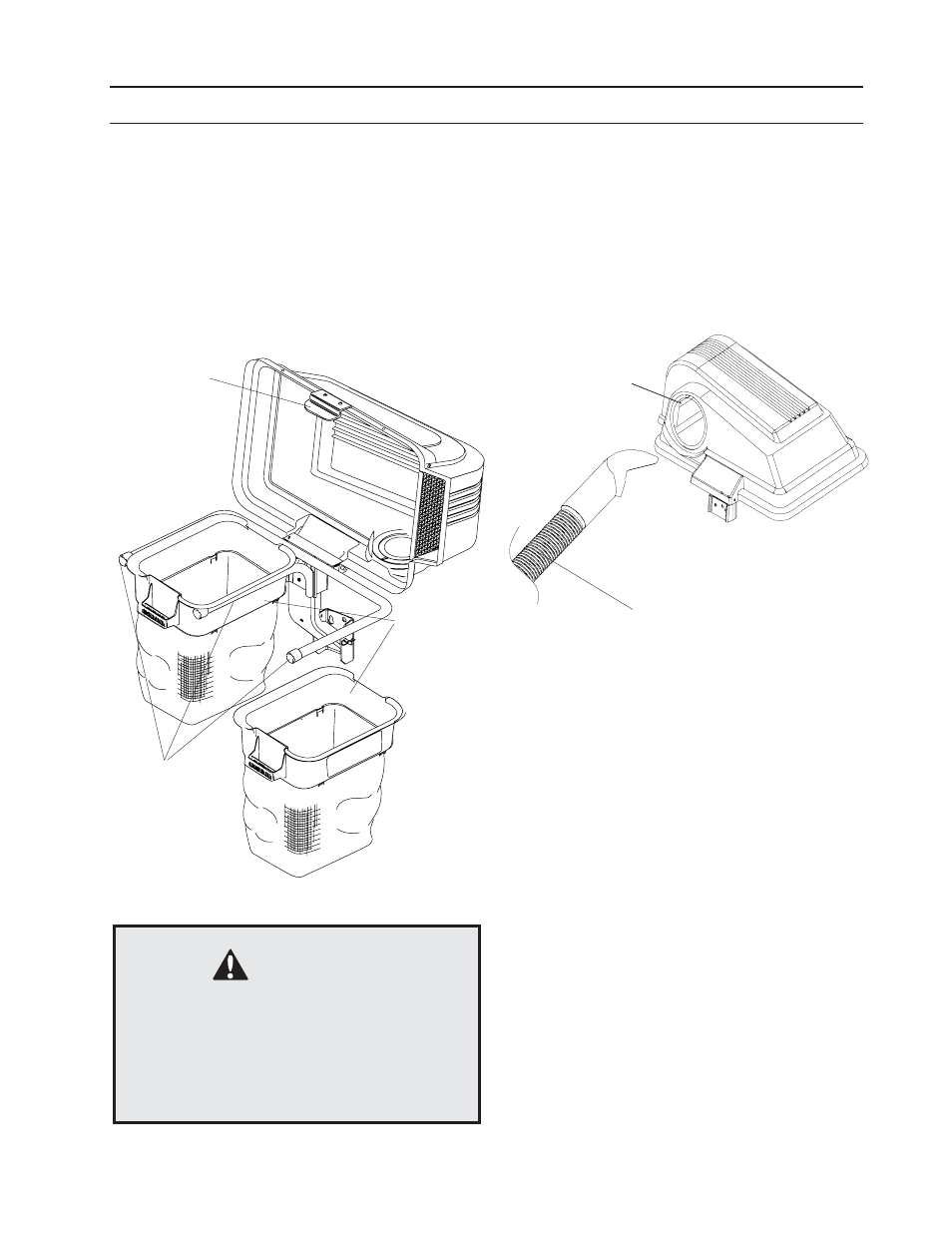

CONTAINER MOUNTING

1. Install container, centering between support

tubes.

NOTE: One container should always
overlap the other container at supports.

2. Close cover and lock latch handles over

center support tubes.

WARNING

DO NOT operate mower unless container is
properly installed. Container is subject to
wear and deterioration, check containers
frequently, replace when cracked or dam-
aged. Use only a recommended replace-
ment container.

Cover Latch
Handle

Support
Tubes

4

UPPER CHUTE

1. Attached flex tube to blower and secure with

the hose clamp.

2. Slide opposite flex hose end into upper chute.

3. Push upper chute through the gasketed

opening in the cover assembly.

4. Rotate flex tube and upper chute so that the

chute opening is downwards toward the
container bags.

Cover Gasket

Rotate Upper Chute
to point downwards
towards bags

Container Bags
