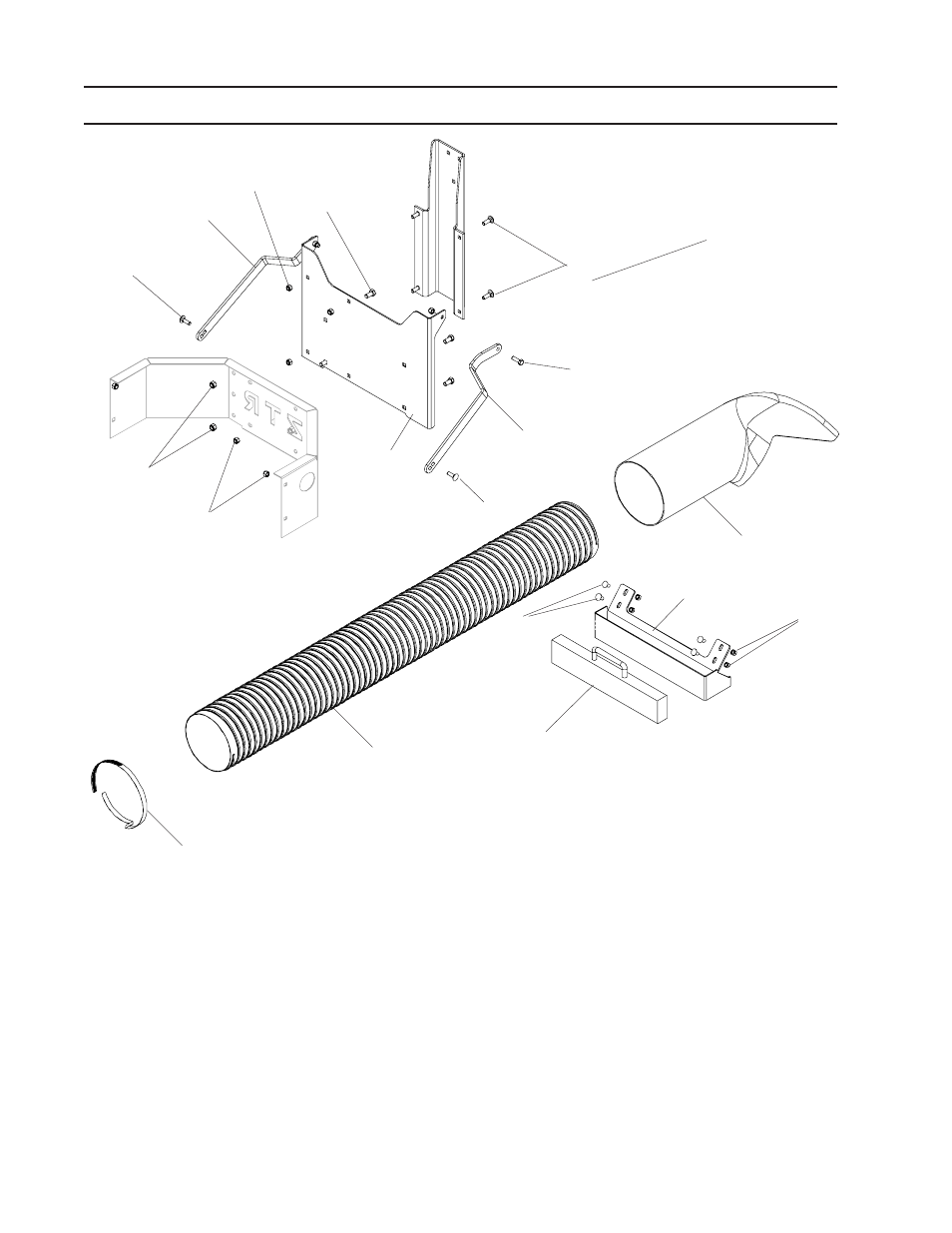

PARTS
14
3
5
6
7
9
10
17
12
13
1
2
8
14 6
11
12
ITEM P/N QTY. DESCRIPTION ITEM P/N QTY. DESCRIPTION
1 .. 539 131279 .... 1 ... SUPPORT - BAGGER
2 .. 539 990134 .... 4 ... HCS
3 /
8
-16 x ¾ GR 5 ZD
3 .. 539 976979 .... 4 ... NUT 3 /
8
-16 HEX NYLOC ZD
4 .. 539 131277 .... 1 ... BRACKET, HANGER
5 .. 539 990208 .... 6 ... RRSNB
5 /
16
-18 X 1 GR 5 ZD
6 .. 539 990717 .... 8 ... NUT 5 /
16
-18 HEX NYLOC ZD
7 .. 539 115938 .... 1 ... FLEX HOSE
8 .. 539 131190 .... 1 ... UPPER CHUTE
9 .. 539 115719 .... 1 ... HOSE CLAMP
10 .. 539 131282 .... 1 ... SUPPORT STRAP - L.H.
11 .. 539 131284 .... 1 ... SUPPORT STRAP - R.H.
12 .. 539 111587 .... 1 ... CAST WEIGHT
13 .. 539 114898 .... 2 ... BRACKET, WEIGHT
14 .. 539 990316 .... 4 ... RHSNB
5 /
16
-18 x ¾ GR5 ZD
15 .. 539 990209 .... 2 ... HCS 5 /
16
-18 x 1 GR 5 ZD
5
5
6
