NOTE: When right hand (R.H.) and left hand (L.H.) are mentioned in this manual, it means when
you are seated on the mower in the operator’s position.

CAUTION

BEFORE ASSEMBLING GRASS BAGGER TO MOWER:

•

Set parking brake.

•

Place motion control levers in “NEUTRAL” position.

•

Turn ignition key “OFF” and remove key.

•

Make sure the blades and all moving parts have completely stopped.

•

Disconnect spark plug and place wire where it cannot come in contact
with plug.

UNPACKING INSTRUCTIONS

•

Remove all parts and packing materials from
both cartons.

•

Check carton contents against list. Be sure all
parts are there.

CARTON 1 CONTENTS

1 - Upper Chute

1 - Owner’s Manual

1 - Flex Hose

1 - Hanger Bracket

1 - Bagger Support

1 - Weight Kit

1 - Bag of Hardware

CARTON 2 CONTENTS

1 - Cover Assembly

2 - Soft Bag Containers

1 -

Bag of Hardware

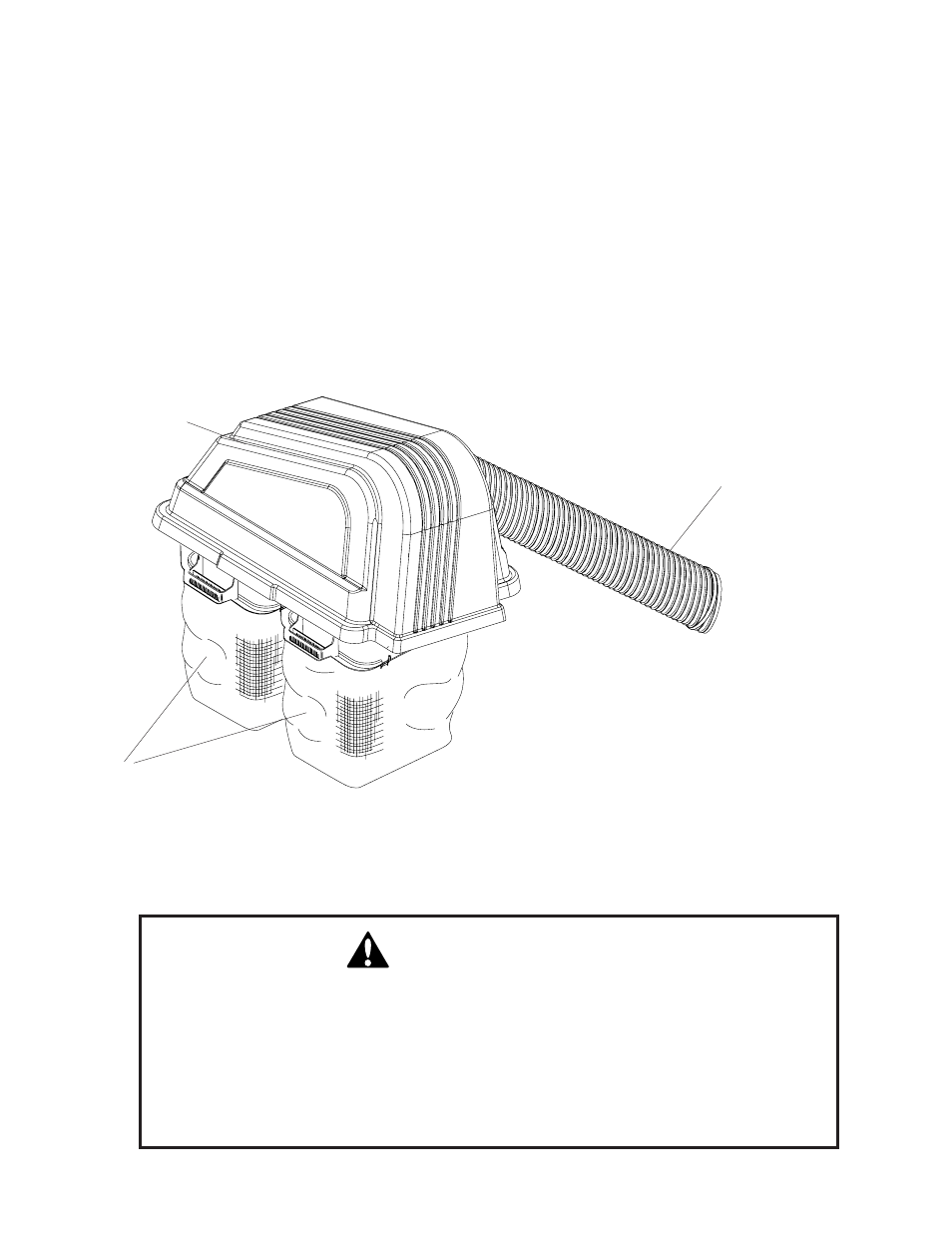

PARTS IDENTIFICATION

COVER
ASSEMBLY

GRASS
CATCHER
CONTAINERS

FLEX HOSE
