5 FRONT WEIGHTS
ASSEMBLY
1. Center the weight box on the front face of foot
plate, as illustrated. Use the holes in weight
box as a template to mark and drill four
11 /
32
"
diameter holes in foot plate.
2. Attach the weight box to foot plate with four
5 /
16
-18 x ½" carriage bolts and 5 /
16
" nyloc nuts.
3. Install weight in weight box.
CAUTION
DO NOT operate mower with grass
bagger, unless the front weights are
installed.

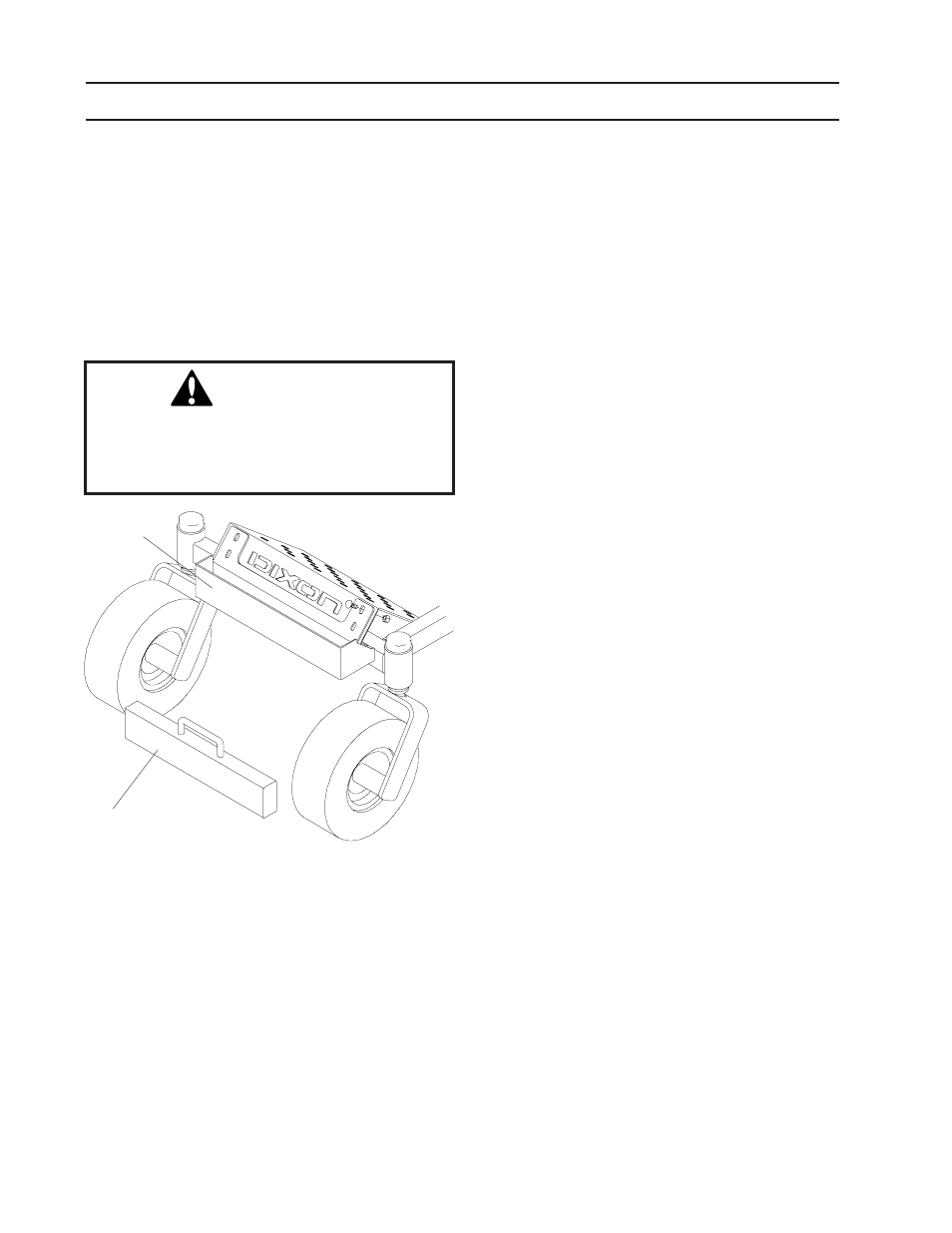

Install Weight
In Box
Weight Box
