o

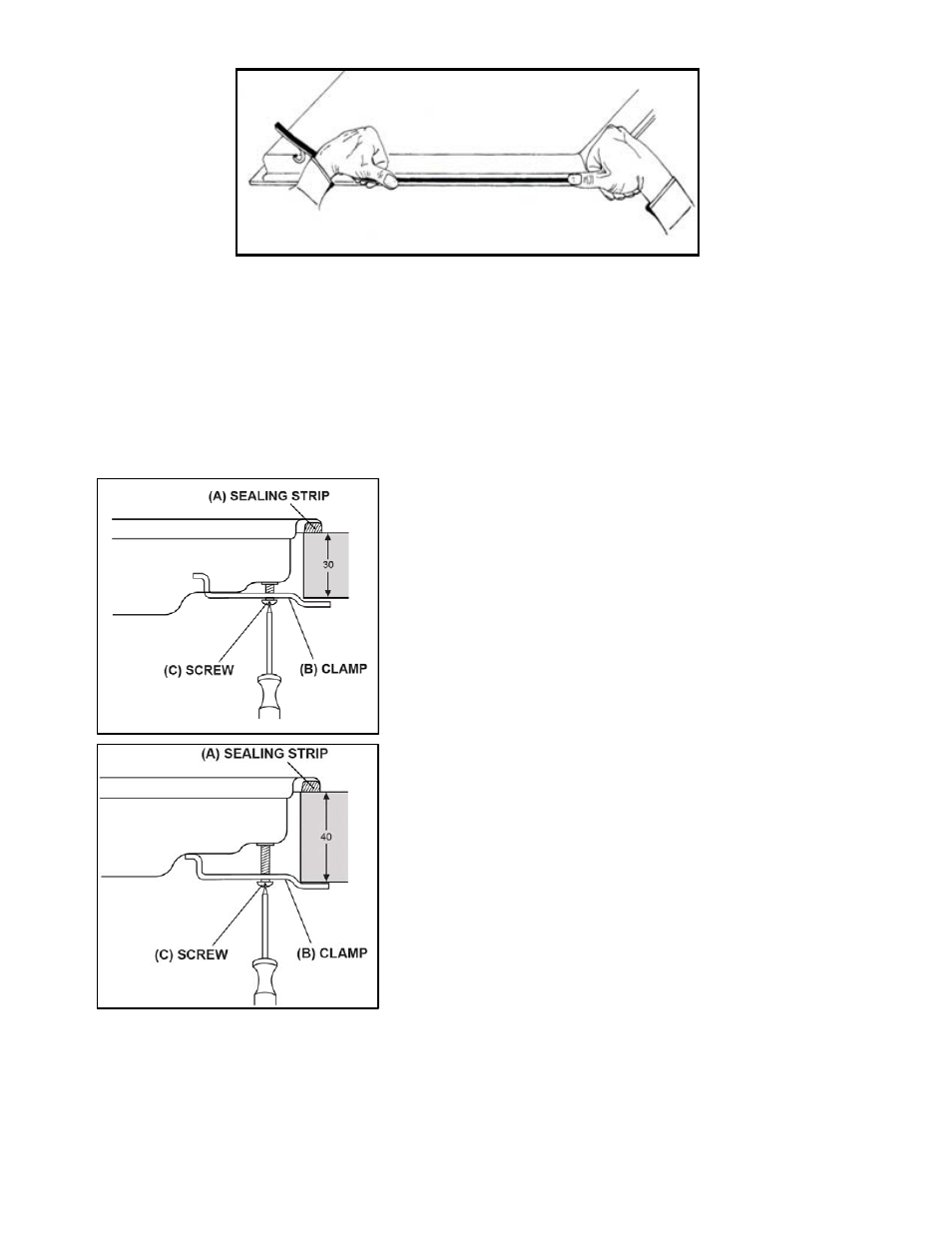

Apply the sealing strip provided around the edge of the appliance.
o
Do not leave a gap in the sealing strip or overlap the thickness.
IMPORTANT: Do not use a silicon sealant to seal the appliance
against the aperture. This will make it difficult to remove the hob from
the aperture in future, particularly if it needs to be serviced.
o
Carefully turn the hob back over and then gently lower it into the
aperture hole that you have cut out.
o
On the underneath of the hob, place the
clamp(s) (B) into position on in each
corner of the hob.
o
Adjust the clamps into a position that is
suitable for your worktop, as shown in
the diagrams on the left.
o
Slightly tighten the screw (C) through
each clamp (B) so that the clamp is
attached to the hob.
o
Once you are satisfied of the position of
the hob, you can fully tighten the screws
(C) to secure the hob into position.
