2

SPECIFICATIONS

GENERAL SPECIFICATIONS

OUTPUT SPECIFICATIONS

Input Voltage

38V~55V

Voltage Set Point

Typical Vin/n

Switching Frequency Typical 200

KHz

E48SB120

8.9V~13.75V

Isolation Voltage

In/Out 2250V

E48SB9R6

7.0V~11V

Isolation Resistance Minimum 10M

Ohms

Total Output Range

MTBF

Bellcore 2.01

Load Regulation

Typical 300mV

OTP

Typical 130°C

Ripple & Noise

Typical 100

mV

Size

(2.30”Ч0.90”Ч0.45”) 58.4x22.8x11.4mm Load Limits

Typical

120% of load

PART NUMBERING SYSTEM

E 48 S

B 120

20 N R

F

A

Type of

Product

Input

Voltage

Number of

Outputs

Product

Series

Output

Voltage

Output

Current

ON/OFF

Logic

Pin

Length

Option

Code

E - Eighth

Brick

48 -

38V~55V

S - Single

Bus Converter

120 - 12V

9R6 - 9.6V

20 - 20A

25 - 25A

N - Negative

(Default)

P - Positive

R- 0.170”

(Default)

N- 0.145”

K- 0.110”

C- 0.180”

F- RoHS 6/6

(Lead Free)

A - OCP, OTP hiccup

B - OCP, OTP latch-up


MODEL LIST

Model Name

INPUT

OUTPUT

Eff. @ 100% LOAD

E48SB12020NRFA 38V~55V 6.5A

12V

20A

96.3%

E48SB9R625NRFA 38V~55V 6.5A

9.6V

25A

96.5%

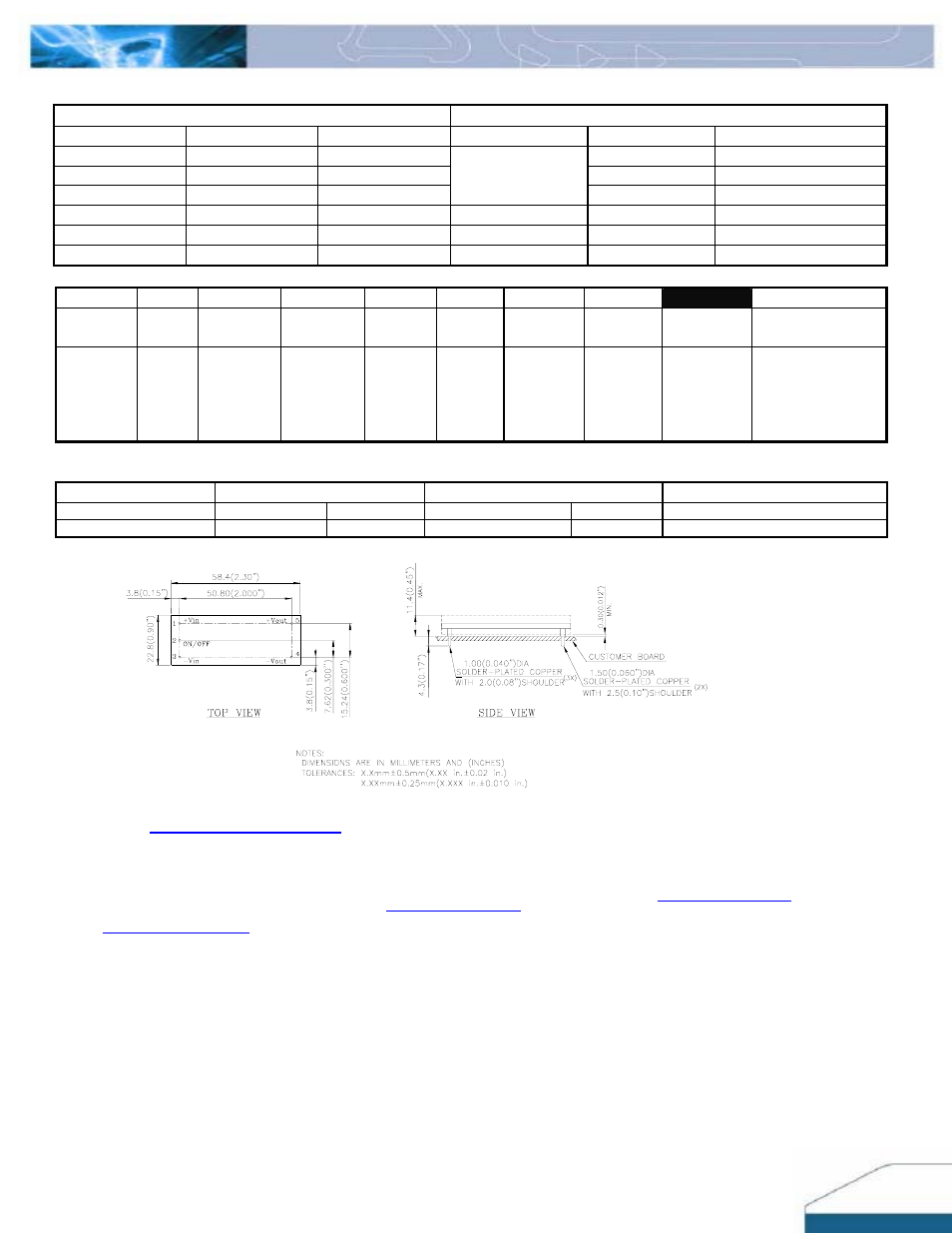

MECHANICAL DRAWING

CONTACT:

www.delta.com.tw/dcdc

USA:
Telephone:

East Coast: (888) 335 8201
West Coast: (888) 335 8208
Fax: (978) 656 3964
Email:

[email protected]

Europe:
Phone: +41 31 998 53 11
Fax: +41 31 998 53 53
Email:

[email protected]

Asia & the rest of world:
Telephone: +886 3 4526107 ext 6220
Fax: +886 3 4513485
Email:

[email protected]

WARRANTY

Delta offers a two (2) year limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.

Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor for any infringements
of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights
of Delta. Delta reserves the right to revise these specifications at any time, without notice.
