6. Replace and tighten the retaining screw to secure the
board firmly in the chassis slot (if applicable).
7. Connect the RJ-48C jack on the board bracket to the
switch using a digital telephone crossover cable.
8. Select a new PCI slot and repeat steps 3-7 for each
board you are installing.
9. Use the CT Bus cable to connect the board(s) you are
installing to other boards in the system.
NOTE: Your system may include both CT Bus and
SCbus boards. To connect both board types, you must
install a CT Bus/SCbus Adapter on one of the CT Bus
boards in a system. See the CT Bus/SCbus Adapter Quick
Install Card for installation details about the Adapter and
the bus cables. Contact your sales representative to order
an Adapter.
10. Install CT Bus Termination Jumpers only on boards
located at each end of the CT Bus cable. See Physical
Description.
11. Replace the chassis cover plate when finished and
reconnect the power cords.
12. Turn the power to the chassis ON.
CAUTION: If your BIOS is set to use Plug and Play
technology and there are ISA boards in your system, an
IRQ conflict can be created if a DM3 board is assigned
the same IRQ as an ISA board. This could cause the
machine to stop responding. You can prevent this by
entering the BIOS and reserving the appropriate IRQs
(those used by your ISA boards) for ISA use only.
After Installing the
Hardware
After installing the hardware, proceed with the system
software installation as described in the system software
documentation (if applicable).
For technical specifications and product information, see the
Dialogic website at
Warranty and Return Information
Warranty Period
For specific warranty information for this board, refer to the
Warranty section of the Products page, located at this URL:
http://www.dialogic.com/warranties/.
Contacting Technical Support
Dialogic provides technical support for its products through a
network of value added distributors who are trained to answer
technical questions on installing and configuring Dialogic
®
products. If you are unsure how to contact your support
channel, please call Dialogic in the United States at 973-967-
6600 (9am-5pm EST) and we will assist in obtaining the
appropriate support channel. Outside the United States please
refer to
local contact information.
Dialogic also provides direct support via Dialogic
®
Pro™
Services agreements. For more details of direct support from
Dialogic please refer to:
.
Returning a Product
To return a board for warranty repair or any other returns,
please refer to the following:
Sales Assistance
All contents of this document are furnished for informational use only and are
subject to change without notice and do not represent a commitment on the part
of Dialogic Corporation or its subsidiaries (“Dialogic”). Reasonable effort is
made to ensure the accuracy of the information contained in the document.
However, Dialogic does not warrant the accuracy of this information and
cannot accept responsibility for errors, inaccuracies or omissions that may be
contained in this document.
It is possible that the use or implementation of any one of the concepts,
applications, or ideas described in this document, in marketing collateral
produced by or on web pages maintained by Dialogic may infringe one or more
patents or other intellectual property rights owned by third parties. Dialogic
does not provide any intellectual property licenses with the sale of Dialogic
products other than a license to use such product in accordance with
intellectual property owned or validly licensed by Dialogic and no such
licenses are provided except pursuant to a signed agreement with Dialogic.
More detailed information about such intellectual property is available from
Dialogic’s legal department at 9800 Cavendish Blvd., 5
th
Floor, Montreal,
Quebec, Canada H4M 2V9. Dialogic encourages all users of its products to
procure all necessary intellectual property licenses required to implement
any concepts or applications and does not condone or encourage any
intellectual property infringement and disclaims any responsibility related
thereto. These intellectual property licenses may differ from country to
country and it is the responsibility of those who develop the concepts or
applications to be aware of and comply with different national license
requirements.
If you have a sales question, please contact your
local Sales Representative or the Regional Sales Office
for your area. Address, telephone and fax numbers, are
available at the Dialogic website located at:
To purchase Dialogic
®
products, please refer to the following
website to locate the appropriate supplier:
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION
WITH DIALOGIC
®
PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED,
BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY
RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED
IN A SIGNED AGREEMENT BETWEEN YOU AND DIALOGIC,
DIALOGIC ASSUMES NO LIABILITY WHATSOEVER, AND DIALOGIC
DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO
SALE AND/OR USE OF DIALOGIC PRODUCTS INCLUDING LIABILITY
OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR
PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY
INTELLECTUAL PROPERTY RIGHT OF A THIRD PARTY.
Dialogic products are not intended for use in medical, life saving, life
sustaining, critical control or safety systems, or in nuclear facility applications.
Dialogic, Diva, Eicon, Eicon Networks, Eiconcard and SIPcontrol, among
others, are either registered trademarks or trademarks of Dialogic. Dialogic's
trademarks may be used publicly only with permission from Dialogic. Such
permission may only be granted by Dialogic’s legal department at 9800
Cavendish Blvd., 5th Floor, Montreal, Quebec, Canada H4M 2V9. Any
authorized use of Dialogic's trademarks will be subject to full respect of the
trademark guidelines published by Dialogic from time to time and any use of
Dialogic’s trademarks requires proper acknowledgement. The names of actual
companies and products mentioned herein are the trademarks of their
respective owners.

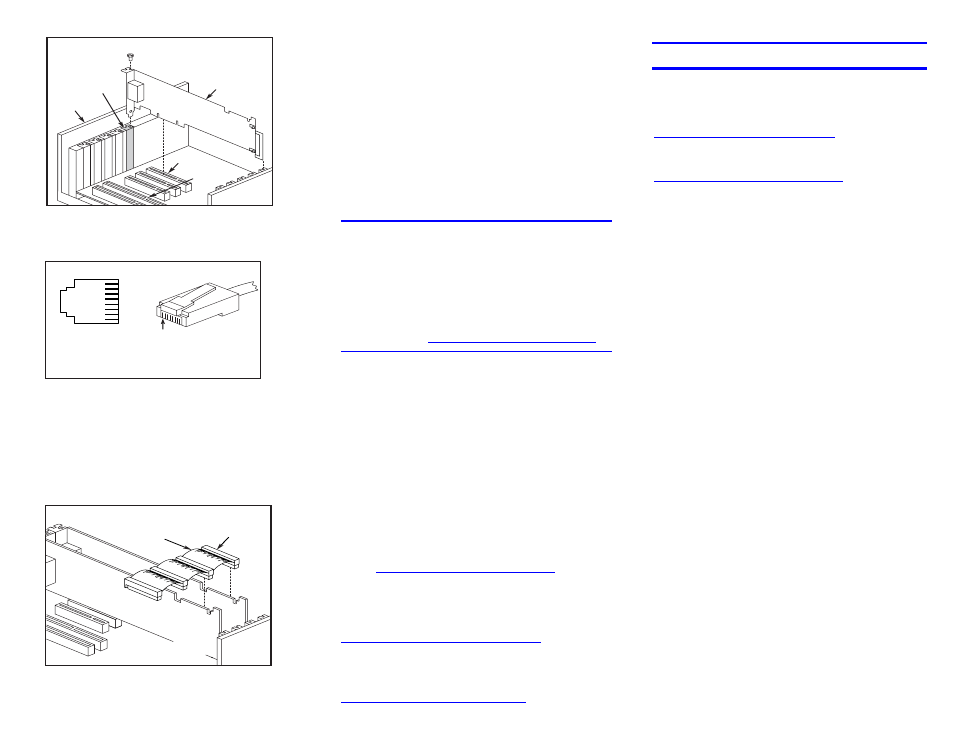

Installing a PCI Board
ISA Slot
PCI Slot
PCI
Board
Computer
Chassis
Remove
Cover
Plate
Note:
Your CT Bus cable may
have a different number
of connectors (drops).
CT Bus
Cable
Installing the CT Bus Cable
Colored
Stripe
(Pin 1)
Network Interface
Cable Connector
RCV_RING
RCV_TIP
Chassis Ground
XMIT_RING
XMIT_TIP
Chassis Ground
Chassis Ground
Chassis Ground
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Pinout for RJ–48C Jacks
on PCI Bracket
Pin 1
