Simplifying Media Transport
™
DigiLink
Media
Transport Simplified
QUICK START GUIDE
DigiLink Six Channel TDM De-Multiplexer
for 3G, HD, SDI, and ASI [DLC156D
]
Artel ships the DLC156D configured as follows:
•
All six channels enabled
•
Optical repeater (TX laser) is disabled
•
No video detected alarm disabled
•
EMS override enabled (DigiLink Manager can change the DLC156D configuration)

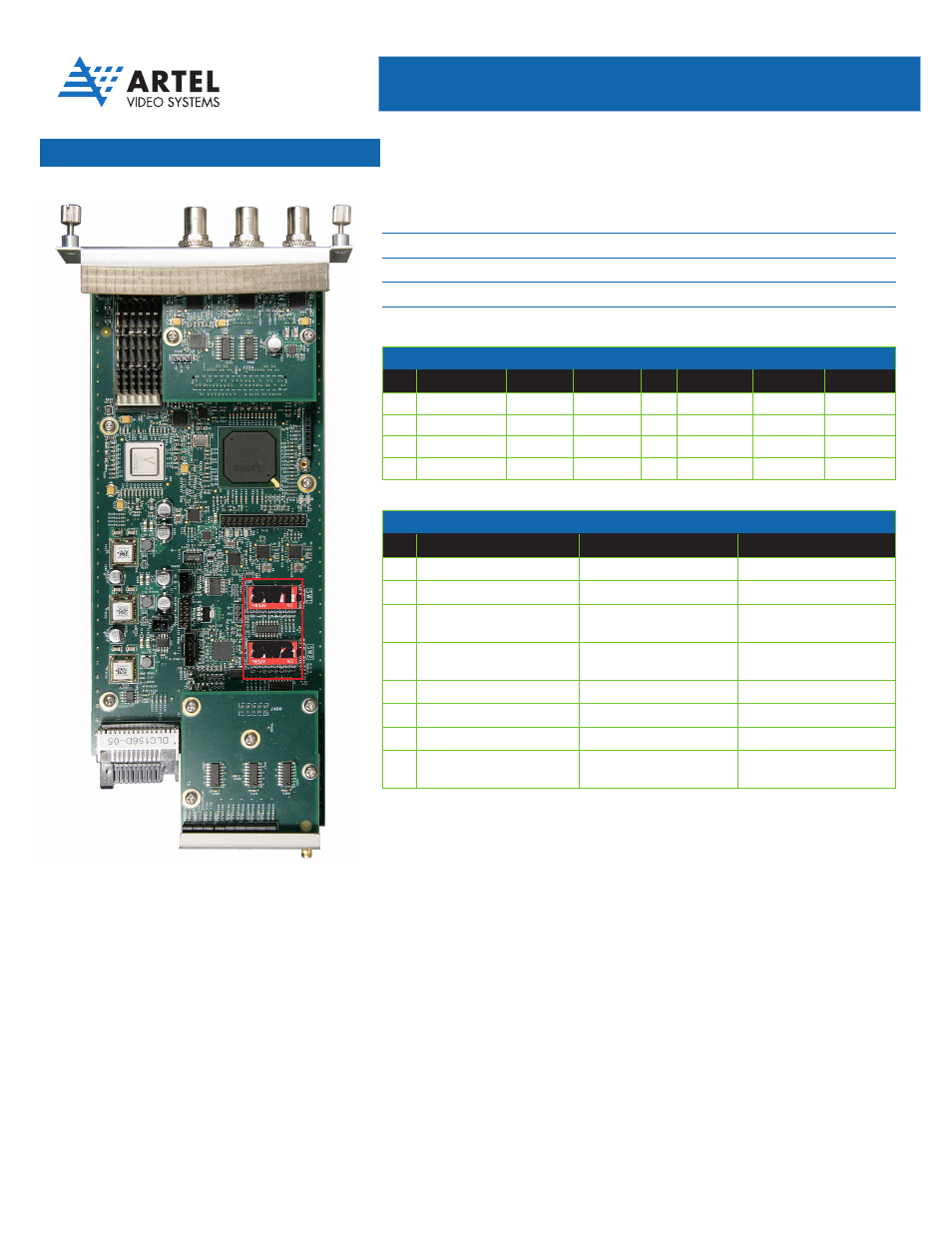

DIP Switch Configurations
Factory Default: All On
SW
1
CHANNEL ENABLES
SW1
Channel
OFF
ON
Channel
OFF
ON
S1
Channel A
Disabled
Enabled
S5
Channel E
Disabled
Enabled
S2
Channel B
Disabled
Enabled
S6
Channel F
Disabled
Enabled
S3
Channel C
Disabled
Enabled
S7
Reserved
-
S4
Channel D
Disabled
Enabled
S8
Reserved
-
SW
2
CONFIGURATION
SW
2
Setting
OFF
ON
S1
Reserved
-
Must be on
S2
Reserved
-
Must be on
S3
Video Alarm
Loss of video on an enabled
input causes a major alarm
No alarm
S4
Optical Repeater Disabled
Repeater mode (TX laser) is
enabled
Repeater mode disabled
S5
Reserved
-
Must be on
S6
Reserved
-
Must be on
S7
Reserved
-
Must be on
S8
EMS Enable
EMS cannot override the
local switches
EMS allowed
Factory Default: All On
SW1
