DigiLink Six Channel TDM Multiplexer
for 3G, HD, SDI, and ASI [DLC156M
]

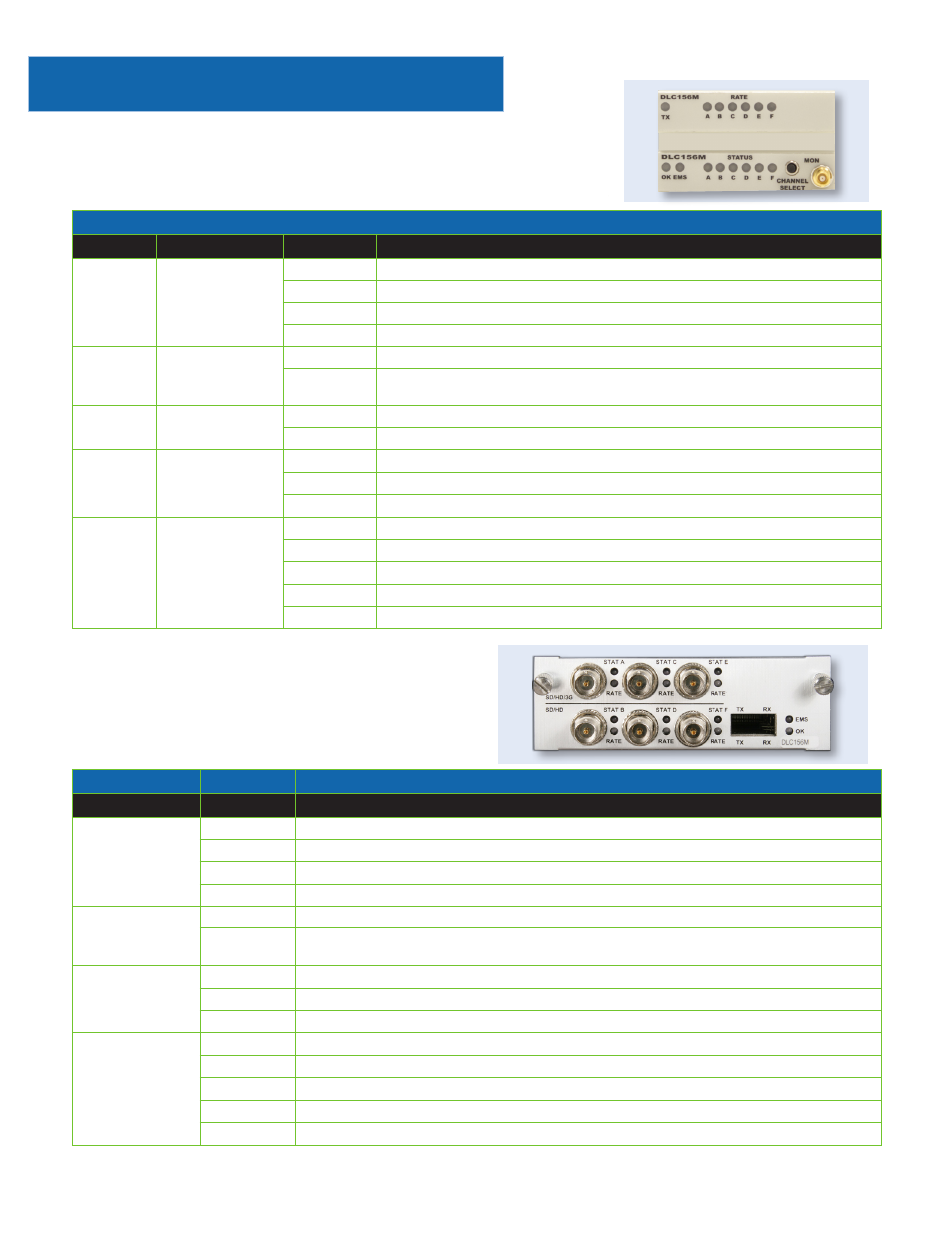

Front Panel LEDs
LED
Function
Color
Description
OK
DLC156M
Module
Status
OFF
If power is applied to the system, an internal fault may exist.
n
Green
Normal operation
n
Yellow
Minor alarm
n
Red
Major alarm
EMS
DigiLink Manager
System
Status
OFF
The module’s configuration is controlled by the onboard configuration switches.
n
Green
The module’s configuration has been set by DigiLink Manager EMS. When green, the
configuration switches have no effect on the module’s operation.
TX
Transmitter
Status
n
Green
Normal TX operation
Red
No XFP is installed or a transmitter fault
A, B, C, D,
E, F
(RATE)
Input
Rate
OFF
No input signal, an SD-SDI input or an ASI input
n
Green
A HD-SDI input signal
n
Yellow
A 3G-SDI input signal
A, B, C, D,
E, F
(STATUS)
Input
Status
OFF
Channel disabled
n
Green
Video detected on channel
n
Yellow
No video detected on channel
n
Red
Input signal rate is outside the frequency range (+/- 100 PPM)
Red
3G-SDI detected when 3G is not enabled
Flashing yellow |
Flashing red
Rear Panel LEDs
Function
Color
Description
DLC156M
Module
Status
OFF
If power is applied to the system, an internal fault may exist.
n
Green
Normal operation
n
Yellow
Minor Alarm
n
Red
Major Alarm
DigiLink Manager
System
Status
OFF
The module’s configuration is controlled by the onboard configuration switches.
n
Green
The module’s configuration has been set by DigiLink Manager EMS. When green, the configuration
switches have no effect on the module’s operation.
Input Rate
OFF
No input signal, an SD-SDI input or an ASI input
n
Green
A HD-SDI input signal
n
Yellow
A 3G-SDI input signal
Input
Status
OFF
Channel disabled
n
Green
Video detected on channel
n
Yellow
No video detected on channel
n
Red
Input signal rate is outside the frequency range (+/- 100 PPM)
Red
3G-SDI detected when 3G is not enabled
Flashing red
