Argox CP Series - Manual (Page 68)

68
Compact Printer Series - User
’s Manual
Plessey、GS1 Data bar (RSS) 、Industrial 2 of 5、
Standard 2 of 5、Logmars
2D Barcodes
MaxiCode、PDF417、Data Matrix (ECC 200
only) 、QR code、Composite Codes
Interface Specification
This section presents the interface specifications of IO ports for
the printer. These include pin assignments, protocols and detailed
information about how to properly interface your printer with your
host or terminal.

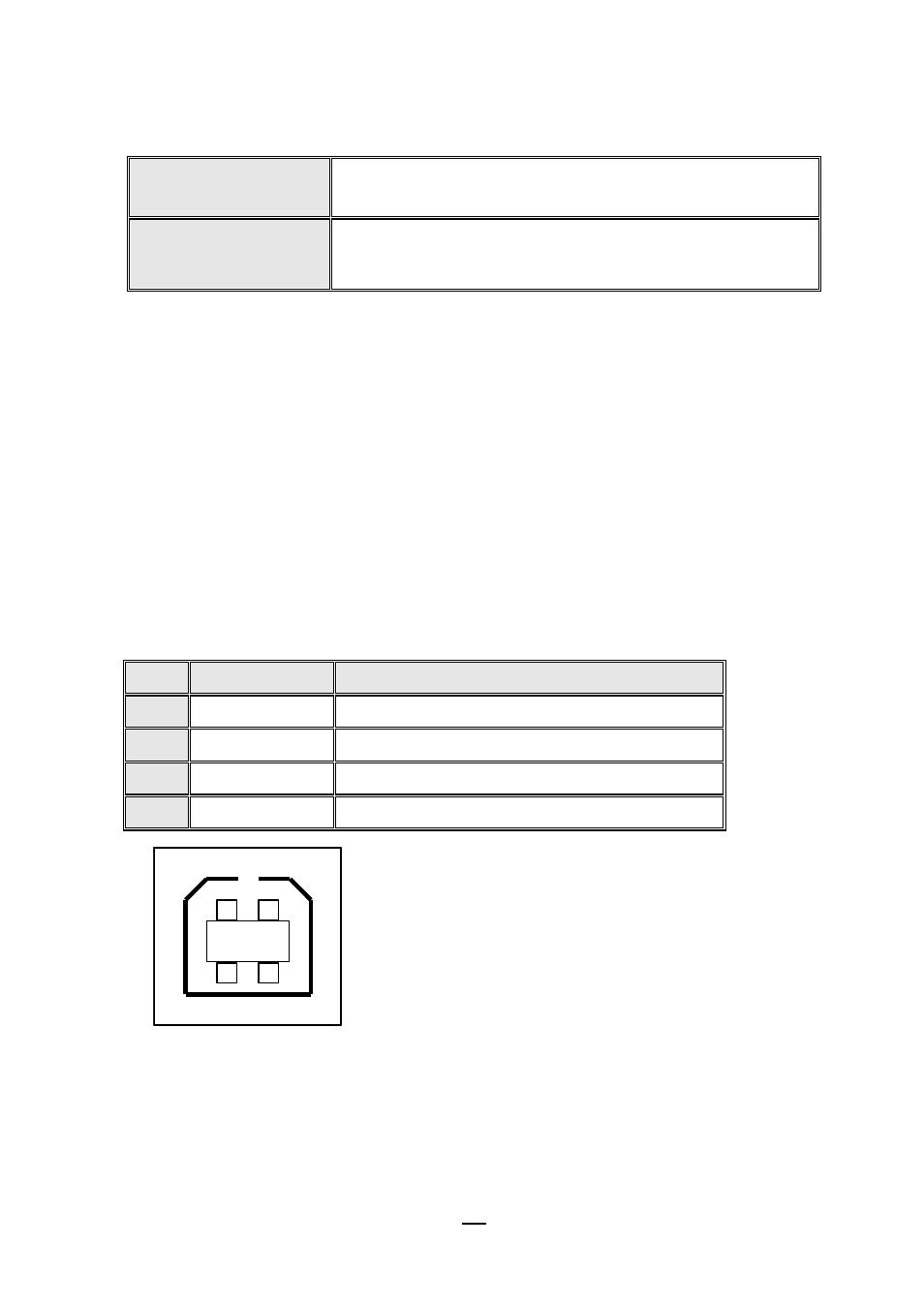

USB Interface
T
Connector Terminal Pin Assignment
Pin Signal Description
1 VBUS 5V
2 D - Differential data signaling pair -
3 D + Differential data signaling pair +
4 GND Ground
1 2
3 4
1 2
3 4
USB series “B” Receptacle Interface
