APC-3X18 User Manual 17
1.7 Panel Mounting of the APC-3218/3518/3718/3918
The APC-3218/3518/3718/3918 panel PC is designed to be panel-mounted as shown in
Figure 1.7. Just carefully place the unit through the hole and tighten the given 10
screws from the rear to secure the mounting.

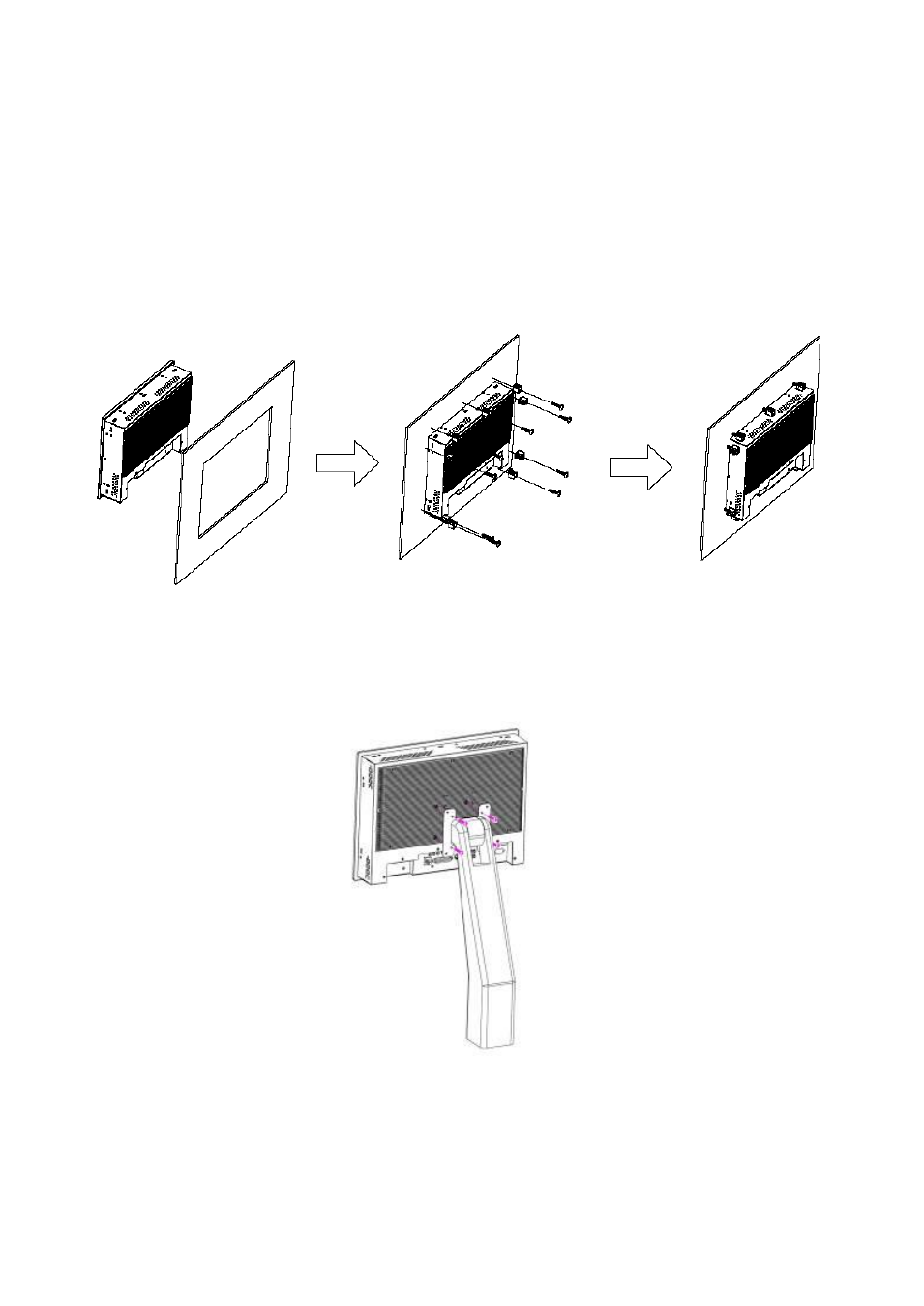

Figure 1.7: Panel mounting of the APC-3218/3518/3718/3918
Figure 1.8: VESA mounting of the APC-3218/3518/3718/3918
