DS8100A QUICK GUIDE
6
Two 17-pin connectors provide access to the scanner’s local Lonworks network used for both input and output
connections to build a multi-sided or omni-station system.

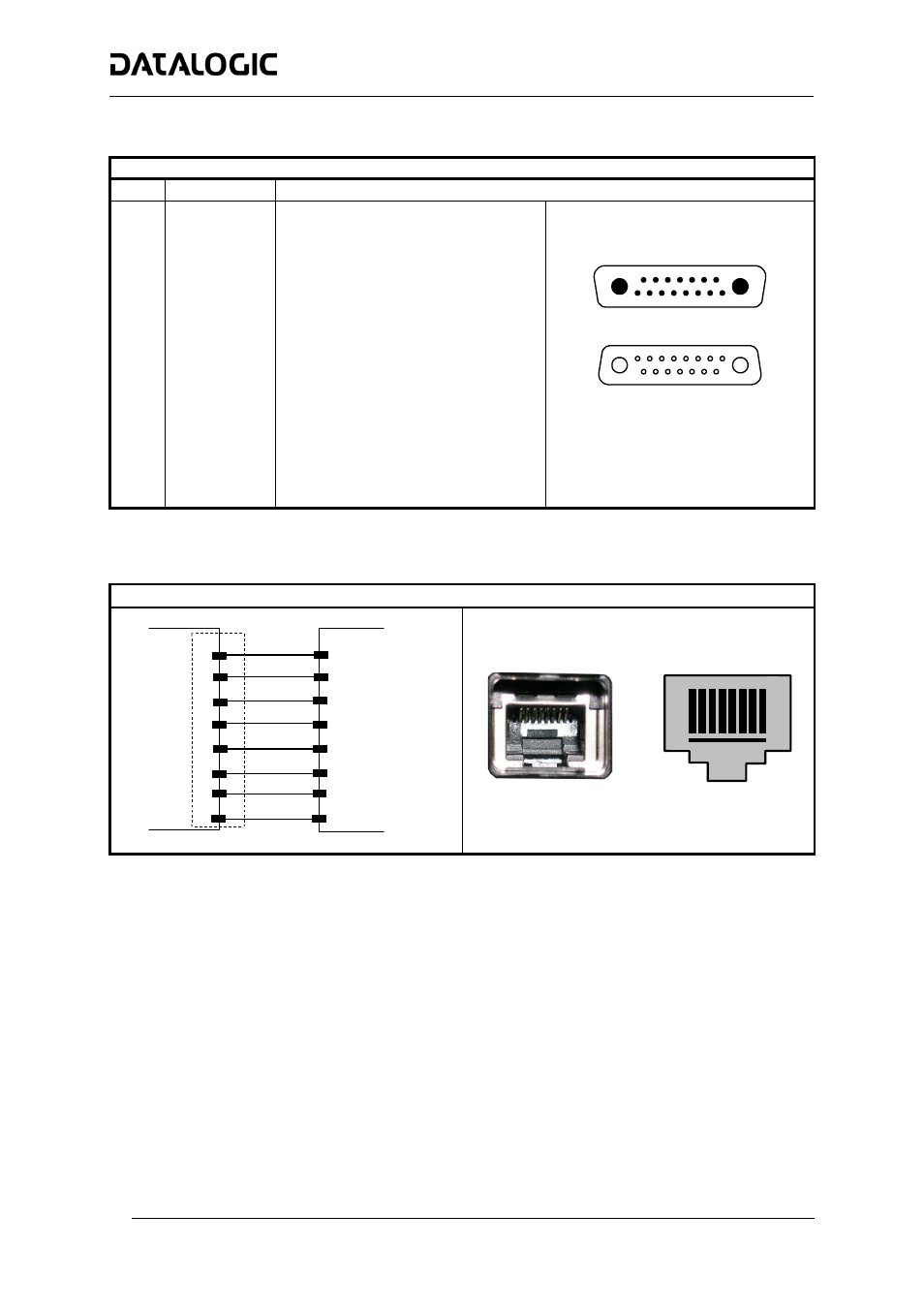

17-pin Lonworks Connector Pinout
Pin Name
Function
A1
GND
Supply voltage (negative pin)
A2
VS
Supply voltage 20 to 30 Vdc (positive pin)
Cable shield A - internally connected by
1 CHASSIS
capacitor to chassis
2 n.c.
Not
connected
Cable shield B - internally connected by
3 CHASSIS
capacitor to chassis
4 n.c.
Not
connected
5 n.c.
Not
connected
6 n.c.
Not
connected
7 VS_I/O
Supply voltage of I/O circuit
8 Lon
A+
Lonworks a line (positive pin)
9 Lon
A-
Lonworks a line (negative pin)
10 Lon
B+
Lonworks b line (positive pin)
11 Lon
B-
Lonworks b line (negative pin)
12 SYS_I/O
System
signal
13 SYS_ENC_I/O System
signal
14 Reserved
Internally
connected
15 Ref_I/O
Reference voltage of I/O circuit
A1
A2
1
15
Female - Output
A1
A2
1
15
Male - Input
17-pin Local Lonworks Connectors
Ethernet Version
An Ethernet connector is used for connection to the remote Host (for ex. Remote PC connected via Internet).
Harting RJ Industrial® Modular Connector
DS8100A
5
HUB / SWITCH
3
4
2
1
6
5
3
4
2
1
6
7
8
7
8
RX+
TX-
TX+
RX-
n. c.
n. c.
n. c.
n. c.
n. c. = not connected
1
8
Harting RJ Industrial Female Connector
