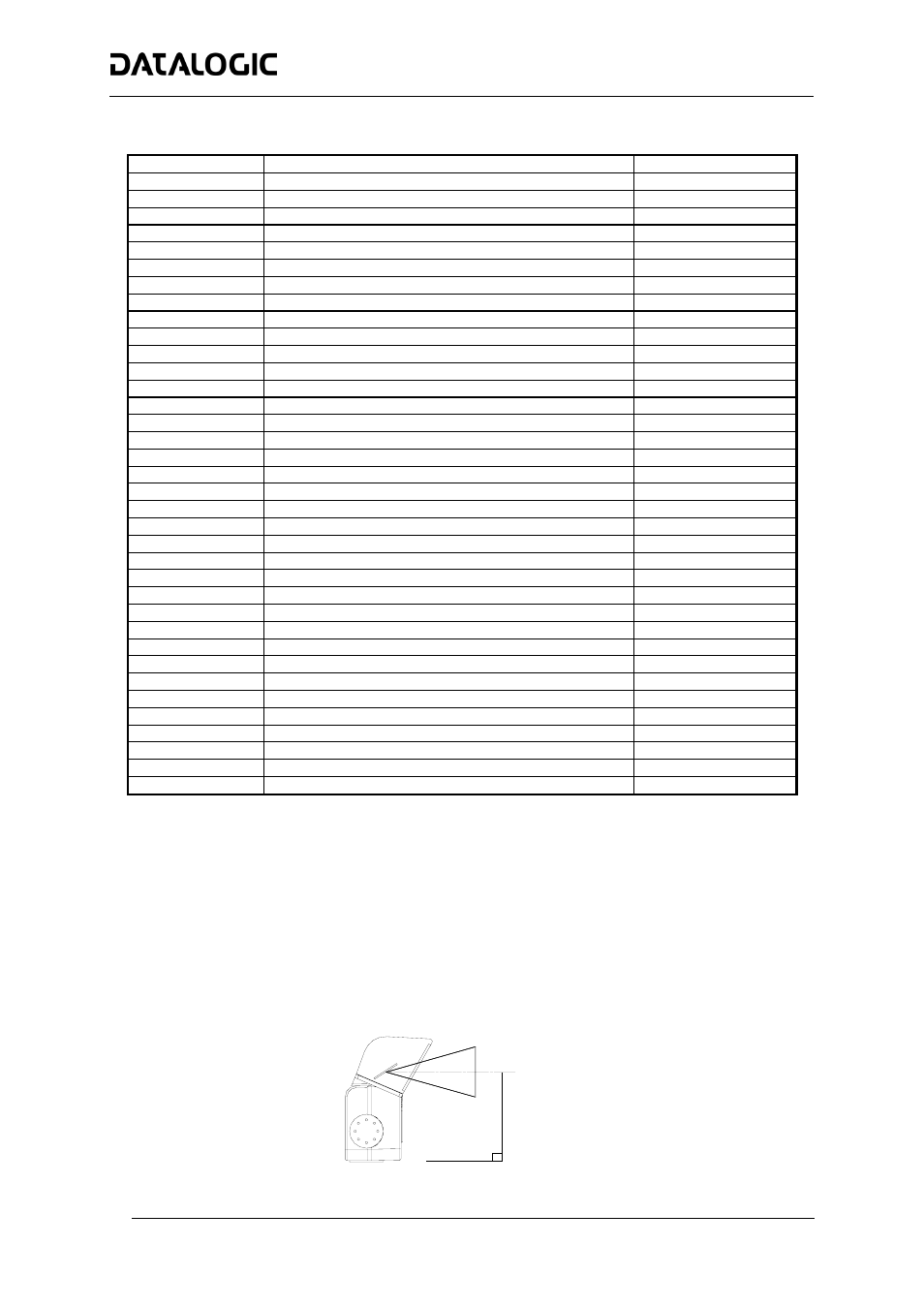

DS8100A QUICK GUIDE
4
Accessories:
NAME Description Part Number
PWR-120 J-box power unit 110/230 VAC 24 V 120 W 93ACC1530
PWR-240 J-box power unit 110/230 VAC 24 V 240 W 93ACC1070
PWR-480 J-box power unit 110/230 VAC 24 V 480 W 93ACC1080
BTK-8100 Bus terminator kit (5 pcs) 93ACC1090
BTK-8102 Double terminator kit (2 pcs) 93A051287
FBK-8100 Fast bracket kit (2 pcs) 93ACC1130
US-8100 Bracket kit (10 pcs) 93ACC1140
US-BOX C-BOX Mounting Bracket to station frame (10 pcs) 93ACC1777
PLL-8000 Optocoupled PLL device 93ACC1280
ACS-81 Air cleaning system 93ACC1430
DF-81 Dust filter (10 pcs) 93ACC1440
FS-1 Frame shaper (8 pcs) 93ACC1750
CAB-8100 10 wire shielded cable D 9.5 mm – 50 m 93ACC1120
CAB-8101 17-pin scanner/scanner connection cable 1.2 m 93A051020
CAB-8102 17-pin scanner/scanner connection cable 2.5 m 93A051030
CAB-8105 17-pin scanner/scanner connection cable 5 m 93A051040
CAB-8305 Power and bus return cable (last Slave) 5 m 93A051268
CAB-8310 Power and bus return cable (last Slave) 10 m 93A051336
CAB-8402 No power cable 2.5 m 93ACC1758
CAB-8405 No power cable 5 m 93ACC1759
CAB-6011 26-pin scanner to C-BOX 100 1 m 93A051221
CAB-6012 26-pin scanner to C-BOX 100 2 m 93A051222
CAB-6015 26-pin scanner to C-BOX 100 5 m 93A051223
CAB-6502 Fam 6K-8K cross cable 2.5 m 93A051288
CAB-6505 Fam 6K-8K cross cable 5 m 93A051289
CAB-8605 Power and Lonworks termination cable (Master) 5 m 93A051290
Sentinel-5 Supervisor (up to 5 arrays) 93A101004
Sentinel-10 Supervisor (up to 10 arrays) 93A101005
Sentinel-32 Supervisor (up to 32 arrays) 93A101007
C-BOX 100 Passive Connection Box 93ACC1510
MEP-542 Photocell kit - PNP 93ACC1727
MEP-543 Photocell kit - NPN 93ACC1728
OEK-2 Optical encoder (10 m cable + spring) 93ACC1770
OEK-1 Optical encoder kit + 10 m cable 93ACC1600
GFC-80 90° mirror 93A251020
GFC-800 90° mirror close distance 93A201103
Oscillating Mirror Models
Oscillating mirror models are used when coverage of a large reading area is required, mainly in picket fence
applications.
The oscillating mirror is placed in front of the reading aperture of the DS8100A scanner to deflect the laser beam.
As the mirror moves, this sweeping function of the laser beam allows the coverage of a larger area to locate the
barcodes.
The aperture angle is symmetrical and the scan line perpendicular to the scanner is at 0° as shown in the figure
below.
0°
+25°
-25°
