DS8100A QUICK GUIDE
21
User Interface:
How To Build A Simple Interface Test Cable:

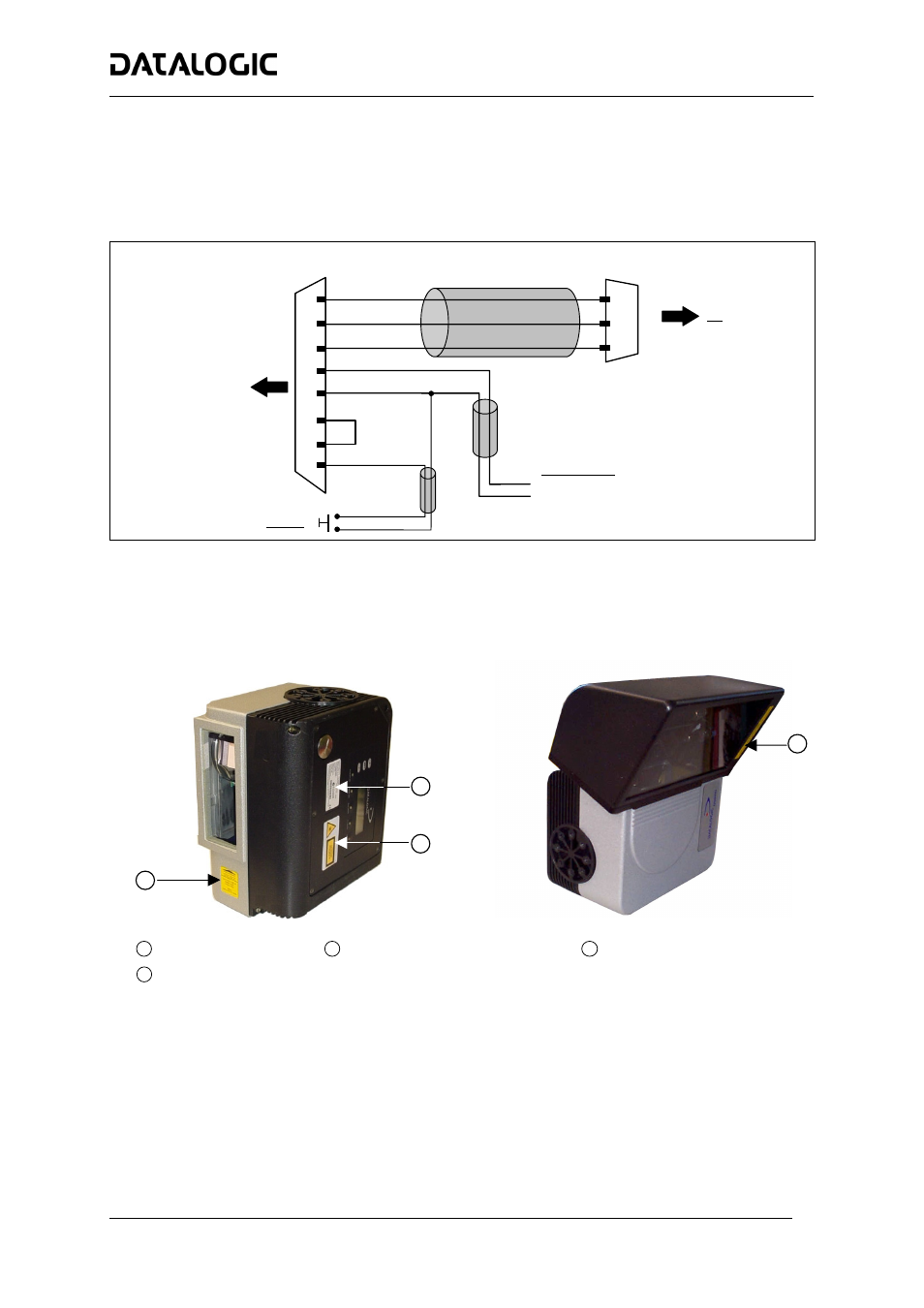

The following wiring diagram shows a simple test cable including power, external (push-button) trigger and PC
RS232 COM port connections.
26-pin D-sub female
23
20
GND
RXAUX
TXAUX 21
DS8100A 25
13
GND
VS
9-pin D-sub female
GND
TX
RX
PC
2
3
5
18
9
EXT TRIG A
VS
Power Supply
VS (20 – 30 VDC)
Power GND
Trigger
EXT TRIG B 19
Compliance:
Laser Safety
Figure A
Laser Safety Label 1
Warning and Device Class Label 2
Identification Label 3
Figure B
Laser Safety Label 1
The scanner is classified as a Class 2 laser product according to EN60825-1 regulations and as a Class II laser
product according to CDRH regulations.
Disconnect the power supply when opening the device during maintenance or installation to avoid exposure to
hazardous laser light.
There is a safety device which allows the laser to be switched on only if the motor is rotating above the threshold
for its correct scanning speed.
The laser beam can be switched off through a software command (see also the Genius™ Help On-Line).
1
1
2
3
