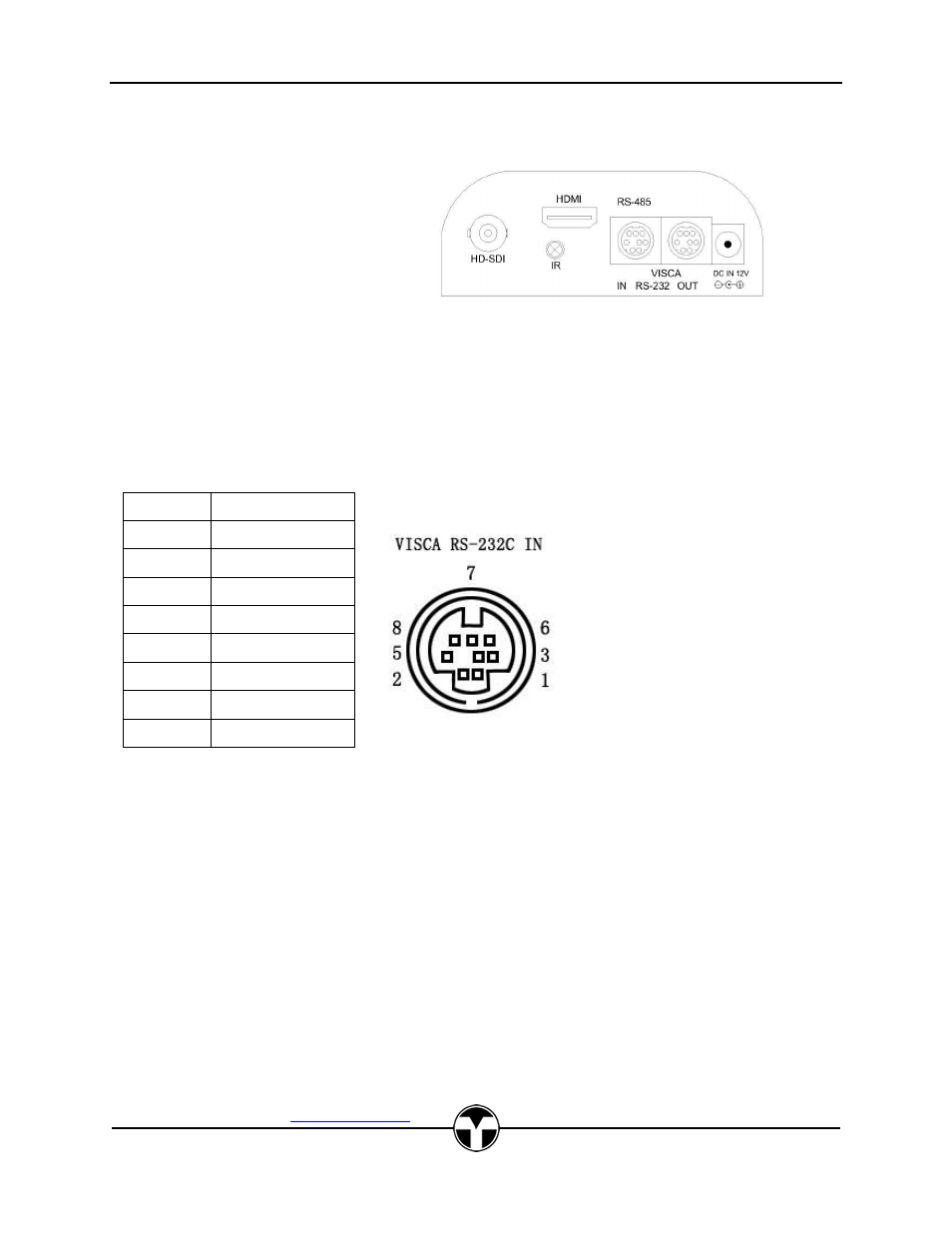

Rear Connectors
HD-SDI
HDMI
IR Receiver
RS-232 In and Out
RS-485 (Input Connector)
12V DC
RS-232 Pin Out
Camera is shipped with a VISCA to DB-9 Female and an RS-485 adapter cable. When connecting the
camera to a control system, use the supplied RS-232 cable and connect to the RS-232 Input
connector. Only the TX, RX, and GND need to be connected.
Input Connector
– Connect to Control System using a straight through DB-9 and supplied
RS-232 Cable.
No
Function
1
DTR IN
2
DSR IN
3
TXD IN
4
GND
5
RXD IN
6
GND
7
NO Connection
8
NO Connection
