TEKVOX 380-HD Camera - Manual (Page 12)

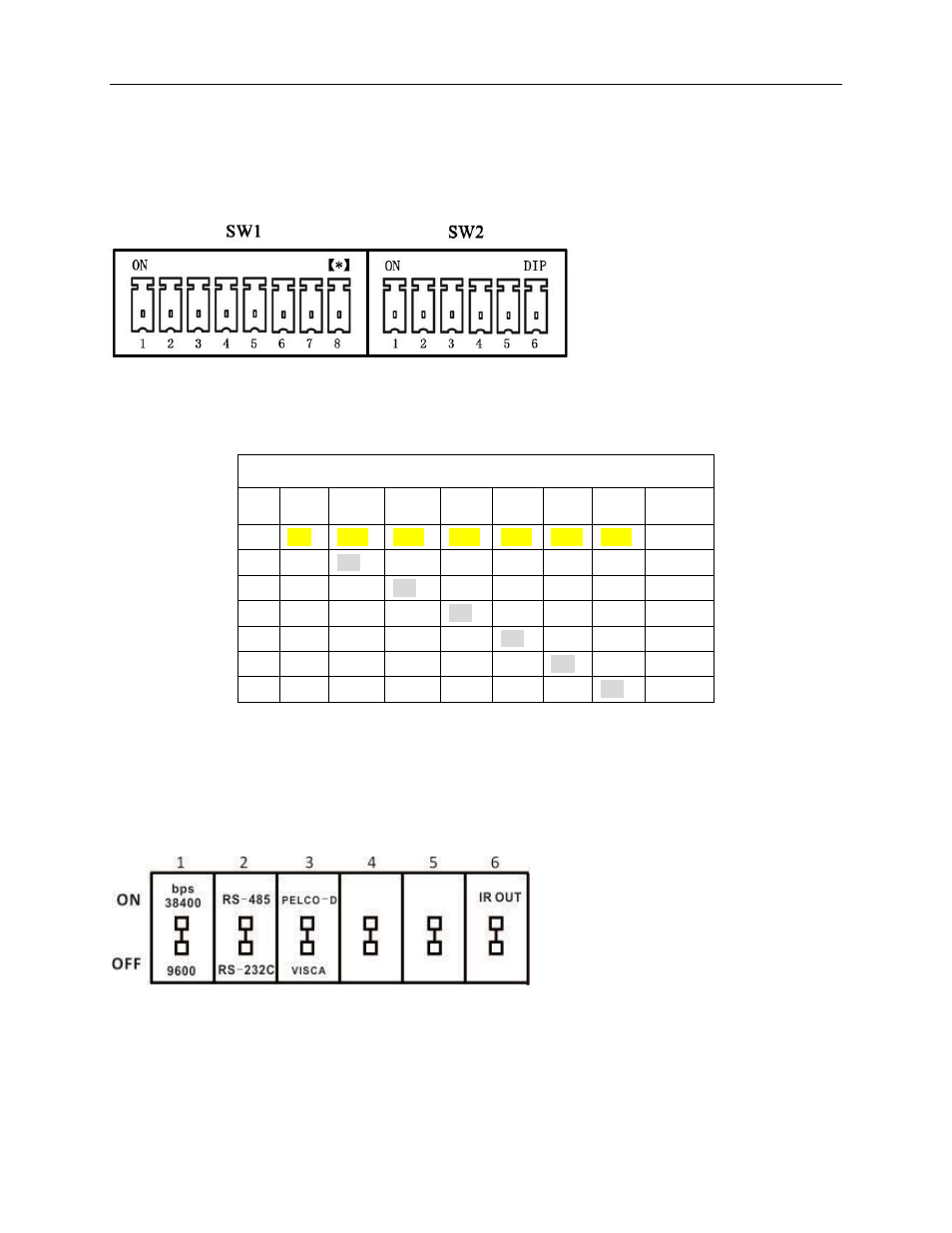

Camera Switch Settings
SW1 Address Setting Table
SW1 Switch code state(1-7 Bit)
DIP-
1 DIP-
2 DIP-
3 DIP-
4 DIP-
5 DIP-
6 DIP-
7
1 ON OFF OFF OFF OFF OFF OFF Default
2 OFF ON OFF OFF OFF OFF OFF
3 OFF OFF ON OFF OFF OFF OFF
4 OFF OFF OFF ON OFF OFF OFF
5 OFF OFF OFF OFF ON OFF OFF
6 OFF OFF OFF OFF OFF ON OFF
7 OFF OFF OFF OFF OFF OFF ON
Notes: PELCO protocol
Broadcast address
If the sent address is 255，any camera can be controlled.
Test Address If the camera address is set to 0, any address code can control the camera.
SW2 Communication Protocol Settings
Default – All Off
Switch 1
– Baud Rate: On 38400 / Off 9600
Switch 2 – Transmission Type: On RS-485 / Off RS-232
Switch 3 – Protocol Type: On PELCO / Off VISCA
Switch 4 – IR Address Select (See Below)
Switch 5 – IR Address Select (See Below)
Switch 6 – IR: On Address Enabled / Off IR Address Disabled
