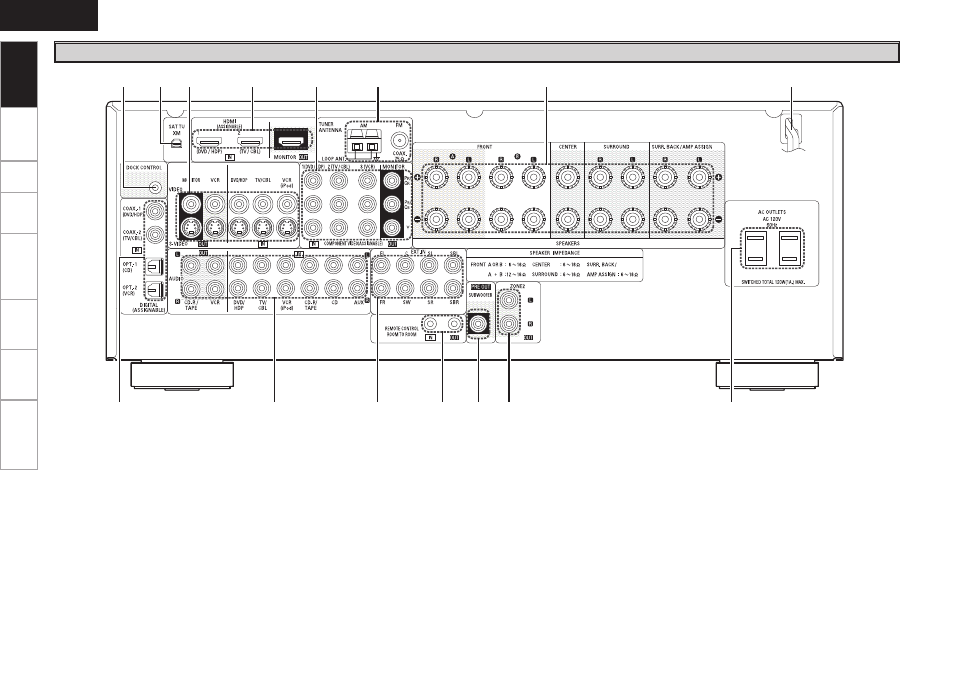

Rear Panel
Get
ting Star
ted
Connections
Set
up
Pla
ybac
k
Remot
e Contr
ol
Multi-Zone
Inf
or
mation
Tr
oubleshooting
q
Digital audio connectors
(OPTICAL / COAXIAL) ························ (11 ~ 13)
w
Analog audio connectors (AUDIO) ·············(11)
e
EXT. IN connectors ····································· (15)
r
REMOTE CONTROL jack ···························· (17)
t
PRE OUT connector ······································ (9)
y
ZONE2 connectors······································ (17)
u
AC OUTLETS ··············································· (17)
i
Power cord ·················································· (17)
o
Speaker terminals (SPEAKERS) ············ (9, 47)
Q0
FM/AM antenna terminals
(TUNER ANTENNA) ···································· (16)
Q1
COMPONENT VIDEO connectors ···············(11)
Q2
HDMI connectors ········································ (10)
Q3
VIDEO / S-VIDEO connectors ·····················(11)
Q4
XM connector (SAT TU) ······························ (15)
Q5
DOCK CONTROL jack ································· (12)
