For buttons not explained here, see the page indicated in parentheses ( ).
w e r y o t
Q4 W3 W2 W4 W1 W0 Q6 Q7 Q8 Q9 Q5
q Q0 Q1 Q2
W5 W6 W7 W8 W9 E2 E3 E4 E0 E1
u i Q3
q Power operation button
(ON/STANDBY) ··········································· (35)
w Power indicator ··········································· (35)
e Power switch (hON jOFF) ··············· (35, 42)
r Headphones jack (PHONES) ······················ (36)
t SPEAKER buttons ································· (36, 42)
y ZONE2 ON/OFF button ······························ (49)
u QUICK SELECT buttons ····························· (42)
i V. AUX INPUT connectors
Remove the cap covering the connectors when
you want to use them.
o SETUP MIC jack ·········································· (19)
Q0 SYSTEM SETUP button ······························ (22)
Q1 SURR. MODE / SURR. PARA button ········· (31)
Q2 SELECT / ENTER knob ······························· (30)
q5
i uy t r
w e
q Signal channel indicator
Lights when the preset channel is displayed at
w .
w Information display
e Input signal indicators
r Master volume indicator
This displays the volume level.
The Setup item number is displayed in System
Setup.
t ZONE2 / REC OUT source indicators
These indicators for the source selected for
ZONE2/REC OUT lights.
y REC indicator
Lights while selecting the REC SELECT mode.
(Off when the “SOURCE” is selected.)
u ZONE2 indicator
This indicator lights when the ZONE2 is turned
on. (Off when the “SOURCE” is selected.)
i Tuner reception mode indicators
These light according to the reception conditions
when the input source is set to “TUNER”.
• AUTO
This lights when in the auto tuning mode.
• STEREO
In the FM mode, this lights when receiving
analog stereo broadcasts.
• TUNED
This lights when the broadcast is properly tuned
in.
Part Names and Functions

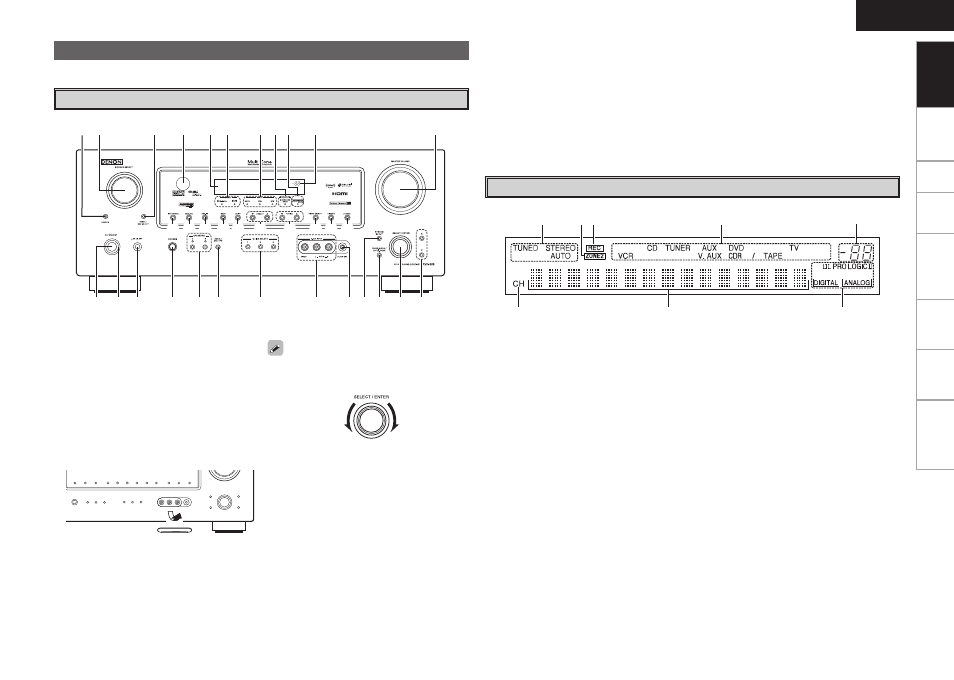

Front Panel
Display
Get
ting Star
ted
Connections
Set
up
Pla
ybac
k
Remot
e Contr
ol
Multi-Zone
Inf
or
mation
Tr
oubleshooting
• The SELECT / ENTER knob on the main unit operates
in the same way as the CURSOR o and p buttons
on the remote control unit.
• The control functions in the same way as the
CURSOR o button when turned counterclockwise,
as the CURSOR p button when turned clockwise.
• The control functions in the same way as the
ENTER button when pressed the knob.
W7 EXT. IN button ············································· (35)
W8 BAND button ··············································· (36)
W9 SHIFT button ··············································· (37)
E0 PRESET CHANNEL buttons ······················· (37)
E1 TUNING buttons ········································· (36)
E2 VIDEO SELECT button ······························· (36)
E3 DIMMER button ·········································· (36)
E4 STATUS button ··········································· (36)
Q3 Cursor buttons (ui) ································· (22)
Q4 MASTER VOLUME control knob ················ (35)
Q5 Master volume indicator
Q6 AUDYSSEY indicator ·································· (33)
Q7 SURROUND BACK indicator
Q8 INPUT mode indicators ······························ (35)
Q9 SIGNAL indicators
W0 Display
W1 Remote control sensor ································· (3)
W2 ZONE2 / REC SELECT button ·············· (41, 49)
W3 SOURCE SELECT knob······························· (35)
W4 SOURCE button ·········································· (35)
W5 INPUT MODE button ·································· (35)
W6 ANALOG button ·········································· (35)
