Page 26: Hdmi
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
12
NDiS B532 User Manual
Chapter 2: Jumpers and Connectors

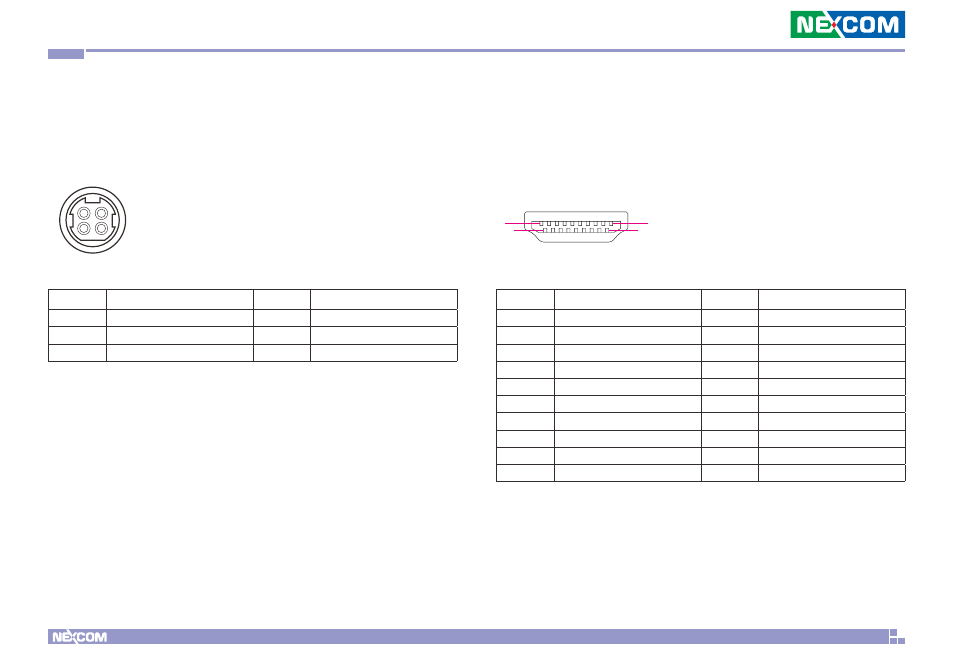

External I/O Interfaces - Rear Panel
DC Jack Connector
Connector location: CN11
Pin
Definition
Pin
Definition
1
12V DC_IN
2
12V DC_IN
3
GND
4
GND
5
GND
HDMI
Connector type: HDMI port
Connector location: CN7, CN8 and CN9
Pin
Definition
Pin
Definition
1
HDMI_D2+
2
GND
3
HDMI_D2-
4
HDMI_D1+
5
GND
6
HDMI_D1-
7
HDMI_D0+
8
GND
9
HDMI_D0-
10
HDMI_CLK+
11
GND
12
HDMI_CLK-
13
NC
14
NC
15
HDMI_DDC_SCL
16
HDMI_DDC_SDA
17
GND
18
VCC5
19
HDMI_HPD
1
1
2
3
4
2
18
19
