Connectors:
＋
:
＋
12VDC
－
: Power Supply Ground
TX1: Channel 1 Fiber Optic
TX2: Channel 2 Fiber Optic
TX3: Channel 3 Fiber Optic
TX4: Channel 4 Fiber Optic
PUSH: A button to read EDID data
LEDs Definition:
POW:
Power Supply.
On if power input is in OK.
STS:
the state of the function to read EDID display mode memory (refer to 2.4)

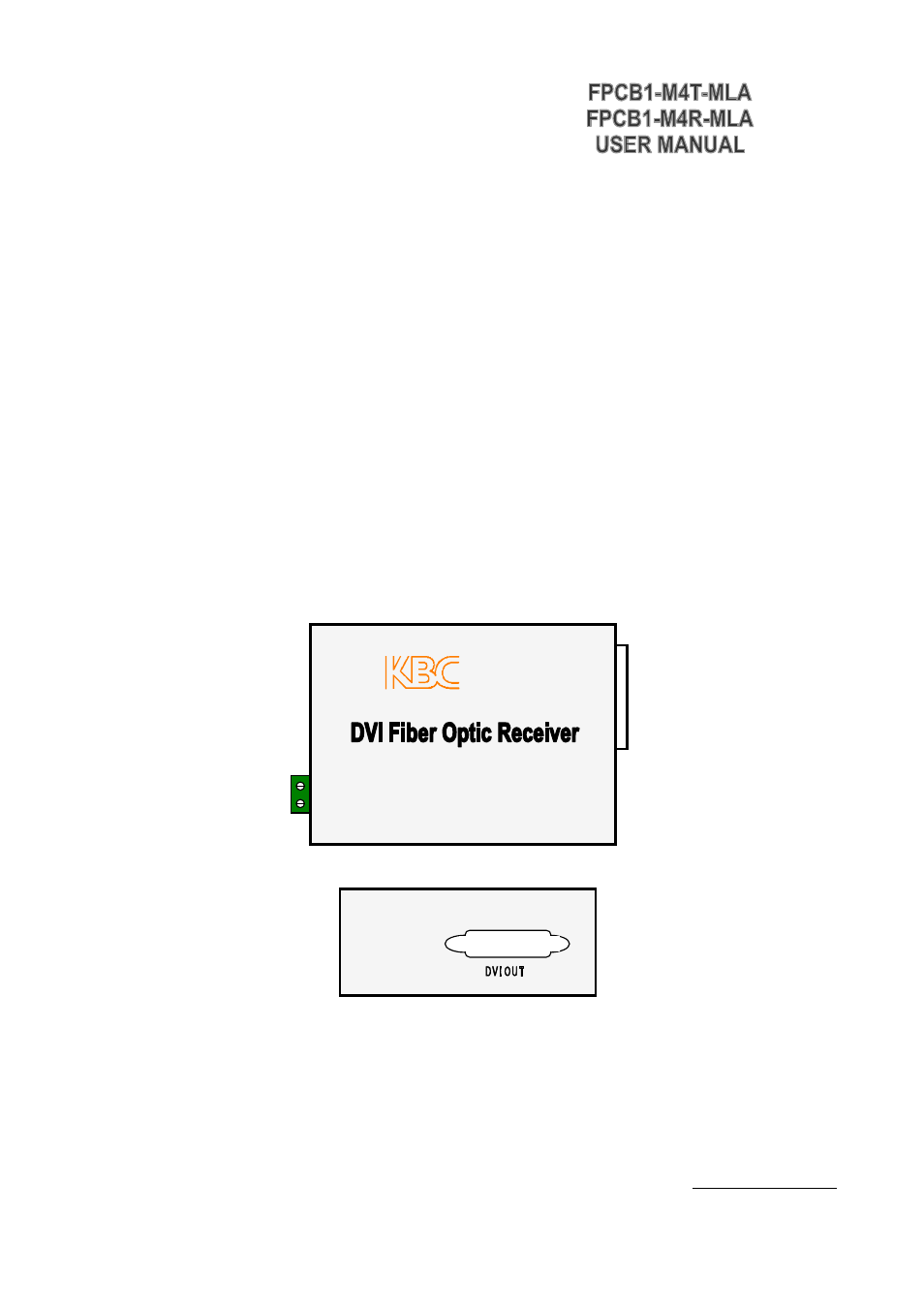

2.3 Receiver Enclosure
Receiver Top View
Receiver Right View
Connectors:
DVI OUT: DVI, output
