MAIntenAnCe
40
WARNING!
Blades are sharp. Protect your hands
with gloves and/or wrap blades with
a heavy cloth when handling.
2
1
3
Blade Replacement
Remove blade bolt by turning counterclockwise. 1.
IMPORTANT INFORMATION
To ensure proper assembly, center hole in
blade must align with star on cutter housing.
IMPORTANT INFORMATION
Special blade bolt is heat treated.
Replace with a Dixon bolt if required.
Do not use lower grade hardware than
specified.

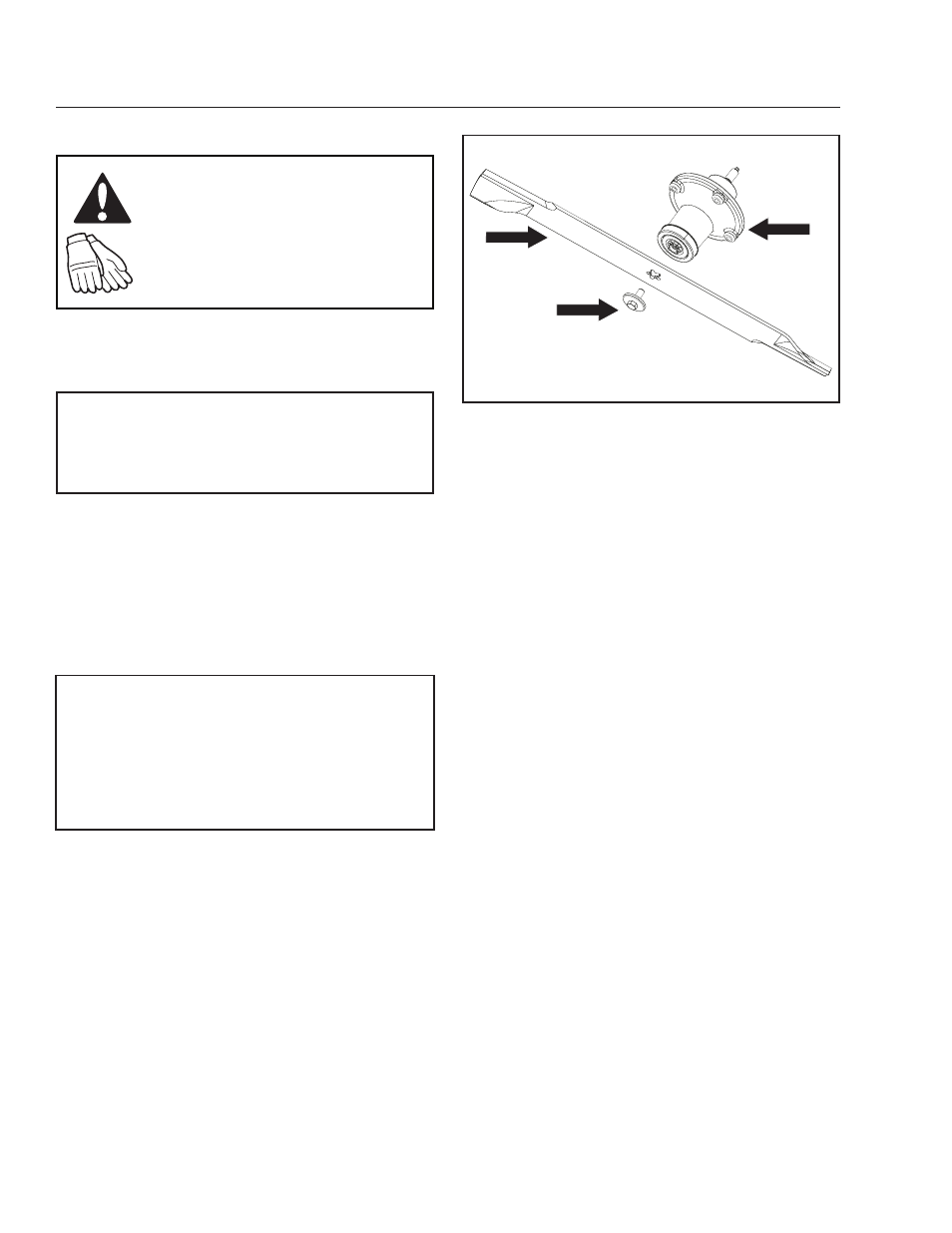

8050-844
Blade 1.
Blade bolt (special) 2.
Cutter housing 3.
Blade attachment
Install new or resharpened blade with stamped 2.
“GRASS SIDE” facing towards ground/grass
(down) or “THIS SIDE UP” facing deck and cutter
housing.
nstall and tighten blade bolt securely.
3.
Torque blade bolt to 45-55 ft/lbs (60-75 Nm). 4.
