This operator’s manual describes the Dixon Zero Turn
Rider. The rider is fitted with a Kohler 25 HP* four-
stroke overhead valve engine. Transmission from the engine is made via belt-driven
hydraulic pumps. Using the left and right steering
controls, the flow is regulated and thereby the
direction and speed.

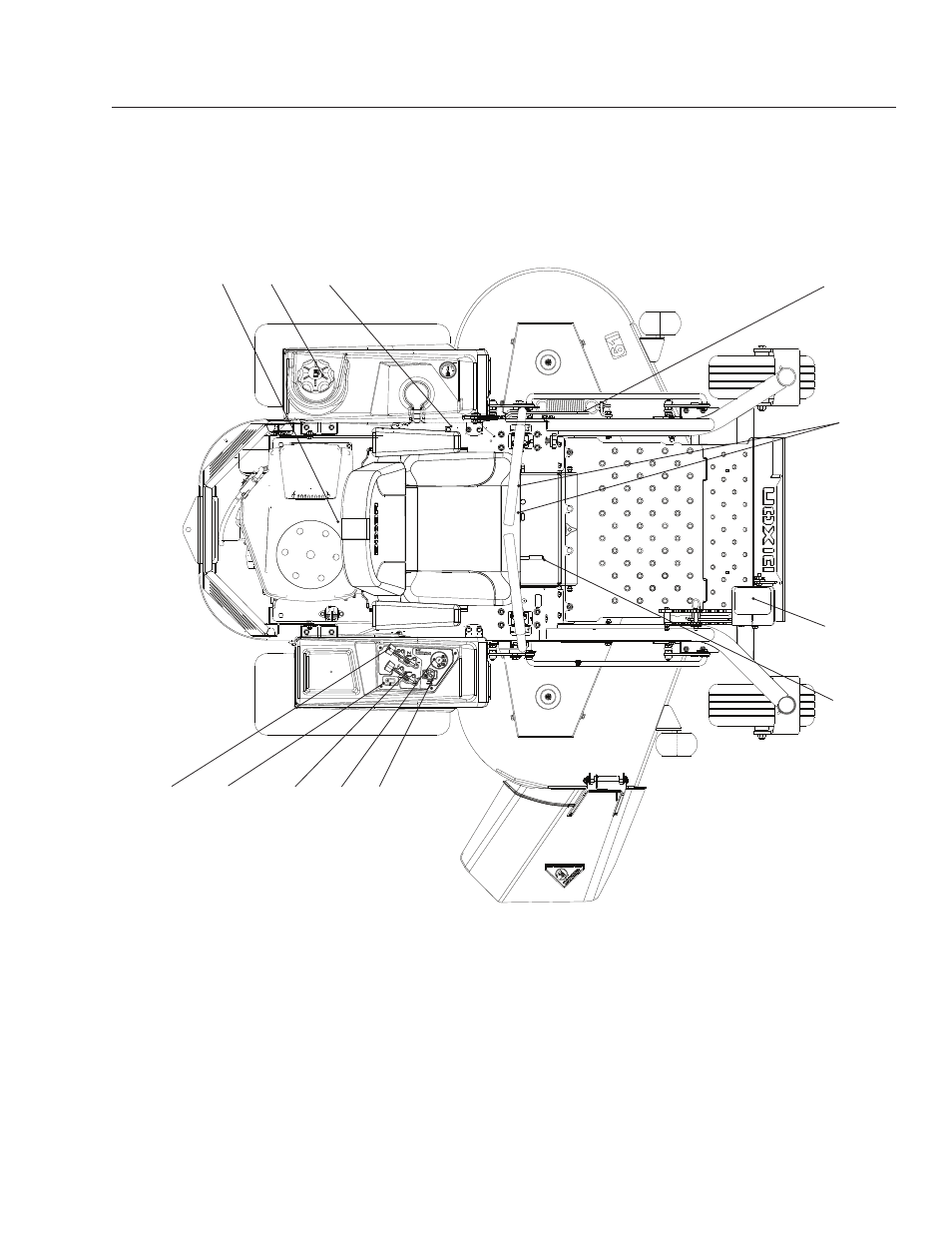

Control Locations
8050-912
*The power rating of the engines indicated is the average
net power output (at specified rpm) of a typical production
engine for the engine model measured to SAE standard
J1349/ISO1585. Mass production engines may differ from
this value. Actual power output for the engine installed
in the final machine will depend on the operating speed,
environmental conditions and other variables.
Motion control levers 1.
Parking brake 2.
Throttle control 3.
Blade switch 4.
Ignition switch 5.
Choke control 6.
Fuses 7.
Fuel tank cap 8.
Fuel shut off valve 9.
Deck lift 10.
Seat adjustment lever 11.
Hour meter 12.
1
2
6
10
9 8
4 5 12
7
3
11
