4. Operation
When you scroll
through the
menu options,
you will see
many of them that do not
correspond with the menu
map. Skip them, as they
do not work with the
RGBWA only output
products.

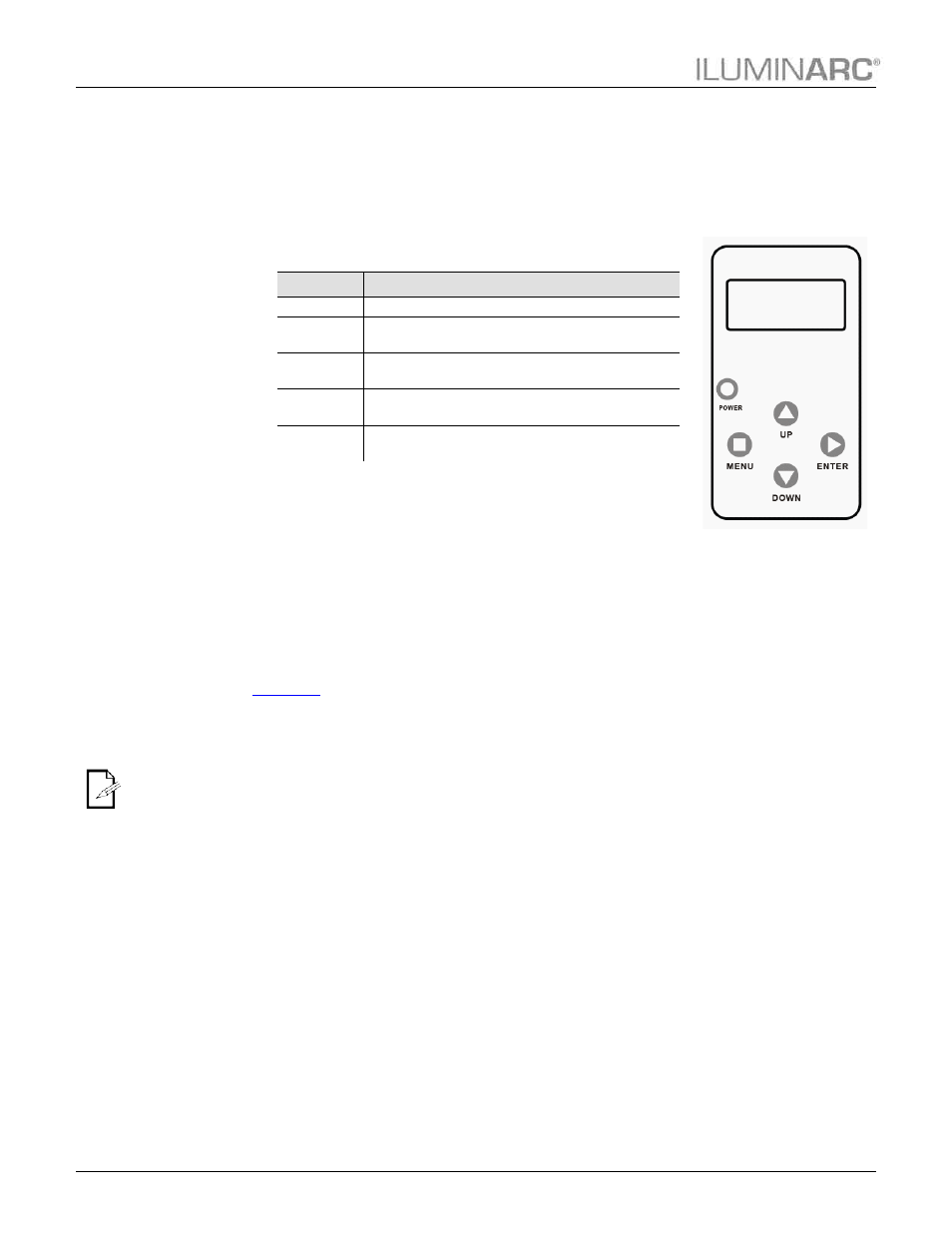

Ilumicode
The Ilumipanel 180 IP Optic 15/30 RGBWA needs an external controller, the Ilumicode
addresser, to change its configuration.
Ilumicode Panel Description
Control Options
You can set the Ilumipanel 180 IP Optic 15/30 RGBWA start address in the 001~512 DMX
range. This allows for the control of up to 51 products in the 10-channel Special 1 personality.
Programming
Carry out all the programming procedures indicated below from the control panel. Refer to the
section to learn how the menu options relate to each other.
Use
right and left respectively. Use
options.
DMX Personality
1. Go to PERS and select any DMX personality.
2. Make sure to rearrange the DMX addresses of all products in the current DMX
universe to avoid address overlapping.
DMX Starting Address
1. Go to DMX.
2. Select a starting DMX address (001~512).
Button
Function
Exits from the current menu or function
Enables the currently displayed menu or sets the
currently selected value into the selected function
Navigates upwards through the menu list and increases
the numeric value when in a function
Navigates downwards through the menu list and
decreases the numeric value when in a function
Turns the unit on. The unit will turn off automatically
after 30 seconds of inactivity.
