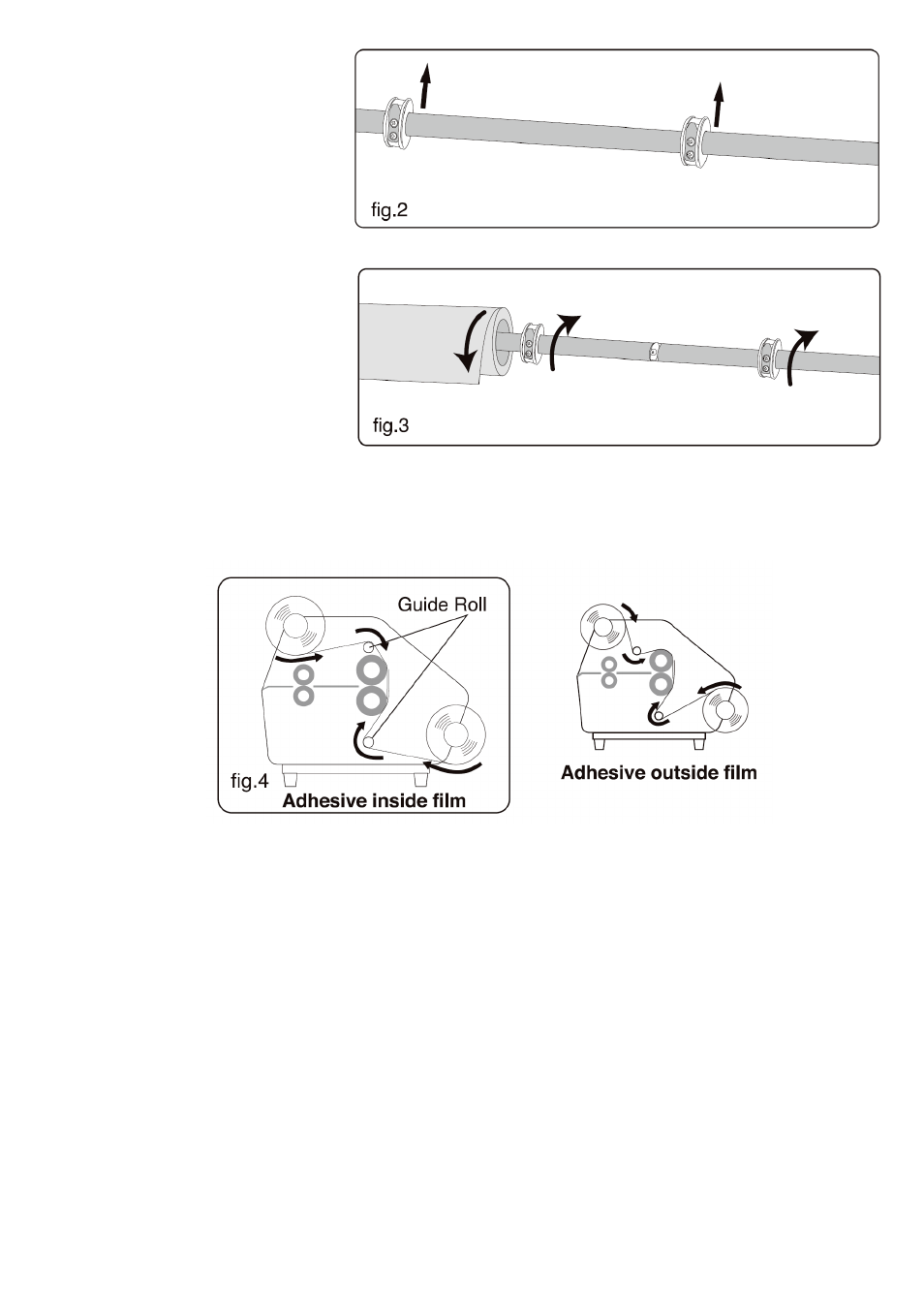

3) Install the proper mandrel adaptors
on the mandrels. Check that the
direction of the hooks are pointing in
the same direction. (fig.2)
4) Mandrels are preassembled with the
mandrel adaptors for a 2-1/4 inch
paper core. When you use roll film with
a 3 inch paper core, replace the
mandrel adaptors accordingly. (fig 3)
(*LPP6512 also accepts a 1 inch paper
core.)
* The adhesive tape used at the edge
of the roll film should be removed
before use, otherwise it may stick to
rollers of the machine.
5) Insert the Mandrel into the film roll.
Be sure the direction of the hook is
pointed in the reverse direction of the film rotation. Place Upper and Lower Mandrels on the machine. (fig.4)
* Twisting mandrel slightly in the direction of film rotation will help to shift it within the roll.
